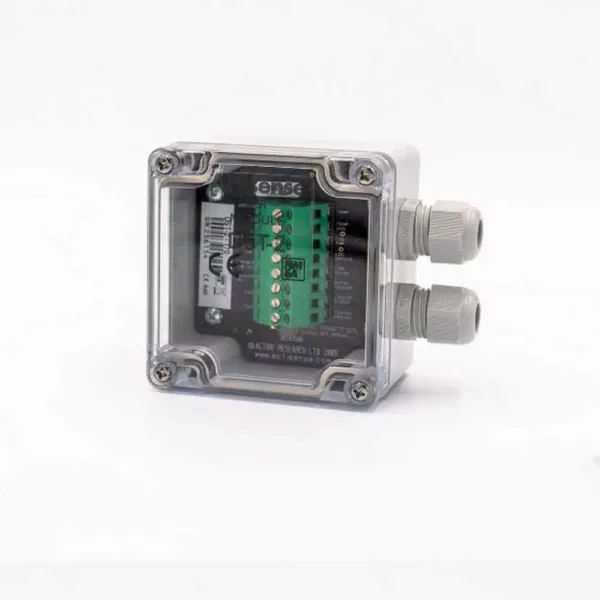

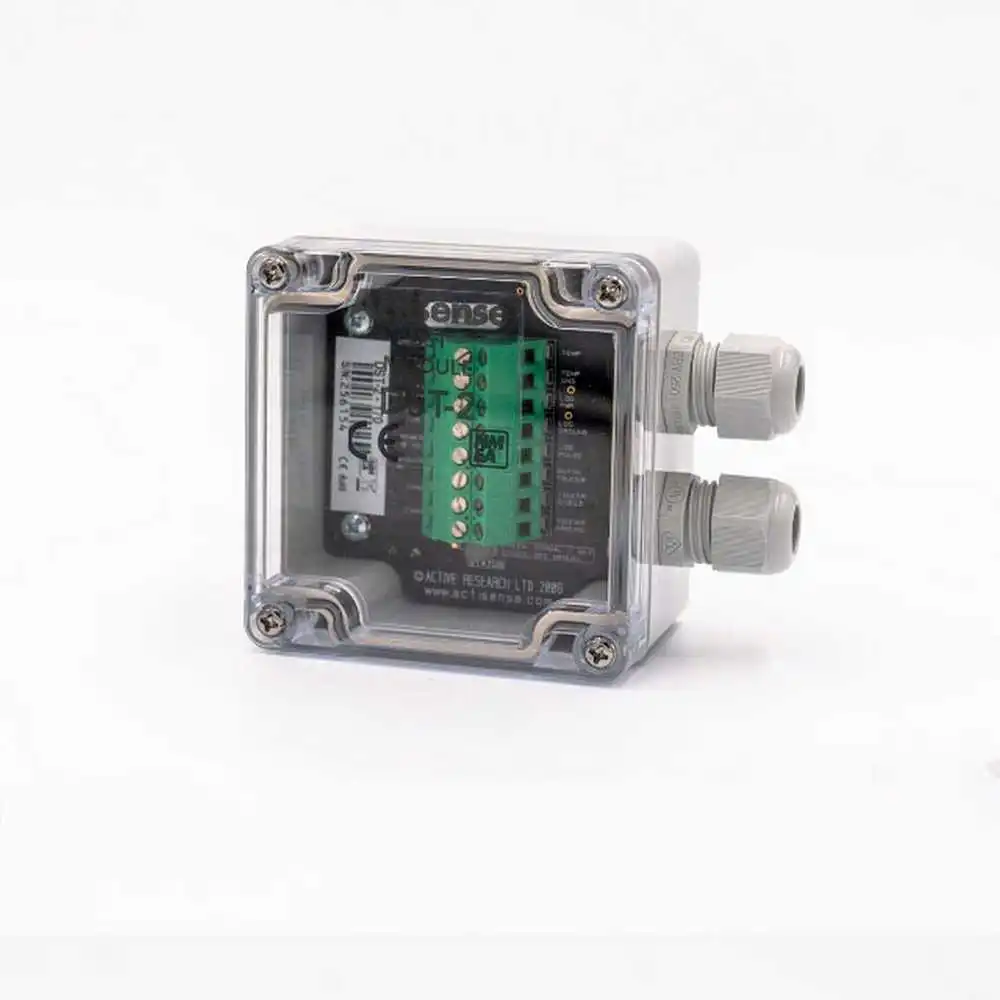

A-DST-2-150 Analogue to NMEA0183 converter

$335.00

Analogue to NMEA0183 converter for 150 kHz transducers

It works with NMEA 0183 compatible devices, such as chart plotters, radars, or an on-board PC. In addition, it can be calibrated via a PC to match various sensors and installations.

Using a DST with an existing depth transducer can be much more cost-effective than having to lift the boat out of the water to change the transducer skin fitting. Not only does this save money, but it also saves you time.

In stock

Range of transducer frequencies available
Flash upgradable ‘future proof’ design
Generates the echo sounders ‘ping’ and analyses the returned signal
Digitises analogue signals into NMEA 0183 data

Benefits

Use with most NMEA 0183 displays
Can be calibrated
Trip data available with speed transducers
Designed to replace outdated stand-alone echo sounders
General survey firmware available

Electrical:
- Supply Voltage: 10V to 28V
- Supply Current: 30-40mA @ 12V or 24V
NMEA Input/Output:
- Input Voltage Tolerance: Continuous operation -15V to +15V
- Differential Input Voltage: Required level for data to be detected 2V
- Output Current: RS485 / RS422 compatible, up to 10mA
- Baud Rate: 4800bps
- Data Output Rate: 1 second
Depth:
- Range (Narrow Beam): Airmar P66, P79, <10 knots, ideal conditions: 0.3m to 200m
- Range (Wide Beam): Airmar DT800, <10 knots, ideal conditions: 0.5m to 150m
- Range (Narrow Beam): Airmar P66, P79, 10-40 knots, ideal conditions: 0.3m to 100m
- Range (Wide Beam): Airmar DT800, 10-40 knots, ideal conditions: 0.5m to 100m
Speed:
- Range: Airmar P66, DST800, calibrated 5 Hz/knot: 0.5 knots to 50 knots
Temperature:
- Range: Airmar, calibrated 10k @ 25°C: -10°C to 50°C
General:
- Gland Clamping Range: Cable diameters accommodated 4.5mm to 10mm
- Ambient Temperature: -20°C to 70°C
