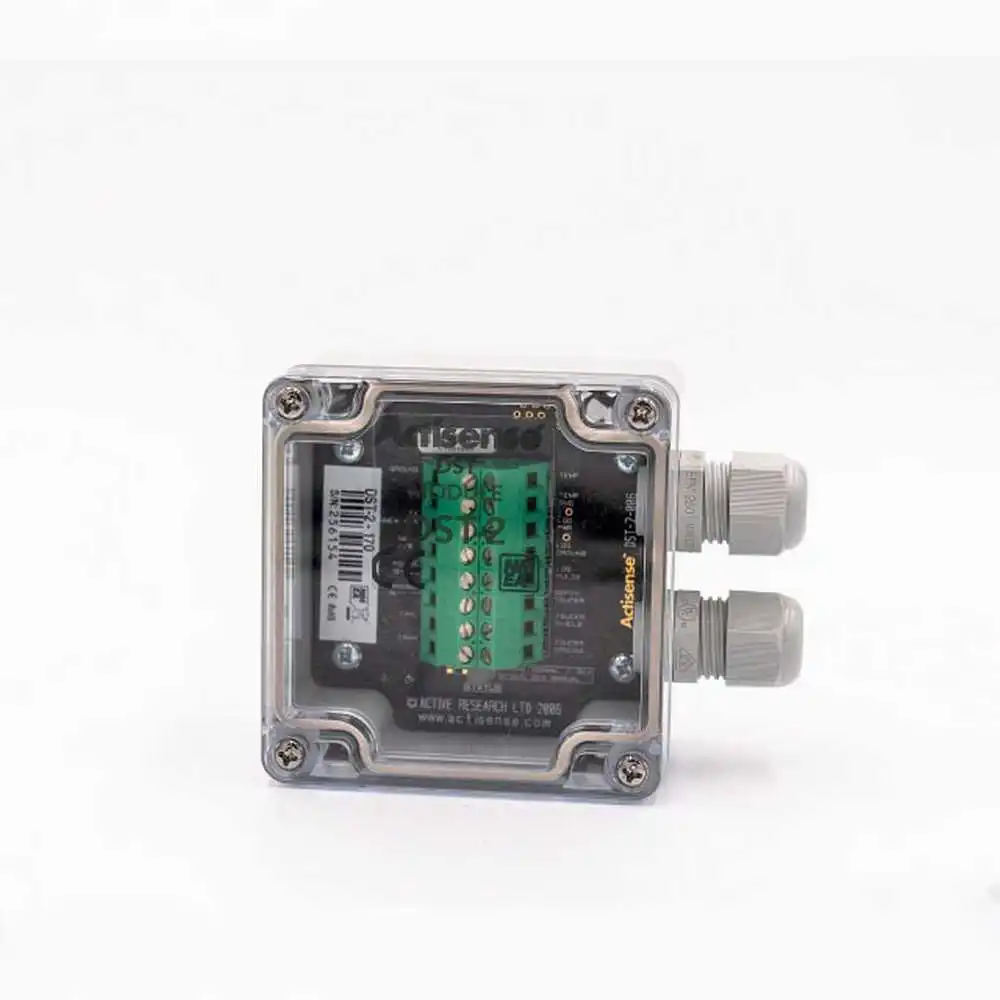

A-DST-2-170 Analogue to NMEA0183 converter

$335.00

Analogue to NMEA0183 converter for 170 kHz transducers

It works with NMEA 0183 compatible devices, such as chart plotters, radars, or an on-board PC. In addition, it can be calibrated via a PC to match various sensors and installations.

Using a DST with an existing depth transducer can be much more cost-effective than having to lift the boat out of the water to change the transducer skin fitting. Not only does this save money, but it also saves you time.

In stock

Range of transducer frequencies available
Flash upgradable ‘future proof’ design
Generates the echo sounders ‘ping’ and analyses the returned signal
Digitises analogue signals into NMEA 0183 data

Benefits:

Use with most NMEA 0183 displays
Can be calibrated
Trip data available with speed transducers
Designed to replace outdated stand-alone echo sounders
General survey firmware available

Power Supply: 10–28 V
Supply Current: 30–40 mA at 12 V or 24 V
Input Voltage Tolerance: -15 to +15 V continuous
Output Current: RS485/RS422 compatible, up to 10 mA
Baud Rate: 4800 bps
Depth Range:
- Narrow Beam: Airmar P66, P79, <10 knots: 0.3–200 metres
- Wide Beam: Airmar DT800, <10 knots: 0.5–150 metres
- Narrow Beam: Airmar P66, P79, 10–40 knots: 0.3–100 metres
- Wide Beam: Airmar DT800, 10–40 knots: 0.5–100 metres
Speed Range: Airmar P66, DST800: 0.5–50 knots
Temperature Range: Airmar calibrated: -10 to +50 °C
General:
- Gland Clamping Range: 4.5–10 mm cable diameter
- Ambient Temperature: -20 to +70 °C
