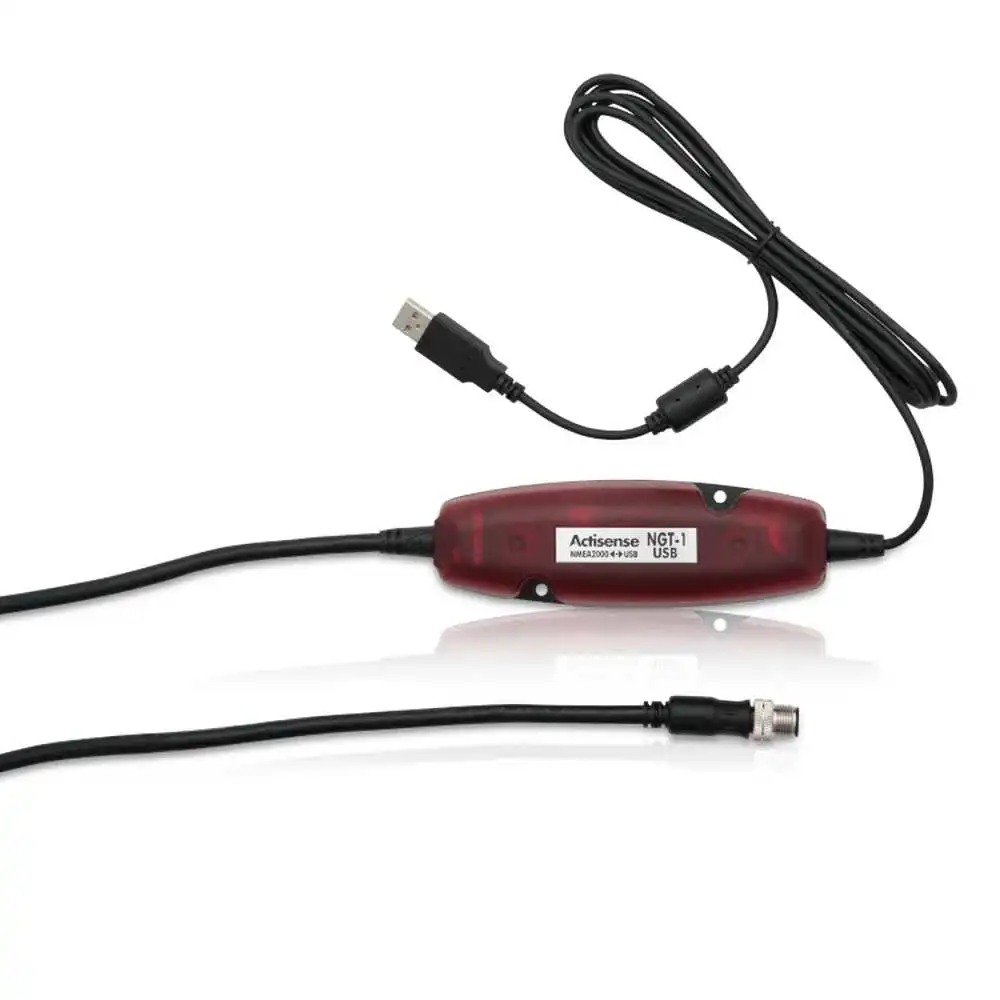

A-NGT-1-USB NMEA 2000 PC Interface

A-NGT-1-USB NMEA 2000 PC Interface

ACTISENSE

$275.00

A-NGT-1-USB NMEA 2000 PC Interface, standard version with USB

The handy firewall feature enforces the NMEA 2000 bus rules, so software developers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.

With the upcoming ‘Third Party Gateway’ status, leading chart plotter software will be able to be certified to work with the NGT-1.

Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGT-1 into their software.

The NGT-1 is available in two versions:

  • NGT-1-USB: Standard option – USB interface for bi-directional connection to a PC.
  • NGT-1-ISO: Opto-isolated interface for specialised installations.

In stock

Category: Brand:
  • Vital NMEA 2000 diagnostic tool
  • USB version is fully isolated to prevent dangerous ground loops
  • ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
  • Up to 230,400 baud data transfer rate
  • Integrated 1.5m drop cable
  • Diagnostic receive LEDs
  • Benefits:
    • Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
    • Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
    • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
    • Configure and flash-update Actisense products on the bus
    • Power Supply:
      • ISO Variant: 9.5 to 35V DC (NMEA 2000 Port)
      • USB Variant: 9 to 29V DC (NMEA 2000 Port)
    • Supply Current:
      • NMEA 2000 Port: 35mA @ 12V DC, Max 50mA
      • USB Host Port: 85mA @ 5V DC
    • Load Equivalent Number (LEN): 1
    • NMEA 2000 Port: Fully NMEA 2000 certified
    • Galvanic Isolation: Refer to ‘ISO port’ or ‘USB port’
    • Speed / Baud Rate: 250kbps
    • Connectivity: M12 Male (A polarised) connector moulded on cable
    • Cable Length:
      • NMEA 2000: 1.5m
      • STNG Adapter: 0.4m (1.9m with NMEA 2000 cable connected)
    • ISO Port (NGT-1-ISO):
      • Compatibility: Fully RS232 & RS422 compatible
      • Galvanic Isolation: 2500V input to ground, 1500V output to ground using ISO-Drive
      • Speed / Baud Rate: 4800 to 115200 Baud
      • Output Voltage Drive: >= 2.1V (differential) into 100Ω
      • Output Current Drive: 20mA max
      • Output Protection: Short circuit and ESD
      • Input Voltage Tolerance: -15V to +15V continuous, -35V to +35V short term (< 1 second)
      • Input Protection: Current limited and overdrive protection to 40VDC
    • USB Port (NGT-1-USB):
      • Compatibility: USB 1.1, 2.0, and 3.0
      • Galvanic Isolation: 2500V input to ground
      • Speed / Baud Rate: 4800 to 230400 Baud
      • Connectivity: Male type A plug moulded onto cable
      • Cable Length: 1.5m
    • Drivers:
      • Latest OS: Windows XP, Vista, 7, 8, 10 & MAC OS X (supplied on CD or available online)
      • Legacy OS: Contact Actisense for supported versions
    • Mechanical:
      • Housing Material Lid: Polycarbonate
      • Housing Material Base: Flame retardant ABS
      • Weight:
        • NGT-1-ISO: 220g
        • NGT-1-USB: 210g
        • STNG Adapter: 40g
    • Approvals and Certifications:
      • Fully NMEA 2000 Certified
      • Meets all IEC 61162-3 requirements
      • EMC: IEC 60945 (sections 9, 10 & 11.2)
      • Environmental Protection: IP54
    • Temperature Range:
      • Operating: -20°C to +55°C
      • Storage: -30°C to +70°C
    • Recommended Humidity: 0 – 93% RH
