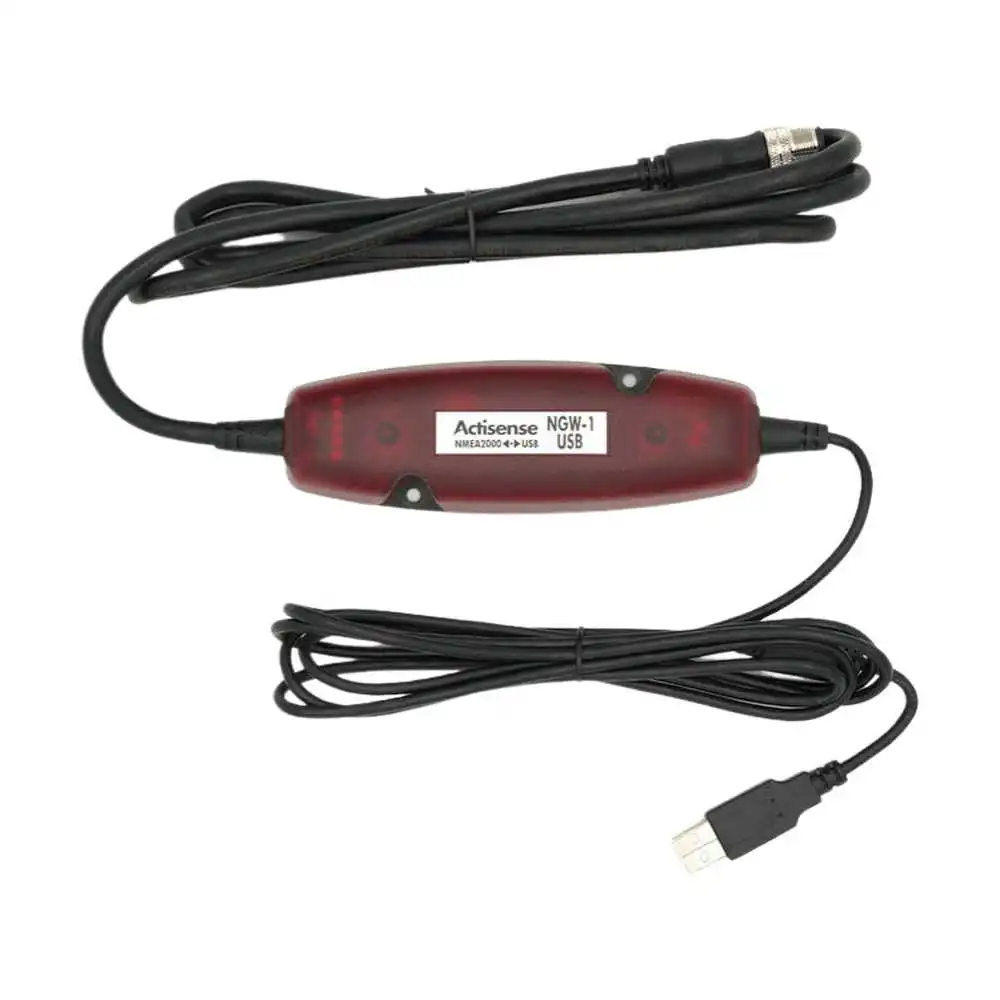

A-NGW-1-USB NMEA 0183 to NMEA 2000 Gateway, with USB

$275.00

Bridge an NMEA 2000 network with your old 0183 electronics using the NGW-1.

The NGW-1 has the largest range of conversions available on the market. To see a full up-to-date list of the conversions the various configurations can handle, please click here.

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

NGW-1-USB is the NMEA 0183 USB (1.1 and 2.0) interface for bi-directional connection to a PC for use with NMEA 0183 software.

In stock

Fully isolated NMEA 0183 incorporating ISO-Drive™ technology
Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
Supports Fast Heading at 10Hz
Up to 230,400 baud data transfer rate
Integrated 1.5m drop cable
Diagnostic receive LEDs
Upgrade NMEA 0183 equipment to NMEA 2000
Allow NMEA 0183 devices to receive vital NMEA 2000 data
Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
Reliable, renowned bi-directional conversion engine
Supports a wide range of conversions including AIS
Easily configurable using Actisense Toolkit

Power Supply (ISO, ISO-AIS & STNG Variants): 9.5 to 35V DC
Supply Current (NMEA 2000 Port): 35mA @ 12V DC, Max 50mA
Load Equivalent Number (LEN): 1
NMEA 2000 Port Compatibility: Fully NMEA 2000 certified
Speed / Baud Rate: 250kbps
Connectivity: M12 Male (A polarised) connector moulded on cable
ISO Port Compatibility: Full NMEA 0183, RS232 & RS422 compatible. RS485 Listener compatible
ISO Port Speed/Baud Rate: 4800 to 115200 Baud
Output Voltage Drive: >= 2.1V (differential) into 100Ω
USB Compatibility: USB 1.1, 2.0 and 3.0
Drivers: Windows XP, Vista, 7, 8, 10, 11 & MAC OS X
Environmental Protection: IP54
Operating Temperature: -20°C to +55°C
Storage Temperature: -30°C to +70°C
