A-NGX-1-USB NMEA2000/NMEA0183 converter

$275.00

The handy firewall feature enforces the NMEA 2000 bus rules, allowing software developers to create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time. Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGX-1 into their software.

Bridge an NMEA 2000 network with your older NMEA 0183 electronics using the NGX-1. The NGX-1 offers the largest range of conversions available on the market. For a full, up-to-date list of the conversions the various configurations can handle, please click here.

The NGX-1 is available in two versions:

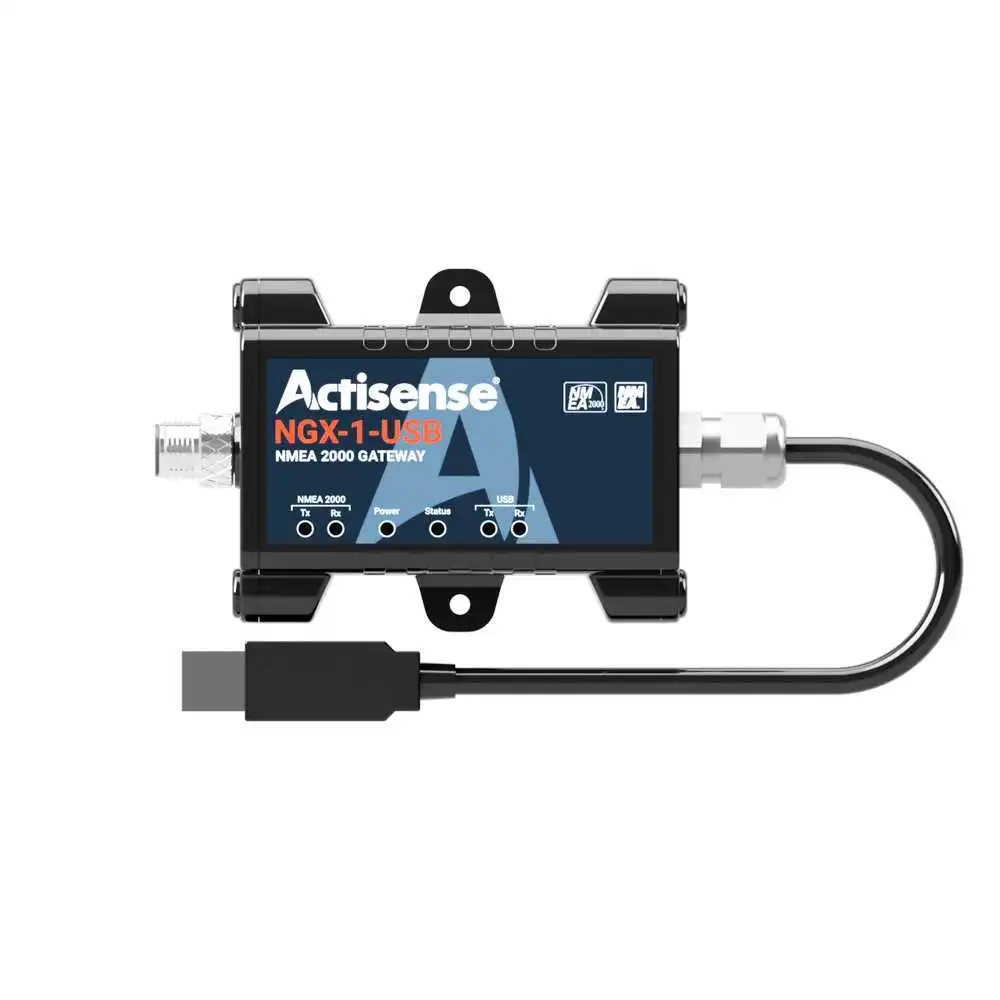

NGX-1-USB: Equipped with a USB cable to allow Plug and Play connectivity with a PC.
NGX-1-ISO: Provides an opto-isolated interface for specialised installations.

In stock

Features:

Vital NMEA 2000 diagnostic tool
USB version is fully isolated to prevent dangerous ground loops
ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
Up to 230,400 baud data transfer rate
Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
Supports Fast Heading at 10Hz
Multiple diagnostic LEDs

Benefits:

Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
Configure and flash-update Actisense products on the bus
Upgrade NMEA 0183 equipment to NMEA 2000
Allow NMEA 0183 devices to receive vital NMEA 2000 data
Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
Reliable, renowned bi-directional conversion engine
Supports a wide range of conversions including AIS
Easily configurable using Actisense Toolkit

Power Supply:

Supply Voltage (NMEA 2000 Port): 9 to 30V DC
Supply Current (NMEA 2000 Port): 62mA @ 9V DC
Load Equivalent Number (LEN): 2
Supply Voltage (USB Host Port): 9 to 30V DC
Supply Current (USB Host Port): 10mA @ 5V DC

NMEA 2000 Port:

Speed / Baud Rate: 250kbps
Connectivity: M12 Male (A coded)

ISO Port (NGX-1-ISO):

Compatibility: Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible
Speed / Baud Rate: 4800 to 230400 Baud
Output Voltage Drive: >= 2.1V (differential) into 100Ω
Output Current Drive: 20mA max.
Output Protection: Short circuit and ESD
Input Voltage Tolerance: -15V to +15V continuous, -35V to +35V short term (< 1 second)
Input Protection: Current limited and overdrive protection to 40VDC
Connectivity: 5mm stripped and tinned wire
Cable Length: 0.75m

USB Port (NGX-1-USB):

Compatibility: USB 1.1, 2.0 and 3.0
Speed / Baud Rate: 4800 to 230400 Baud
Connectivity: Male type A plug moulded onto cable
Cable Length: 1.8m

Isolation:

NMEA 2000 Port to ISO Port: Uses IsoDriveTM, Hi-Pot tested to 1000V
NMEA 2000 Port to USB Port: Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical:

Housing Material Body: Flame retardant Polycarbonate
Housing Material End Caps: Flame retardant PBT
Weight NGX-1-ISO: 112g
Weight NGX-1-USB: 113g

Approvals and Certifications:

NMEA 2000: NMEA 2000 Certified
NMEA 0183: Meets IEC 61162-1 & 61162-2 Requirements
RoHS and REACH: Compliant
Module Certification: KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE
EMC: EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
Environmental Protection: IP68
