- High quality NMEA 2000 barrier strip connections
- Diagnostic LEDs
- Uses standard ATO fuses
- One unit provides six NMEA 2000 drops
- Power feed is split to enable longer networks
- Separate fusing for split power feed provides an easy way to isolate network segments
- Simple installation on Mini and Micro networks using bulk cable
- Easy to mix & match NMEA 2000 with Raymarine STNG on opposite sides

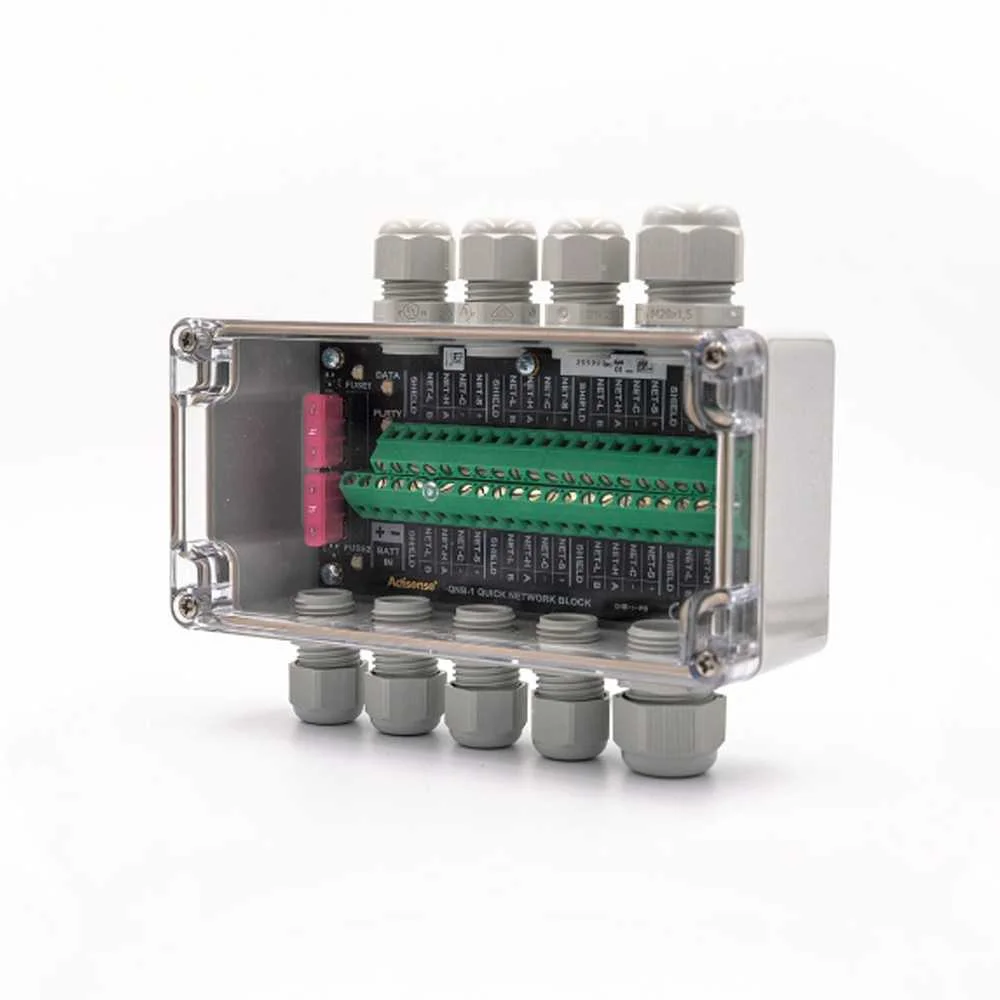

A-QNB-1 NMEA 2000 Network block, 6 screw terminal drops, power feed
$205.00
The QNB-1 version is fitted with glands to allow for installation of custom lengths of cable. This is a great option for ‘mix & matching’ standard NMEA 2000 devices with Raymarine STNG devices.
The LEDs provide information for the installer during setup and indicate the presence of data, power status, power reversal, and to show whether the fuses are intact.
In stock
- Supply Voltage: 10-35V DC
- Supply Current (no load, 12/24V): 10mA
- Micro Cable Fused Protection: 8A
- Mini Cable Fused Protection: 16A
- Power Polarity LED: Red = Incorrect, Green = Correct
- QNB-1-PMW Drop Connections: M12 Female (A-Coded) connector
- QNB-1-GLA NMEA 2000 Connector: 5-way Screw Terminal, 5.08mm Screw Pitch
- M20 Gland Clamping Range: 6 – 12 mm
- Data LED: Flashes when data is detected on network
- Housing Material: Polycarbonate – Light Grey
- Lid Material: Polycarbonate – Clear
- Gasket Material: EPDM Synthetic Rubber
- M16 Gland Clamping Range: 4.5 – 10 mm
- Dimensions: 160mm (L) x 132.4mm (W) x 80mm (H)
- Weight (PMW Variant): 440g
- Weight (GLA Variant): 360g
- Operating Temperature: -20 – +55 °C
- Storage Temperature: -30 – +70 °C
- Humidity: 93% @ 40°C
- IP Rating: IP66
