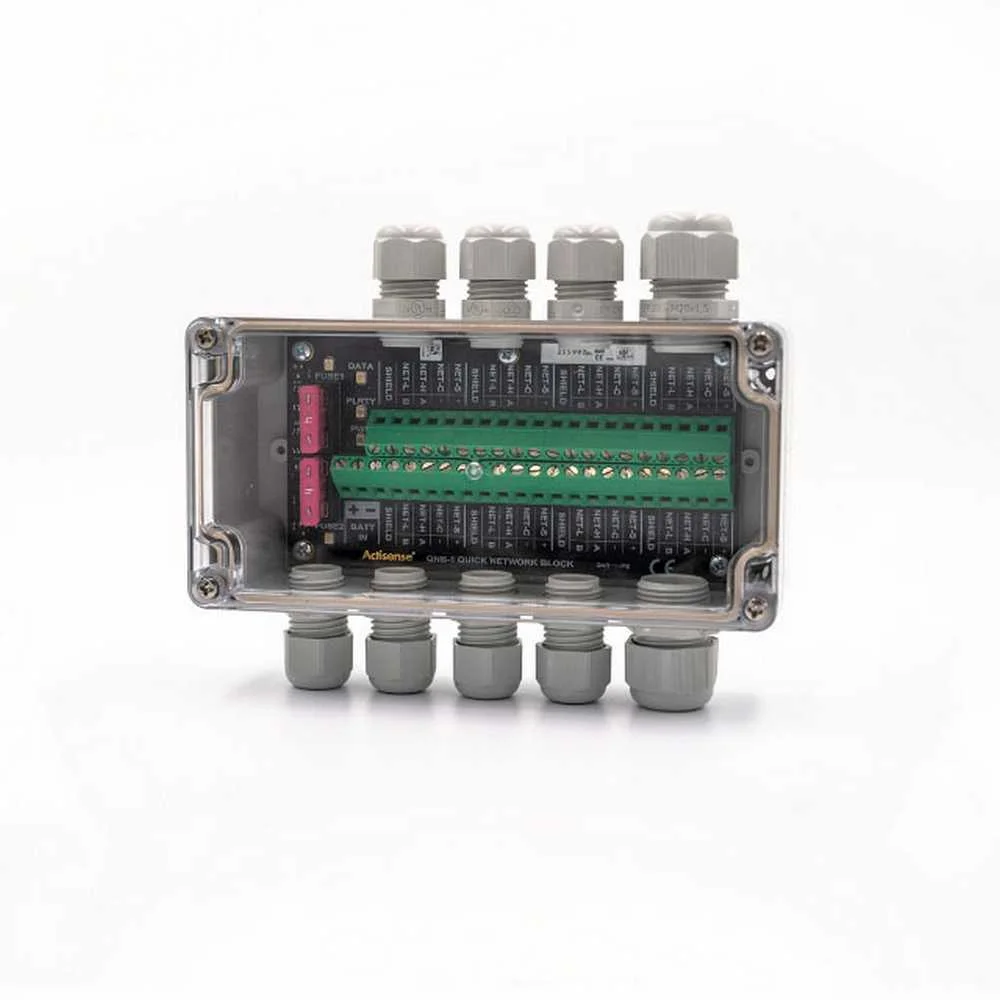

A-QNB-1-PMW NMEA 2000 Network block, 6 micro female drops, power feed

$455.00

The QNB-1-PMW version is fitted with six standard NMEA 2000 M12 (Micro-fit) female connectors which allow ‘plug and play’ connections for quick and easy installation. A Raymarine STNG backbone can be wired to one side of the QNB-1 to combine standard NMEA 2000 with STNG without the need for adapter cables.

The LEDs provide information for the installer during setup and indicate the presence of data, power status, power reversal, and to show whether the fuses are intact.

In stock

High quality NMEA 2000 barrier strip connections
Diagnostic LEDs
Uses standard ATO fuses
One unit provides six NMEA 2000 drops
Power feed is split to enable longer networks
Separate fusing for split power feed provides an easy way to isolate network segments
Simple installation on Mini and Micro networks using bulk cable
Easy to mix & match NMEA 2000 with Raymarine STNG on opposite sides

Supply Voltage: 10-35V DC
Supply Current (no load, 12/24V): 10mA
Micro Cable Fused Protection: 8A
Mini Cable Fused Protection: 16A
Power Polarity LED: Red = Incorrect, Green = Correct
QNB-1-PMW Drop Connections: M12 Female (A-Coded) connector
QNB-1-GLA NMEA 2000 Connector: 5-way Screw Terminal, 5.08mm Screw Pitch
M20 Gland Clamping Range: 6 – 12 mm
Data LED: Flashes when data is detected on network
Housing Material: Polycarbonate – Light Grey
Lid Material: Polycarbonate – Clear
Gasket Material: EPDM Synthetic Rubber
M16 Gland Clamping Range: 4.5 – 10 mm
Dimensions: 160mm (L) x 132.4mm (W) x 80mm (H)
Weight (PMW Variant): 440g
Weight (GLA Variant): 360g
Operating Temperature: -20 – +55 °C
Storage Temperature: -30 – +70 °C
Humidity: 93% @ 40°C
IP Rating: IP66

Box contents not specified

A-QNB-1-PMW NMEA 2000 Network block, 6 micro female drops, power feed
