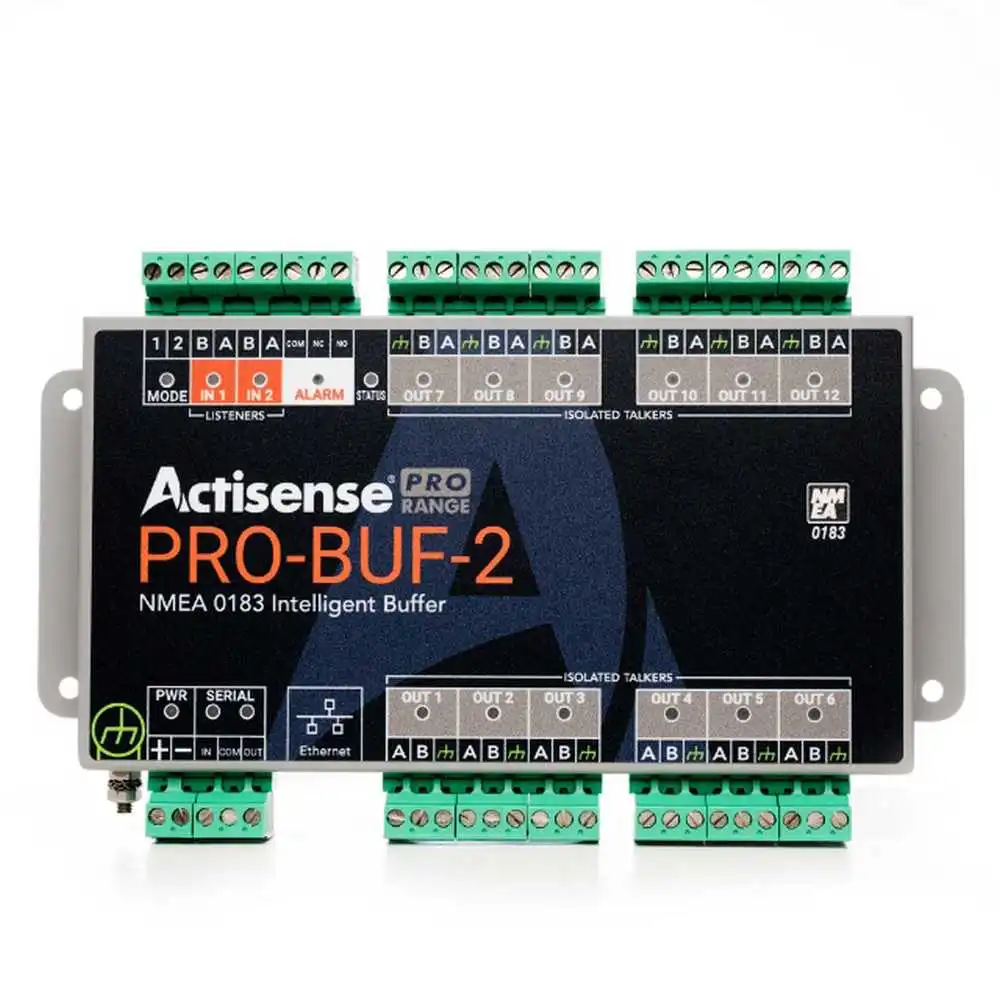

PRO-BUF-2 Intelligent Type Approved NMEA Buffer

$920.00

The Intelligent NMEA 0183 Buffer manually configurable basic modes of operation include variations of buffer modes, intelligent auto-switch, and combine modes.

For all other configurations, leaving the mode inputs floating selects the ‘User Configuration Mode’. The web-based configuration tool allows full customization of the PRO-BUF-2 and is compatible across all popular Operating Systems. Using the web-based configuration tool allows for fine-tuning of the data available on each output.

To make installation quick and simple, the PROBUF-2 features 2-part pluggable connectors that allow the use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.

Helpful LEDs indicate power, data in, data out, and the alarm status to aid diagnostics.

Data statistics and load indication via the web tool provide a real-time view of data.

In stock

2 Opto-Isolated Inputs
12 ISO-Drive NMEA 0183 Outputs
Ethernet Port
Flexible operating modes
Automatic Baud Rate matching on inputs
Alarm output options
Web-based configuration tool
Diagnostic LEDs
Advanced Data Filtering and Routing
2 virtual Autoswitch modules
Data statistics and load indication via web tool
Designed for 12 / 24 Volt supply
Future proofing with easily upgradable firmware
2-part pluggable connector system
Stainless Steel Housing with DIN rail mount option
Type Approved

Input Supply Voltage: 9 to 35 V DC
Input Supply Current: 325mA max @ 12V DC
Input Protection: Continuous reverse polarity, transient overvoltage, and ESD protection
Power Indicator: LED, Blue – indicates unit is functioning correctly
Input Supply Connector: Pluggable 2-way screw terminal, 5.08mm pitch
Compatibility: Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Speed/Baud Rate: 4800 to 38400 bps
Talker Output Voltage Drive: >= 2.2V (differential) into 100 ohm
Talker Output Current Drive: 20 mA maximum per output
Data Indicators: LED’s: Green = Receive, Orange = Transmit
