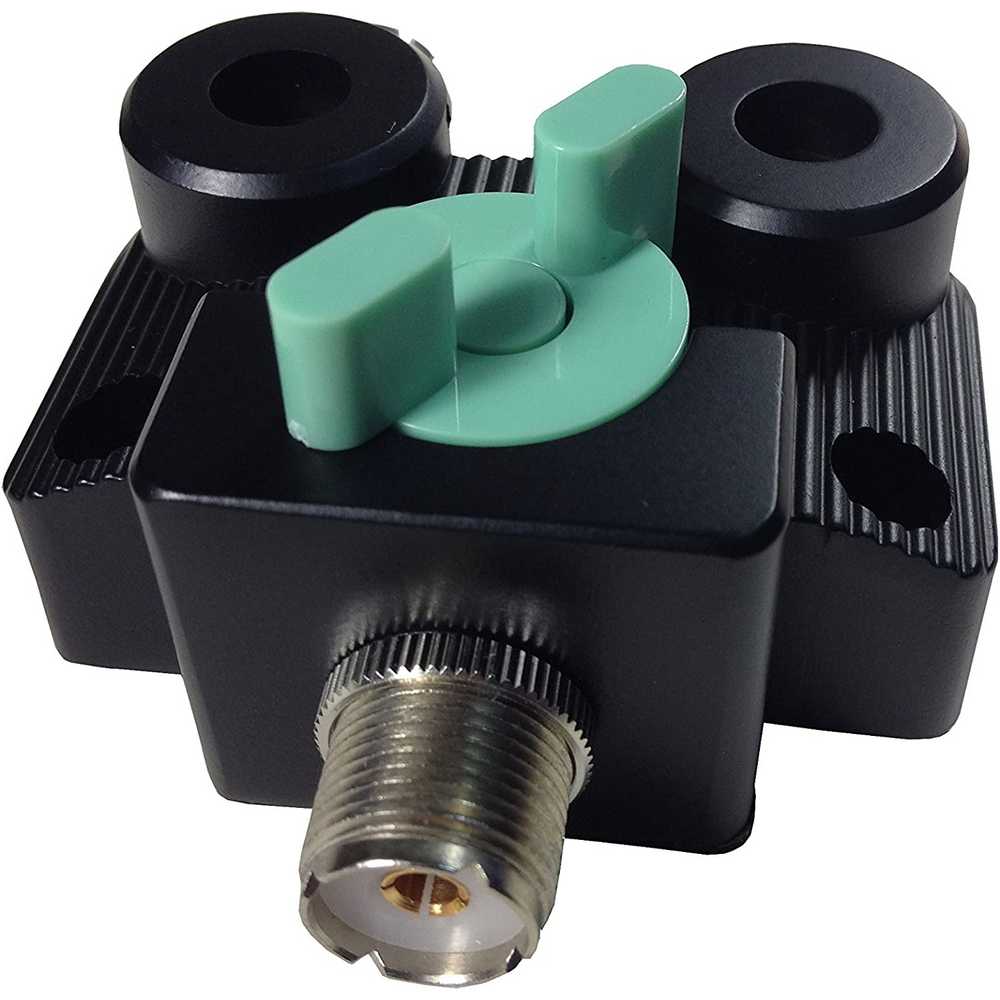

CX210N Heavy Duty Wideband Coaxial Switches
Request a quote for latest pricing
- Dimensions: 71 W x 57 H x 42 D mm
- Weight: 440 g
- Frequency Range: DC to 3000 MHz
- Impedance: 50 ohms
- Connector: N-J
- VSWR: Less than 1.05:1 (DC to 500 MHz), less than 1.1:1 (500 to 1000 MHz), less than 1.15:1 (1000 to 2000 MHz), less than 1.2:1 (2000 to 3000 MHz)
- Insertion Loss: Less than 0.05 dB (DC to 500 MHz), less than 0.1 dB (500 to 1000 MHz), less than 0.15 dB (1000 to 2000 MHz), less than 0.2 dB (2000 to 3000 MHz)
- Isolation: More than 70 dB (DC to 200 MHz), more than 60 dB (200 to 1000 MHz), more than 55 dB (1000 to 2000 MHz), more than 50 dB (2000 to 3000 MHz)
- Max Power Rating: 1.5 KW
