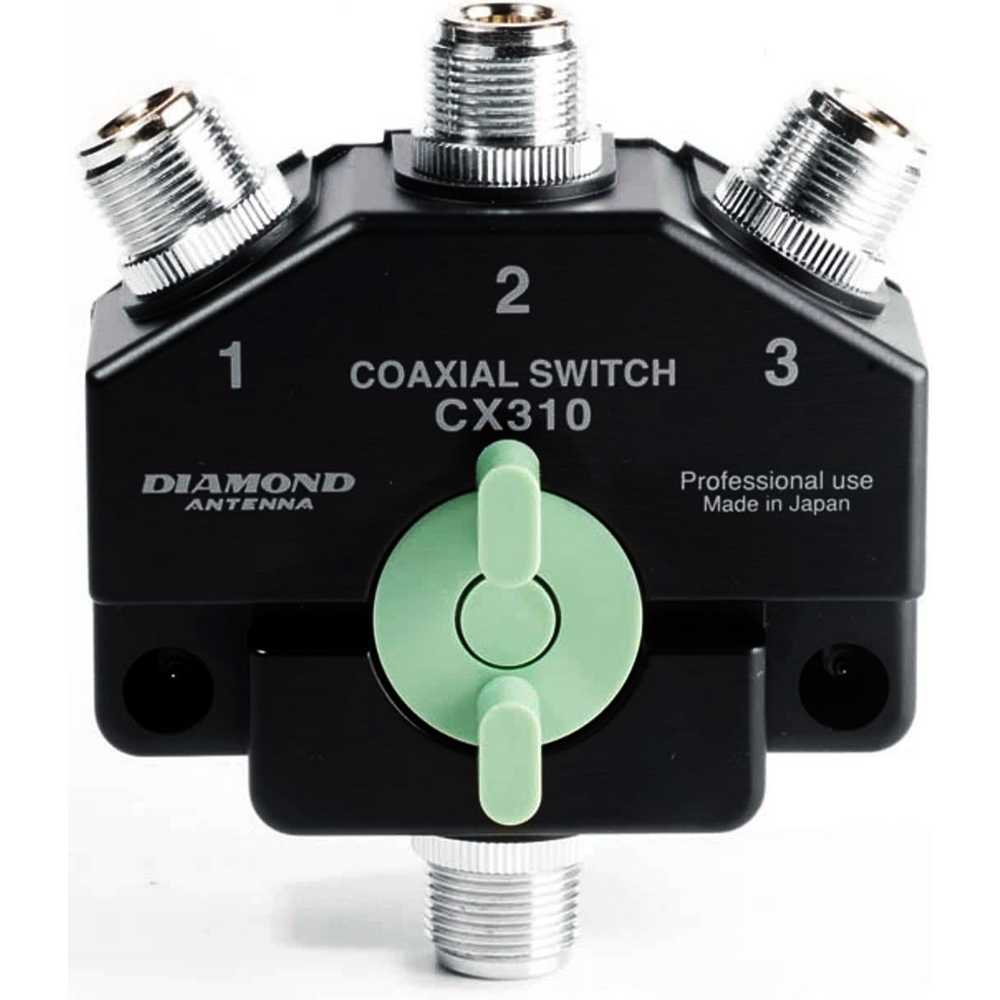

CX310N Heavy Duty Wideband Coaxial Switches

CX310N Heavy Duty Wideband Coaxial Switches

• Dimensions: 71W x 57H x 42D mm
• Weight: 440 g
• Frequency range: DC to 1500 MHz
• Impedance: 50 ohms
• Connector: N-J
• VSWR: Less than 1.1:1 (DC to 500 MHz), less than 1.2:1 (500 to 1500 MHz)
• Insertion loss: Less than 0.1 dB (DC to 500 MHz), less than 0.2 dB (500 to 1500 MHz)
• Isolation: More than 60 dB (DC to 500 MHz), more than 50 dB (500 to 1500 MHz)
• Max. power rating (When VSWR is less than 1.2:1): 1.5 KW (DC to 30 MHz), 1 KW (30 to 150 MHz), 500 W (150 to 500 MHz), 250 W (500 to 1000 MHz), 150 W (1000 to 1500 MHz)
