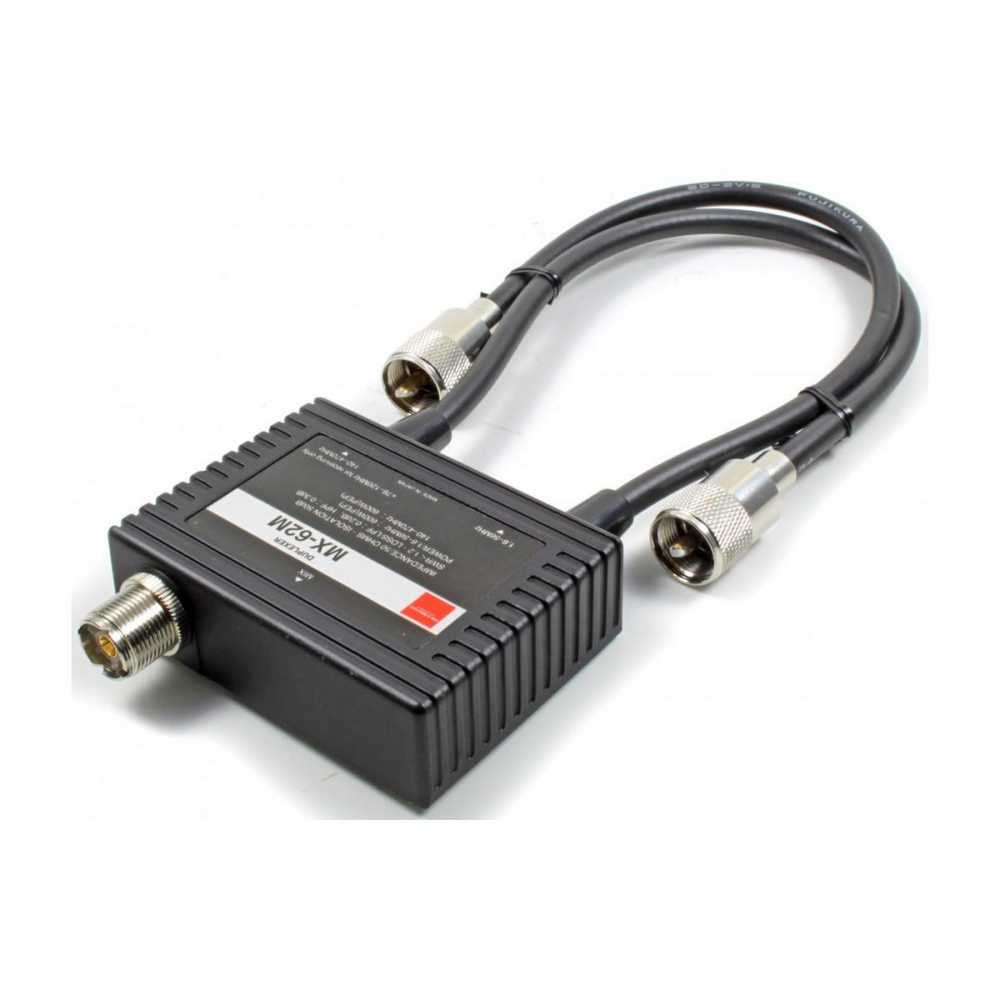

MX62M Duplexer
Request a quote for latest pricing
Specifications:
- Frequency range: 1.6 to 56MHz / 76 to 470MHz (76 to 120MHz receiving only)
- Dimensions: 86Wx25Hx64Dmm
- Weight: 360g
- Passband width: LPF/1.6 to 56MHz, HPF/76 to 470MHz (76 to 120MHz receiving only)
- Power rating: 600W (PEP)
- Insertion loss: LPF: Less than 0.2dB; 140 to 470MHz: Less than 0.3dB
- Impedance: 50 ohms
- VSWR: Less than 1.2:1

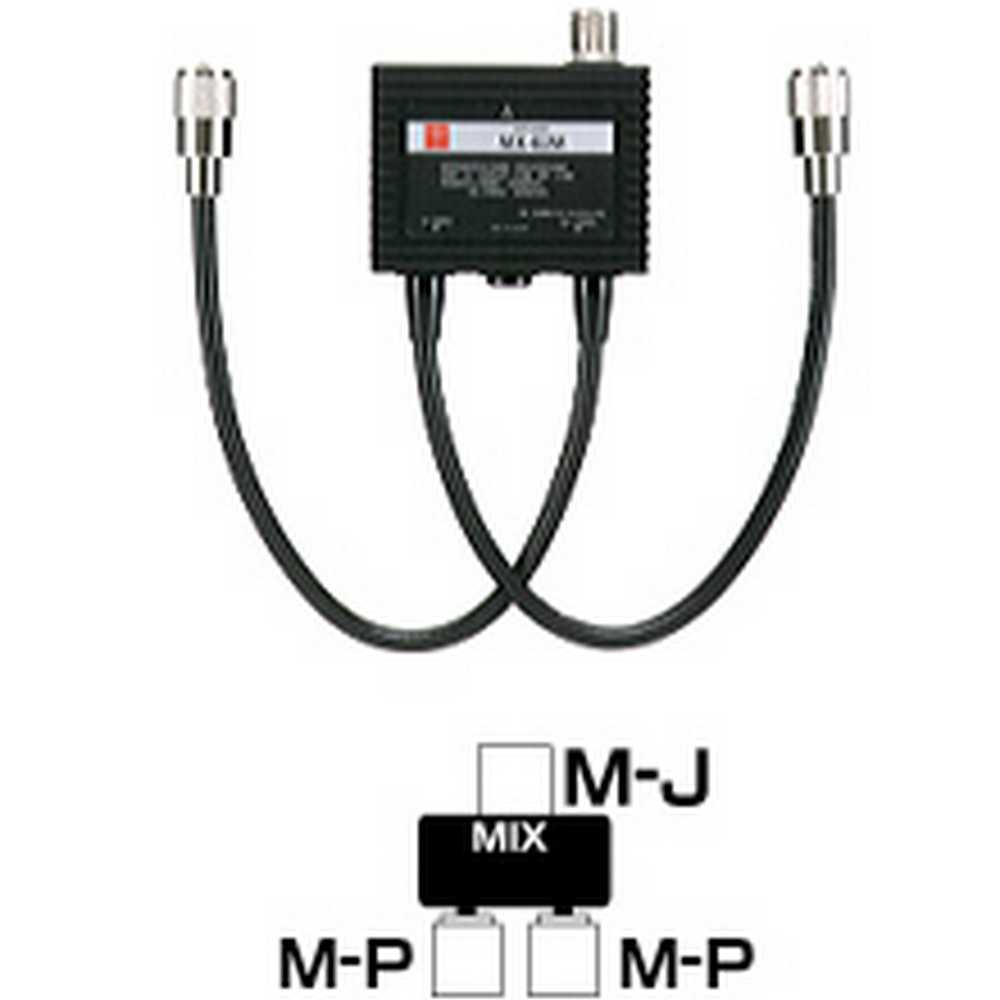

- Connector: (MIX) M-J / (1.6 to 56MHz) M-P / (76 to 470MHz) M-P
- Coaxial cable: 5D-2VS (35cm)
