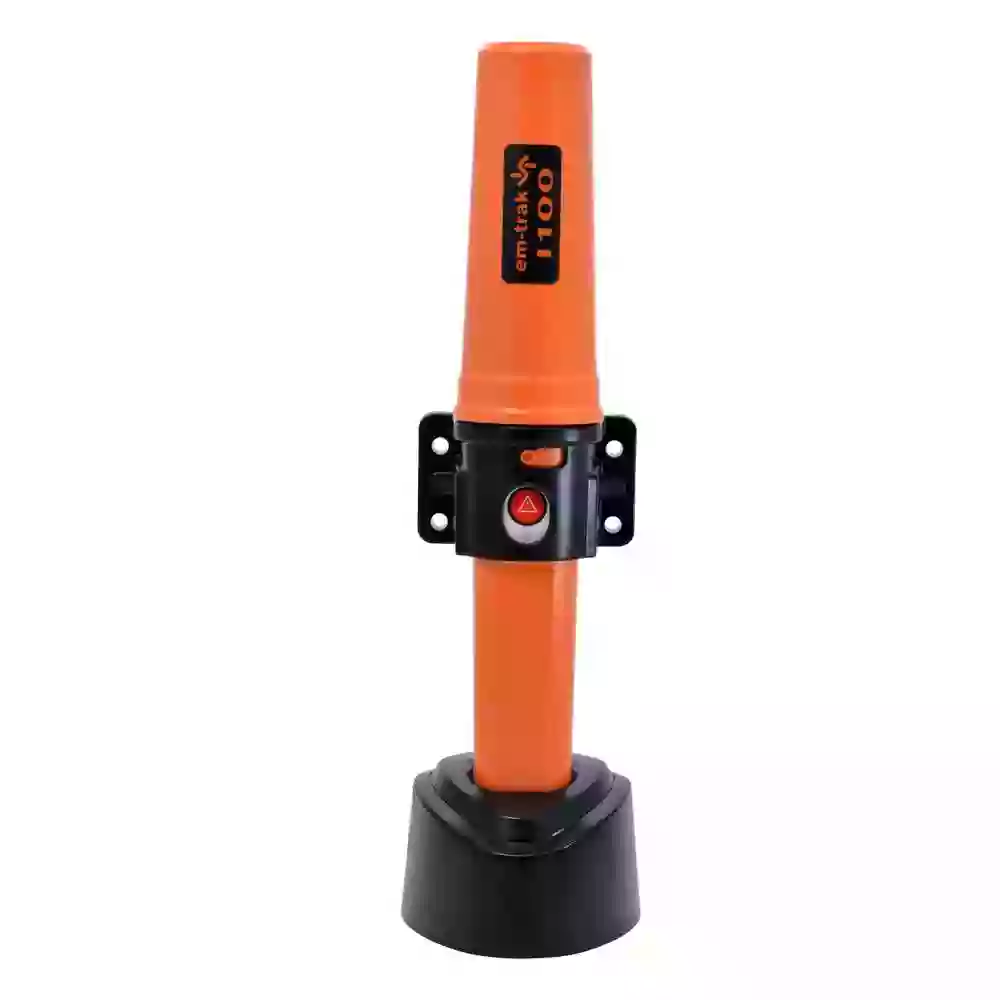

Em-Trak I100 Class B AIS Transceiver (Small Vessel Tracker)

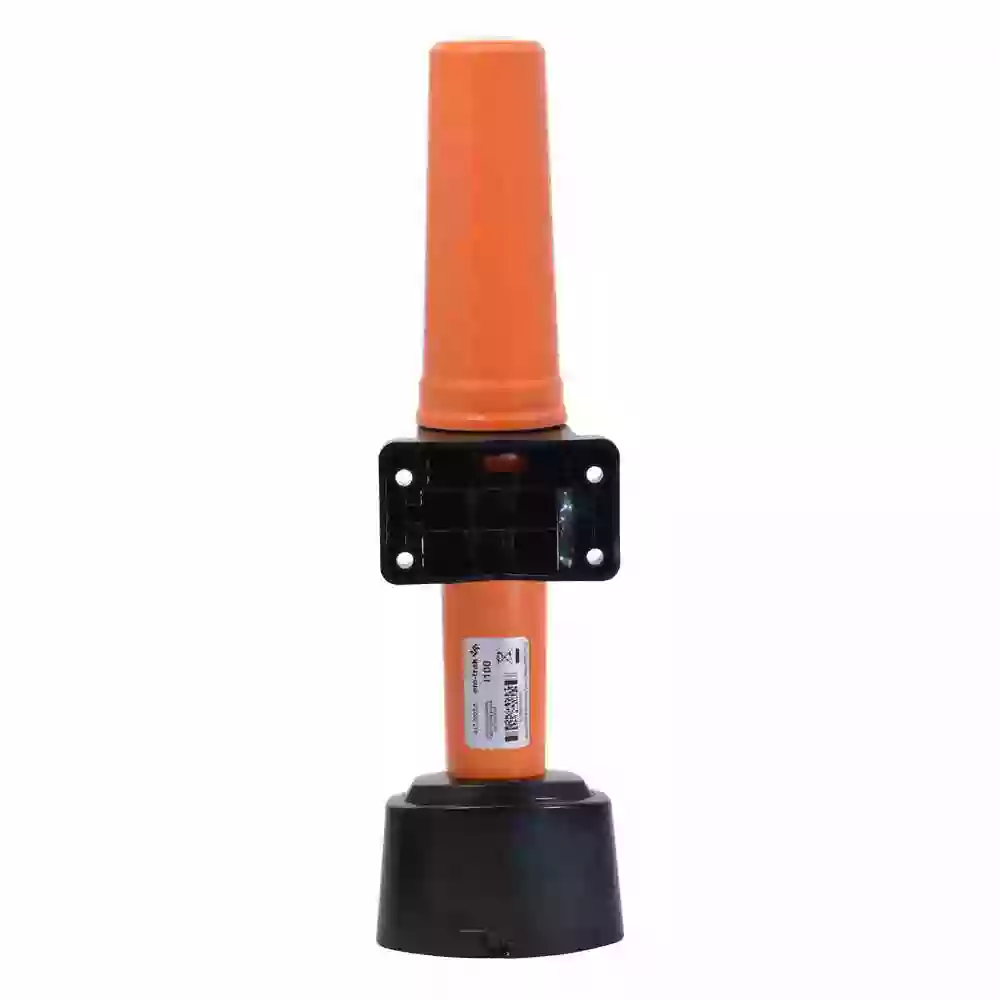

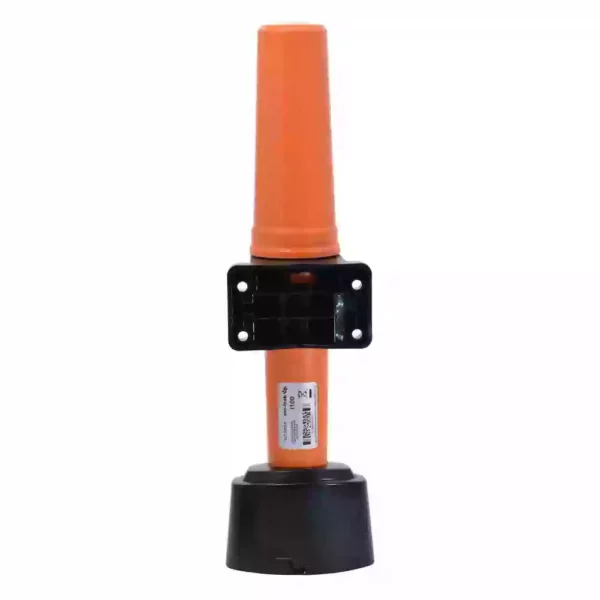

Em-Trak I100 Class B AIS Transceiver (Small Vessel Tracker) - Image 2

Em-Trak I100 Class B AIS Transceiver (Small Vessel Tracker)

EM-TRAK

Request a quote for latest pricing

The Identifier I100-X is a ruggedized, fully self-contained AIS Class B vessel tracking transponder, ideal for small vessel tracking and monitoring.

The I100-X can power itself using its own internal rapid recharge battery (120+ hours continuous operation) or be connected directly to another onboard power source, such as an engine, battery, or solar, with the internal battery then acting as a backup.

Fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest environments—including extreme heat/cold, humidity, shock, and vibration.

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct connect power cable and alert indicator box are also available.

Request A Quote
Categories: , , Brand:
  • Certified AIS Class B Transponder
  • 5 day continuous use from its internal battery or connect directly to another onboard power source such as engine, battery or solar for a permanent installation
  • Takes only 5 hours to completely recharge
  • Rugged IPx8 design ensures operational performance
Physical and Environmental Specification
  • Size (h x w) – 370 x 67 mm
  • Weight – 355g
  • Operating temperature – -25°C to +55°C
  • Storage temperature – -25°C to +70°C
  • Ingress protection – IPx8 (1.1m 30 mins)
Electrical Specification
  • Battery capacity – 2300mAh
  • Battery type – 3.7V Li-Ion rechargeable
  • Battery life (default operating conditions) – 120 hours
Standards Compliance
  • AIS standards – IEC 62287-1 Ed. 3. ITU-R M.1371.5
  • Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
  • Environmental standards – IEC 60945 Ed. 4
  • GNSS performance standards – IEC 61108-1 Ed 2.0
GNSS
  • Systems supported – GPS & GLONASS
  • Channels – 72
  • Time to first fix from cold start – 26s
VHF Transceiver
  • VDL access scheme – CSTDMA
  • Operating frequency – 156.025MHz – 162.025MHz
  • Channel bandwidth – 25kHz
  • Receivers/transmitters – 1 x transmitter
  • AIS transmitter power – 2W (33dBm radiated)
User Interface
  • Buttons – SOS
  • Indicators – Status indicator
Charging Dock
  • Size (H x W x D) – 110mm x 120mm x 78mm
  • Weight – 360g
  • Power supply – 115V / 240V AC
Configuration Dock
  • Size (H x W x D) – 110mm x 120mm x 78mm
  • Weight – 360g
  • Power supply – 115V / 240V AC
  • PC interface – USB (cable supplied)
  • 1 x Identifier
  • 1 x Vessel Bracket and a Fixings Pack
  • 1 x Charging Dock

Note: You will also require a Configuration Dock Product Code: 417-0074 (see accessories section). This is used to program the unit prior to deployment.
