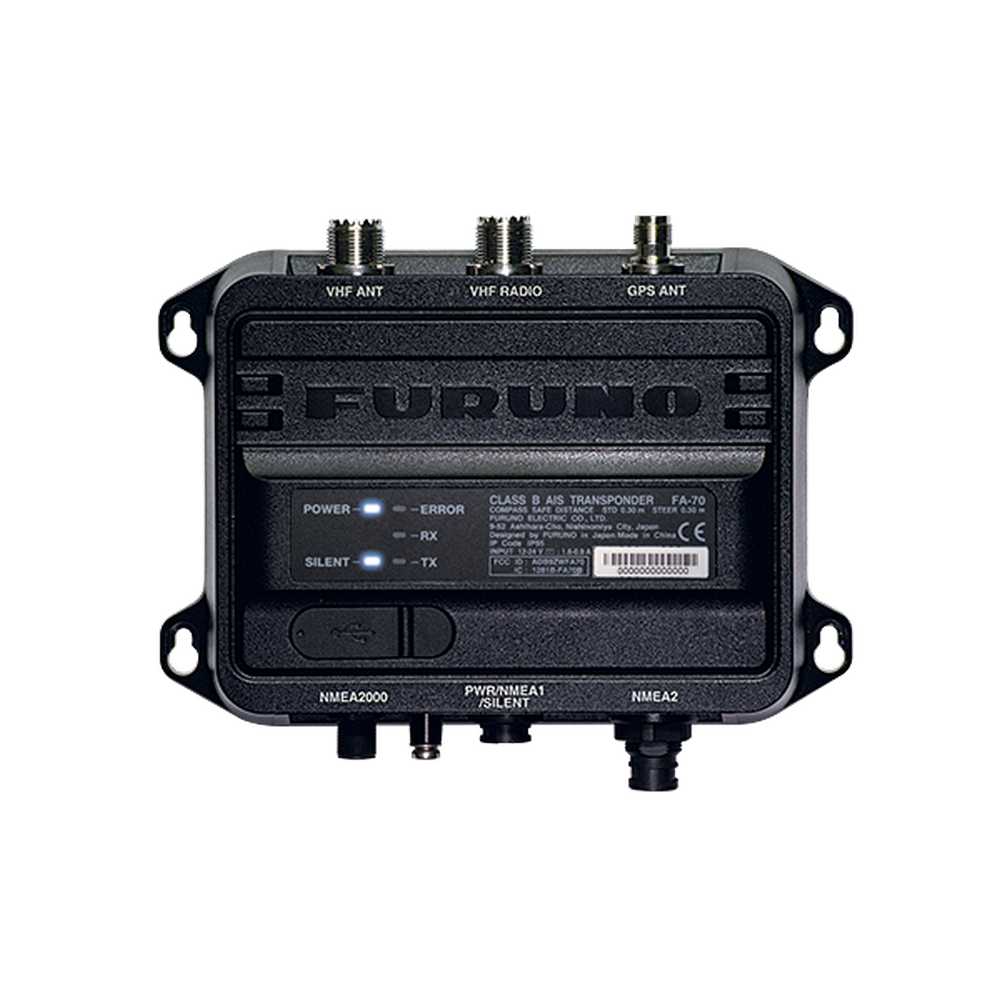

Furuno FA-70 Class B AIS Transponder

FURUNO

Request a quote for latest pricing

Class B AIS transponder

The FA-70 offers accurate information exchange that can be utilized for collision avoidance.

  • Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby.
  • Greatly improves the level of situational awareness even in fog, darkness, or congested waterways.
  • Flexible integration with various AIS-compatible radar and chart plotters.
  • High power (5W) and fast transmitting rate contributing to greater safety.
  • Internal VHF splitter eliminates the need for a separate antenna.
  • Switchable SO-TDMA and CS-TDMA.
  • Receives both Class-A and Class-B AIS information.
  • Initial setup can be done through the NMEA2000 network (TZT2/TZT3).
  • Silent mode with external ON/OFF switch.
Request A Quote
Categories: , , Brand:
  • Enhances safe navigation: Exchanges critical navigation information from AIS-equipped vessels nearby.
  • Improved situational awareness: Especially useful in fog, darkness, or congested waterways.
  • Flexible integration: Compatible with various AIS-compatible radar and chart plotters.
  • High power transmission: 5W output with a fast transmitting rate for greater safety.
  • Internal VHF splitter: Eliminates the need for a separate antenna.
  • Switchable modes: Supports SO-TDMA and CS-TDMA.
  • Wide compatibility: Receives both Class-A and Class-B AIS information.
  • Easy setup: Initial configuration possible via the NMEA2000 network (TZT2/TZT3).
  • Silent Mode: Controlled via an external ON/OFF switch.
  • Standards:
    • IEC 60945 Ed.4+CORR.1
    • IMO MSC.140 (76)
    • ITU-R M.1371-5, DSC: ITU-R M.825-3
    • IEC 62287-1 Ed.3.0, IEC 62287-2 Ed.2.0, EN 303 413 V1.1.1
    • EN 301 843-1 V2.2.1
    • IEC 62368-1 Ed.3, IEC 62311 Ed.1+Ed.2
  • TX/RX Frequency: 156.025 MHz ～ 162.025 MHz
  • Output Power: 5 W or 1 W (SO-TDMA), 2 W (CS-TDMA)
  • Channel Spacing: 25 kHz
  • Waterproofing:
    • Antenna Unit: IP56
    • Other Units: IP55
  • Power Supply: 12-24 VDC, 1.8-0.9 A
  • Size: 177(W) x 55(H) x 158(D) mm
  • Weight: 0.52 kg (1.1 lbs)
  • Standard Components:
    • FA-70 Transponder Unit
    • GPS Antenna: GPA-017S or GPA-C01
    • Cable Assembly:
      • PWR/NMEA1/SILENT cable (1 pcs); 2 m
      • NMEA2000 cable (1 pcs); 2 m
    • Spare Tube Fuse (SA, 2 pcs)
    • Accessories: AIS Setting Tool (CD-ROM)
