- Powerful Radar delivering stronger and farther detection with very high resolution: 50 kW output power ensures long-range detection with reduced noise and clear presentation of weak echoes.
- Improved detection performance: Offers superior detection compared to previous models.
- Function keys with 32 customizable features: Assign single or multiple functions to each key, with up to 32 functions available.
- 40 origin marks: Track up to 40 origin marks with distance and direction displayed at a glance, and backup for land-fixed marks even after power-off.
- Colored track lines for identifying fishing grounds: Water temperature displayed with color changes, aiding in identifying fishing grounds.
- Intuitive off-center function: Easily off-center the display using a cursor or trackball for intuitive control.
- Fishing gear echoes visibility: Enhanced Echo Average (EAV) function displays both weak and strong echoes with rich color.
- TT target acquisition up to 48 NM: Increased tracking range compared to previous models, capturing more distant targets.
- AIS customization: Assign colors and track lines to AIS targets for easy identification, supporting up to 100 entries.
- Customizable TT settings: Configure and pre-register target name, color, shape, and track line for easier distinction.
FAR-2258 – High Power X-band Fishing Radar (50kW)
Request a quote for latest pricing
- Powerful Radar delivering stronger and farther detection with very high resolution
- Improved detection performance compared to previous models
Function keys support up to 32 customizable features & settings
- A total of 40 origin marks can be entered
- Easily identify fishing grounds with colored track lines
- Intuitive off-center function with trackball
Fishing gear echoes easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range
- TT target acquisition up to a distance of 48 NM
- AIS customization helps you keep an eye on other vessels
- TT custom settings make it easier to distinguish other ships!

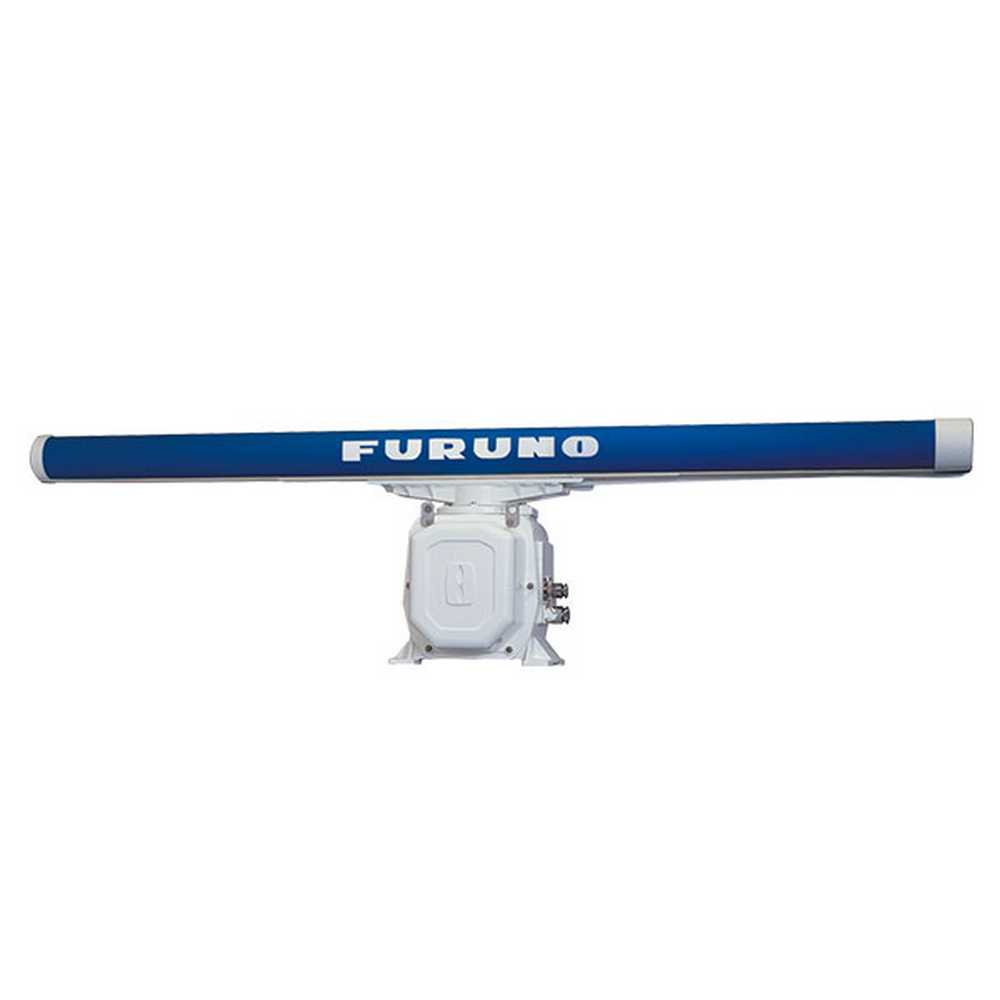

- Antenna:
- Peak Output Power: 50 kW
- Type: 240 / 300 cm Slotted Array
- Frequency: 9410 MHz ±30 MHz, P0N
- Beam Width (Horizontal): 0.95° (240 cm), 0.75° (300 cm)
- Beam Width (Vertical): 20°
- Range Scales: 0.125–96 NM
- Antenna Rotation Speed: 24 rpm

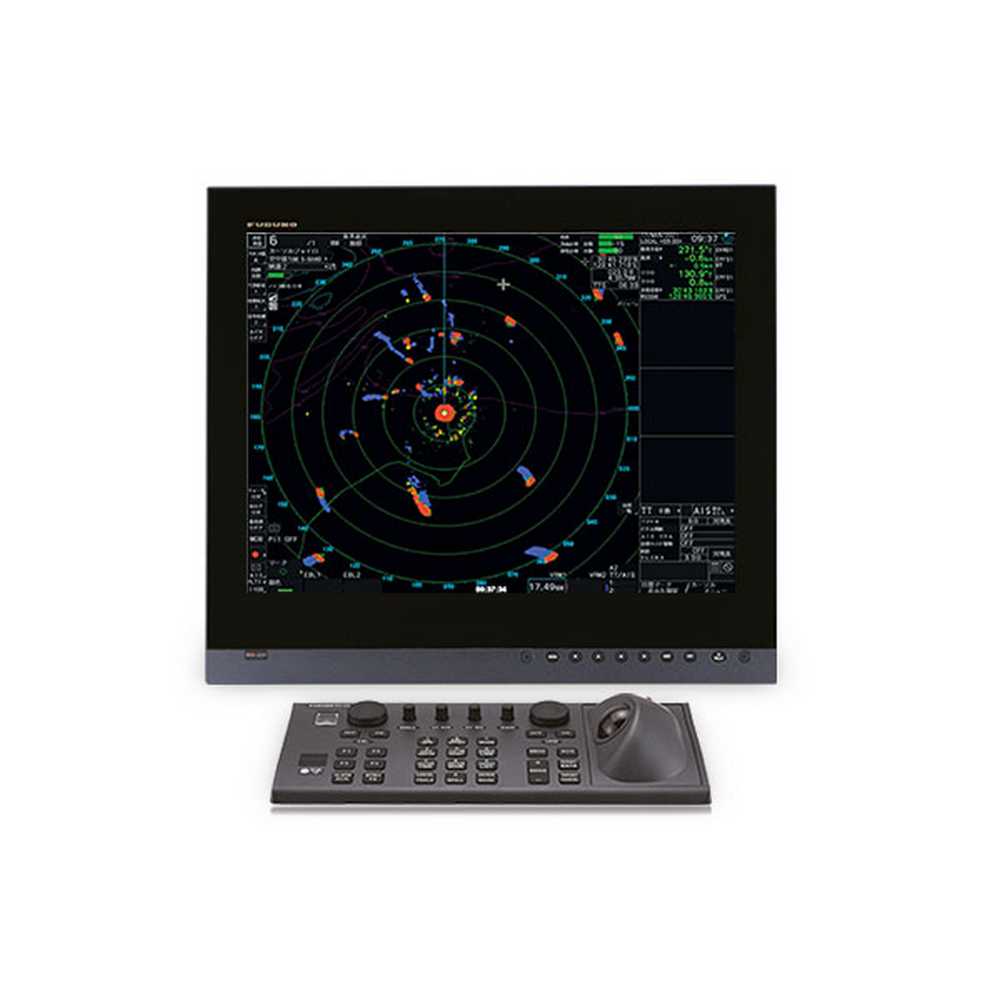

- Display:
- Display Unit:
- 19-inch color LCD (1280×1024 SXGA)
- 23.1-inch color LCD (1600×1200 UXGA)
- 27-inch color LCD (1920×1200 WUXGA)
- Display Modes: Head-up, STAB head-up, Course-up, North-up (RM/TM), Stern-up
- Other Modes/Functions: Target Tracking (TT), Plotter function, AIS
- Display Unit:
- Environment:
- Temperature:
- Antenna Unit: -25°C to +55°C (Storage: -25°C to +70°C)
- Other: -15°C to +55°C (Storage: -20°C to +70°C)
- Waterproofing:
- Antenna Unit: IP56
- Processor Unit/Display Unit: IP22
- Control Unit: IP20 (RCU-014/015/016), IP22 (RCU-031)
- Hub: IP20 (HUB-100), IP22 (HUB-3000)
- Temperature:
- Power Supply:
- Antenna Unit: 100-115/220-230 VAC: 3.1/1.5 A, Phase, 50-60 Hz
- Processor Unit: 100-230 VAC: 2.2-1.1 A, Phase, 50-60 Hz
- Display Unit:
- MU-190: 100-230 VAC: 0.7-0.4 A, Phase, 50-60 Hz
- MU-190HD: 12-24 VDC: 8.4-3.9 A
- MU-231: 100-230 VAC: 1.0-0.6 A, Phase, 50-60 Hz
- MU-270W: 100-230 VAC: 0.7-0.4 A, Phase, 50-60 Hz
- Hub (Optional): 100-230 VAC: 0.1 A, 1 Phase, 50-60 Hz
