- Equipped with Furuno’s latest technology: the Bottom Discrimination Function – Analyze bottom structure*
- Provides an at-a-glance recognition of bottom with four types of graphical displays (Rocks/Gravel/Sand/Mud) when connected to required thru-hull or transom mount transducer.
- * Thru-hull or transom transducer mount required.
- ACCU-FISH™ – A unique fish size analyzer based on the latest digital technology
- White Line feature – Discriminate fish lying near the bottom
- The top edge of the sea floor is displayed in white to clearly show structures.
- This feature helps to discriminate bottom fish distinctly.
- Configurable Alarm function (depth, fish echoes, etc.)
- Post-processing Gain Control applied to all echoes displayed on the screen
- Share and display information on a chart plotter*
- Furuno’s TLL (Target Lat/Lon) output allows you to interface the FCV-688 with your chart plotter so that you can mark fishing spots with various information (L/L, Depth, Water Temp, Fish size, Bottom).
- * Required connection to chart plotter.
- Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

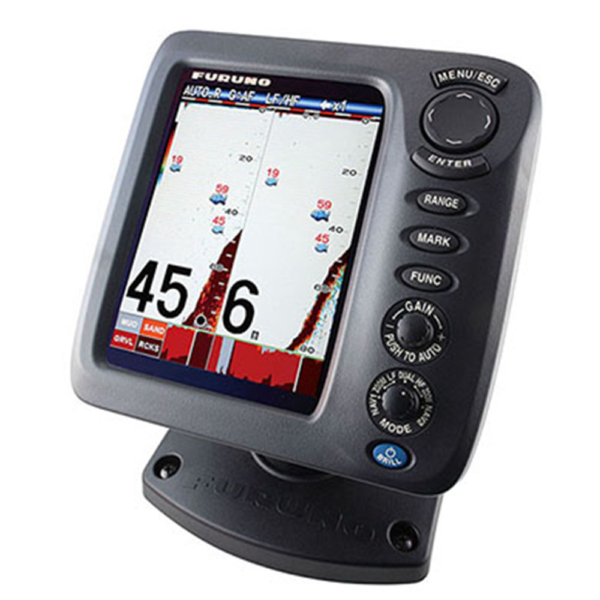

Furuno FCV-688 5.7″ Fish Finder
$1,350.00
The FCV-688 provides valuable information to help you locate rich fishing grounds and boost your catch! The FCV-688 knows fish size and bottom structure under your boat.
- Display
- Display unit: 5.7″ COLOR LCD FISH FINDER
- Pixel number: 640 x 480 (VGA)
- Fish Finder
- Frequency: 50 and 200 kHz
- Transducer: 600 W
- Range Scale: 2-1200 m
- Pulselength & PRR: 0.1-3 ms, Max 3,000 pulse/min
- Display Modes: Single frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom discrimination, ACCU-FISH™
- Range Shift: Bottom-lock expansion: 2-10 m; Sectional expansion: 2-1200 m
- ACCU-FISH™: Available
- Bottom Discrimination: Available
- Others
- Waterproofing: IP55
- Power Supply: 12-24 VDC, 13 W
- Size: 207 (H) x 170 (W) x 132 (D)
- Weight: Bracket mount 1.3 kg (2.9 lb)
- Display Unit CV-688E/688C (for Chinese)
- 520-5PSD Thru-Hull Plastic Transducer
- Installation Materials and Standard Spare Parts
