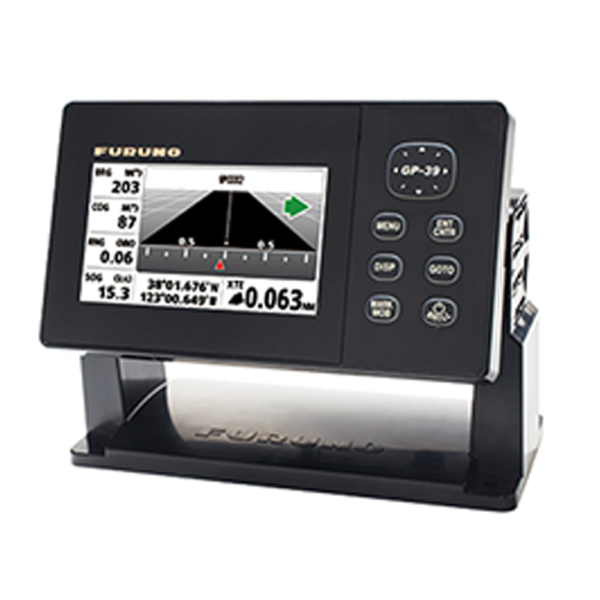

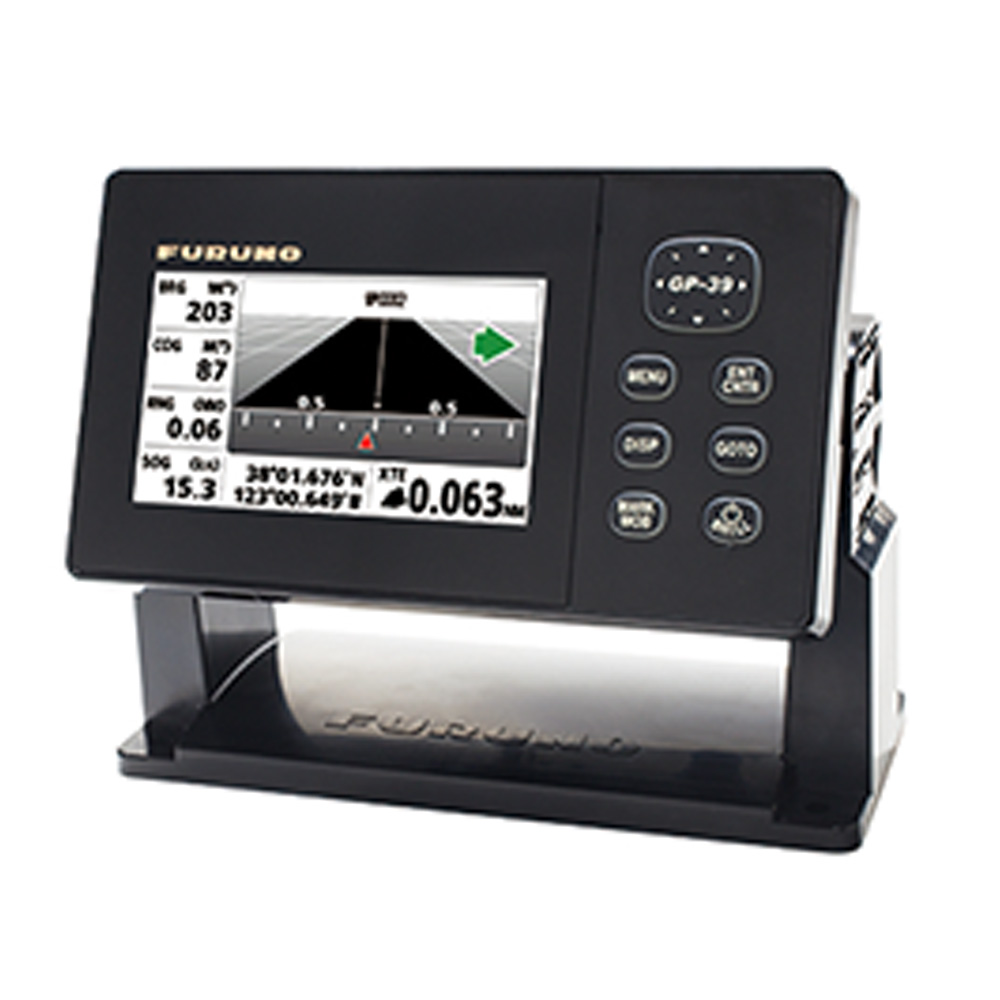

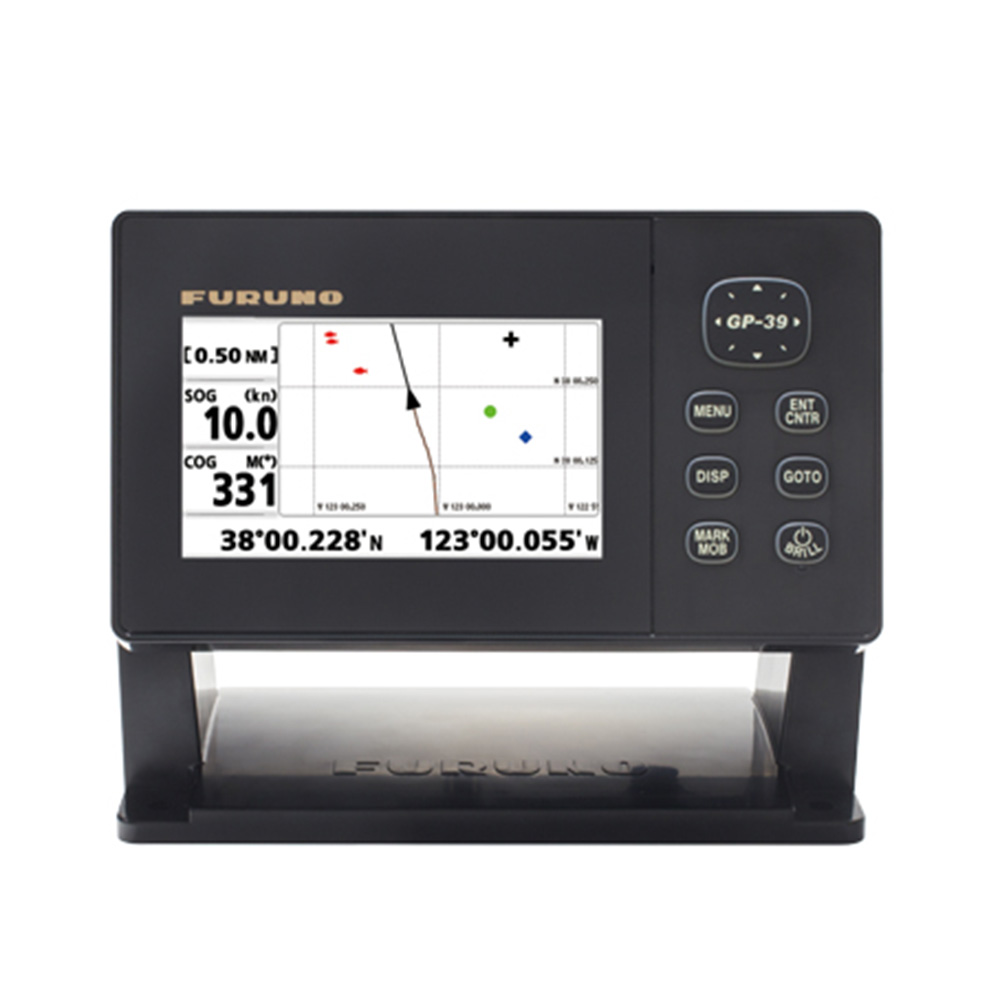

GP-39 4.2″ GPS NAVIGATOR

$580.00

The FURUNO GPS navigator GP-39 provides accurate and reliable position fixing, thanks to a 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology.

The GP-39 has various display modes (Plotter, Highway, Steering, NAV data, Satellite monitor, and 2 user customizable modes) on the 4.2″ color LCD. Up to 3,000 points of ship track, 10,000 waypoints, and 100 routes (each with up to 30 waypoints) can be stored. The waypoint and route data can be exported/imported via a USB flash drive or signal converter.

The GP-39 can be networked with a fish finder, sonar, radar, or other navigation equipment for feeding highly accurate navigation data.

In stock

Newly designed GPS core delivers enhanced position fixing accuracy
4.2″ high-resolution color LCD
Storage for 3,000 track points, 10,000 waypoints, and 100 routes
SBAS capable for better positioning calculations
Share and display position information on networked equipment such as a fish finder, sonar, radar, etc.
7 display modes available, including 2 user-customizable modes
Waypoint and route data can be exported/imported via a USB flash drive or signal converter
Multi-language ready: English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian, and Thai
Easy to mount on/off the bracket

Display Unit
- Screen type: 4.2″ Color LCD
- Screen resolution: 480 (V) x 272 (H) pixels
- GPS antenna: External
- Display modes: Plotter, Highway, Steering, NAV Data, Satellite monitor, User Display (Digital, Speedometer, COG)
- Language: English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian, Thai
GPS / SBAS (WAAS/EGNOS/MSAS)
- Receiving type:
  - GPS: 12 channels parallel, 12 satellites tracking, C/A code, all-in-view
  - SBAS: 2 channels
- Receiving frequency: L1 (1575.42 MHz ± 1.023 MHz)
- Accuracy:
  - GPS: 10 m (95% of the time, HDOP≤4)
  - WAAS: 3 m (95% of the time, HDOP≤4)
  - MSAS: 7 m (95% of the time, HDOP≤4)
Plotter
- Memory capacity:
  - 3,000 ship’s track points
  - 10,000 waypoints with comments
  - 100 routes with 30 waypoints/route
Others
- Waterproofing:
  - Display unit: IP55
  - Antenna unit: IP56
- Power supply: 12-24 VDC : 0.7-0.3 A
- Weight: 0.39 kg (0.86 lb) (Bracket mount)
