- Standard type GPS antenna
- Standard TNC Connection
- Easy installation with optional use of antenna mounting bracket

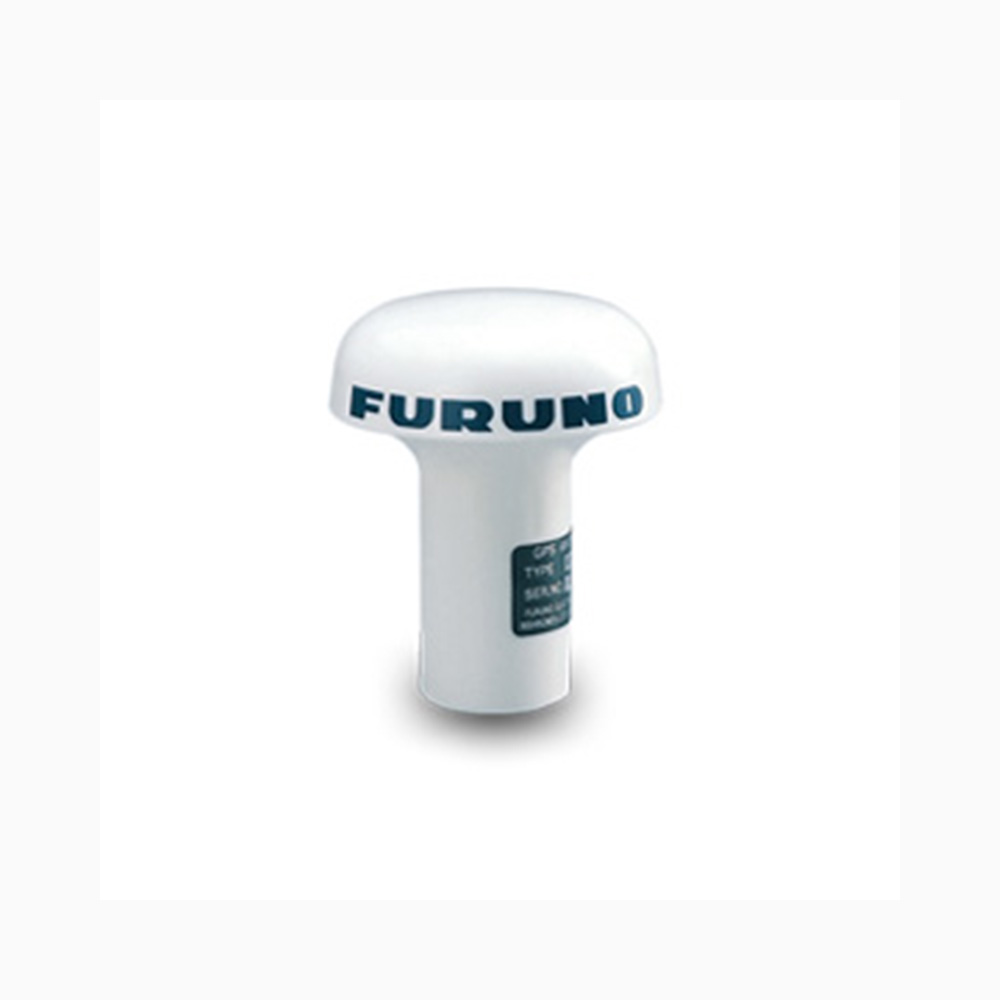

Furuno GPS Antenna GPA-017
Request a quote for latest pricing
Antenna for GPS, Galileo, and QZSS L1 (1575.42MHz) reception. Ideal for outdoor installation in harsh weather conditions.
The GPA series is a GPS/GNSS antenna for Timing that is intended for installation on buildings. GPA-017 is a compact and lightweight package designed to withstand harsh outdoor environments including rain, wind, sunlight, and temperature changes.
- Input Frequency: 1575.42MHz ± 1.023MHz
- Polarization: R. H. C. P. (Right Hand Circular Polarization)
- Antenna Gain: >= 2.0dBi (at 90° elev. angle), >= -4.0dBi (at 10° elev. angle)
- Output Impedance: 50 Ω
- Pre. Amp Gain: 27.5 ± 5.5dB
- Pre. Amp Noise Figure: <= 1.6dB
- VSWR: <= 2.0
- Supply Voltage: 4 to 5.5VDC
- Power Consumption: <= 25mA
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -35°C to +75°C
- Operating Relative Humidity: <= 95%RH
- Connector Type: TNC-J
- Note: Standard type
- Weight: 120 g
