- General
- Transducer Frequency: CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
- Transducer Power:
- CHIRP Traditional: 600 W
- ClearVü: 500 W
- Transducer Beamwidth:
- Traditional: 24°-13°
- ClearVü: 2.0°x51° @ 260 kHz, 1.4°x29° @ 455 kHz
- Transducer Maximum Depth:
- Traditional: 1,800 ft.
- ClearVü: 1,000 ft.
- Transducer Cable Length: 30 ft.
- Transducer Depth/Speed/Temperature: Depth and Temperature
- Transducer Number of Pins: 8-pin
- Transducer Supported Deadrise/Transom Angles: Up to 25° deadrise

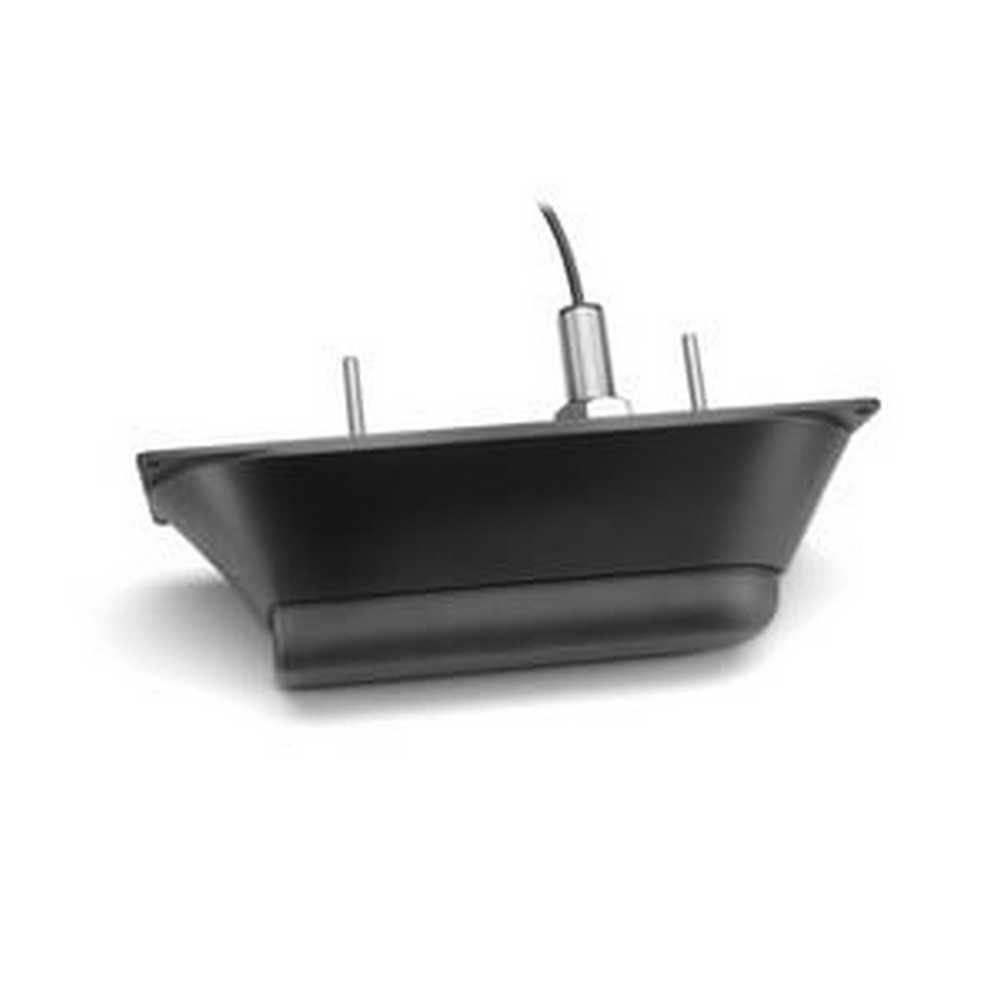

Garmin GT23M-TH Transducer (010-12404-10)
Request a quote for latest pricing
Perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation, as well as clear definition of structure below the boat.
Specifications:
- 8-pin transducer with mid-band CHIRP traditional sonar (80-160 kHz) and a power rating of 600 W
- CHIRP ClearVü (260/455 kHz) element with a power rating of 500 W
For installation, follow the included instructions carefully to avoid damaging your boat.
