- Transducer Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
- Transducer Power: ClearVü/SideVü 500 W
- Transducer Beamwidth:
- ClearVü: 1.4° x 53° @ 455 kHz, 0.8° x 30° @ 800 kHz
- SideVü: 1.1° x 53° @ 455 kHz, 0.7° x 30° @ 800 kHz
- Transducer Maximum Depth:
- ClearVü: 750 ft.
- SideVü: 500 ft.
- Transducer Cable Length: 5 ft. + 30 ft. y-extension cable
- Transducer Depth/Speed/Temperature: Depth and Temperature
- Transducer Number of Pins: 12-pin
- Transducer Supported Deadrise/Transom Angles: Up to 25° deadrise

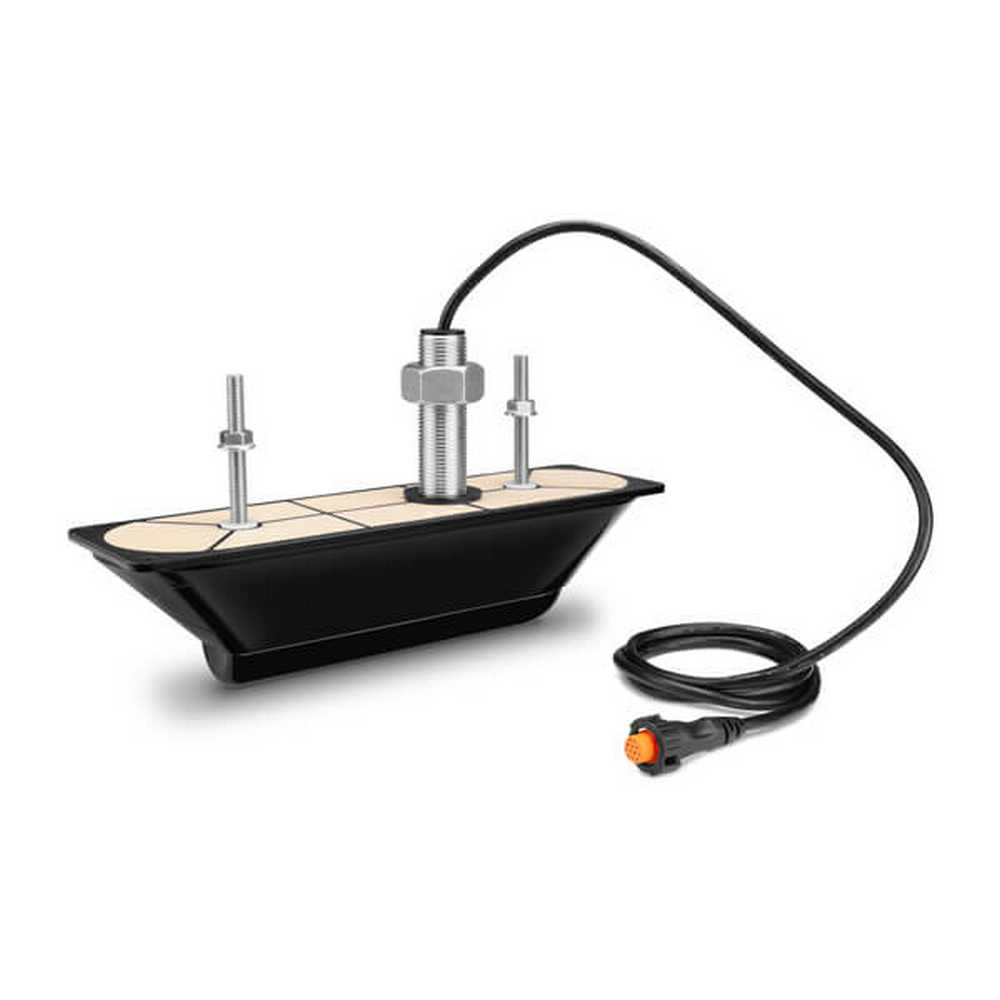

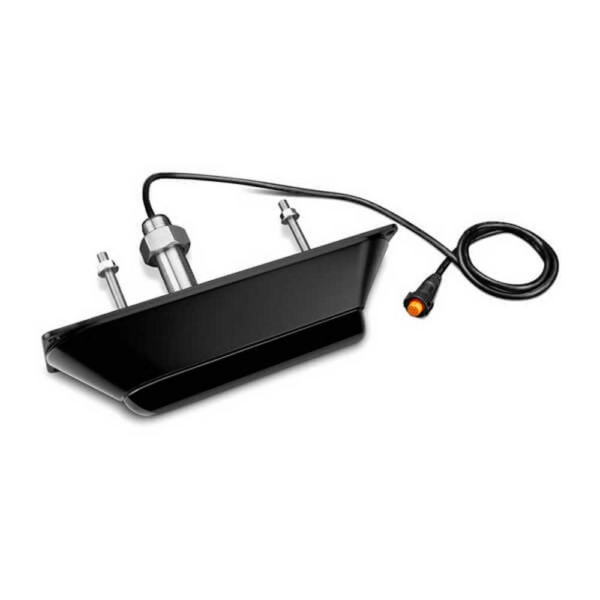

Garmin GT30-TH Transducer (010-01961-10)
Request a quote for latest pricing
Perfect for the shallow water fisherman who wants CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem. This 12-pin thru-hull transducer consistently displays clear definitions of objects, structure, and fish below and to each side of the boat.
Features:
- Built-in fast response temperature sensor
- Power rating: 500 W per element (1,500 W total)
- Depth: 750 ft (ClearVü) and 500 ft left and right (SideVü)
- Operating frequency: CHIRP 455/800 kHz¹
- Suitable for hull deadrises less than 5 degrees
Pair it with your GCV™ 10 scanning sonar module.

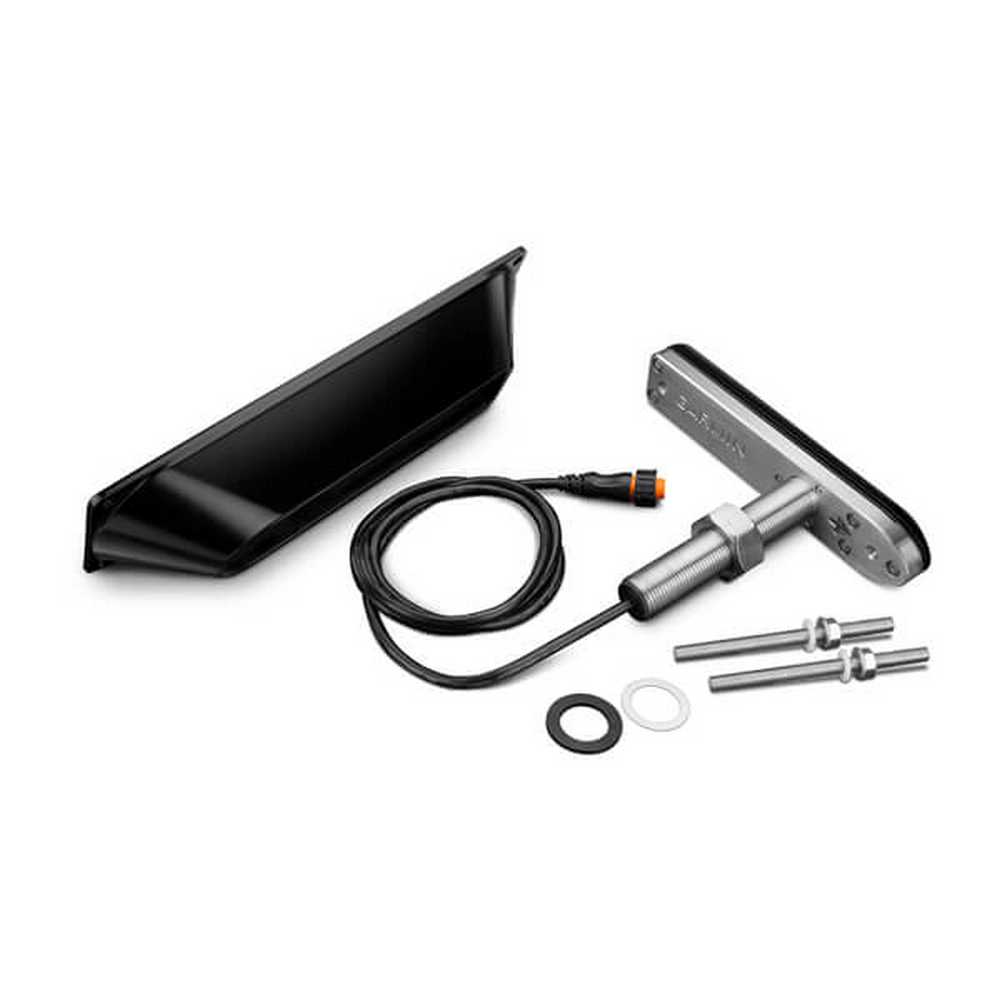

Includes:
- Transducer with stainless steel stem
- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware
- Installation instructions (follow carefully to avoid damaging your boat)
