- General:
- Transducer Frequency: Traditional (50/200 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
- Transducer Power: Traditional 600 W; ClearVü/SideVü 500 W
- Transducer Beamwidth:
- Traditional: 40°/10°
- ClearVü/SideVü: 2.0° x 51° @ 260 kHz and 1.4° x 29° @ 455 kHz
- Transducer Maximum Depth:
- Traditional: 1,500 ft.
- ClearVü: 1,000 ft.
- SideVü: 750 ft.
- Transducer Cable Length: 30 ft.
- Transducer Depth/Speed/Temperature: Depth and Temperature
- Transducer Number of Pins: 12-pin
- Transducer Supported Deadrise/Transom Angles: 0°-70° degree transom

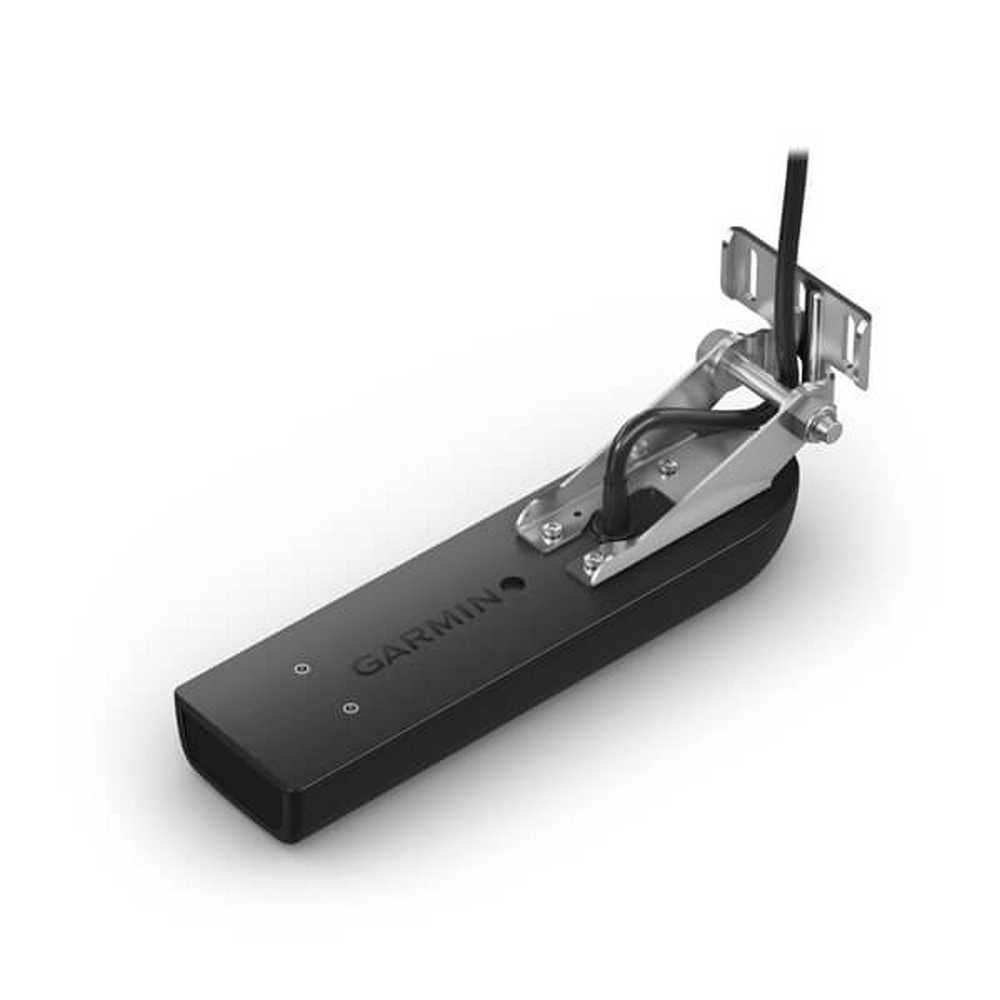

Garmin GT41-TM Transducer (010-01964-00)
Request a quote for latest pricing
Perfect for the coastal and offshore fisherman who want traditional sonar, chirp clearvü and chirp sidevü scanning sonar, this transom mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.
The chirp clearvü/sidevü elements have a power rating of 500 w per element (1,500 w total) and operating frequencies of 260/455 khz. The traditional sonar has a power rating of 600 w and operating frequencies of 50/200 khz. It also includes a built-in fast response temperature sensor.
GT41-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
