- General
- Transducer Frequency: CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
- Transducer Power: CHIRP Traditional 600 W; ClearVü/SideVü 500 W
- Transducer Beamwidth:
- Traditional: 24°-13°
- ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
- Transducer Maximum Depth:
- Traditional: 1,800 ft.
- ClearVü: 1,000 ft.
- SideVü: 750 ft.
- Transducer Cable Length: 30 ft.
- Transducer Depth/Speed/Temperature: Depth and Temperature
- Transducer Number of Pins: 12-pin
- Transducer Supported Deadrise/Transom Angles: 0°-70° degree transom

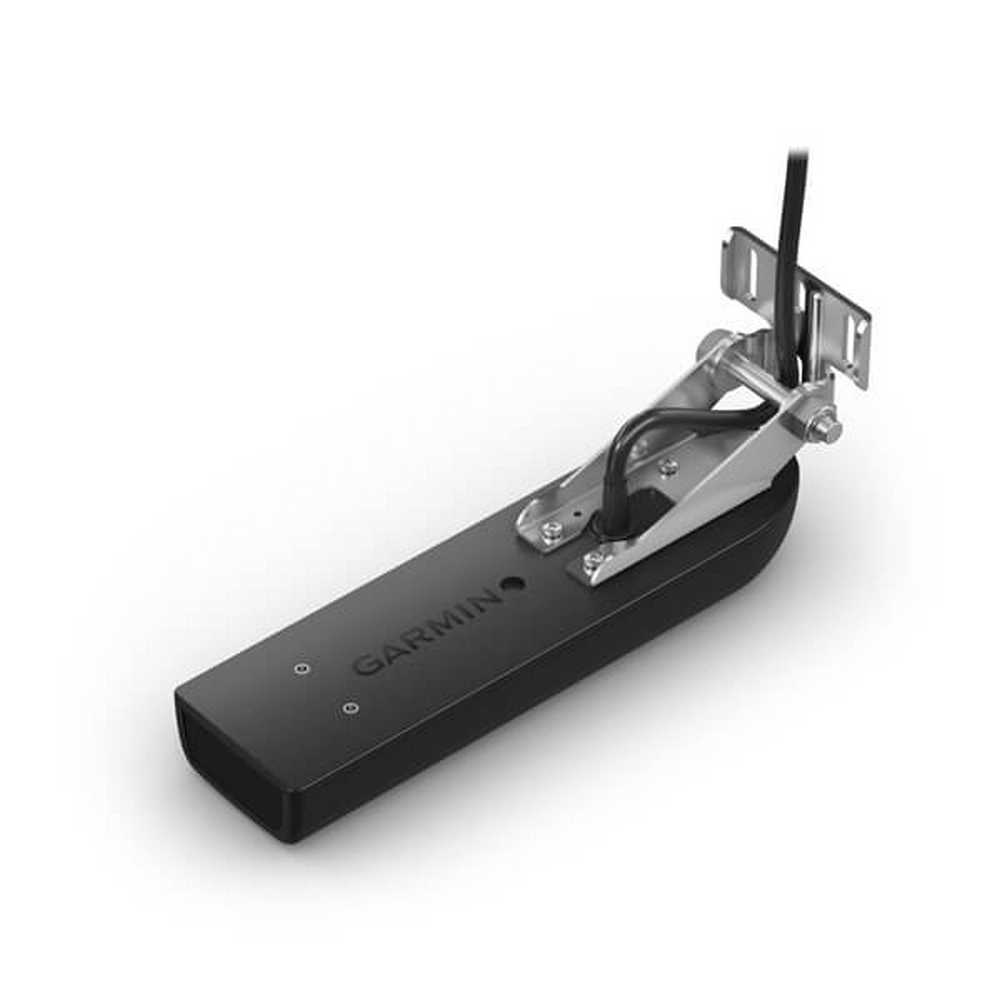

Garmin GT51M-TM Transducer ( 010-01966-00)
Request a quote for latest pricing
Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü, and CHIRP SideVü scanning sonar, this transom-mounted transducer consistently displays clear and crisp fish arches with superior target separation, as well as clear pictures of objects, structure, and fish that pass below and to each side of your boat. It is optimized for rough sea conditions.
Specifications:
- CHIRP ClearVü/SideVü elements: Power rating of 500 W per element, operating frequencies of 260/455 kHz
- Traditional CHIRP sonar: Power rating of 600 W, operating frequencies of mid-band CHIRP 80-160 kHz
- Includes a built-in fast response temperature sensor
GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
