- Transducer Frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz)
- Transducer Power: Traditional 350 W; ClearVü/SideVü 500 W
- Transducer Beamwidth:
- Traditional CHIRP: 24-16
- ClearVü: 0.52° x 52° @ 1000 kHz, 0.64° x 35° @ 800 kHz, 1.1° x 52° @ 455 kHz
- SideVü: 0.52° x 52° @ 1000 kHz, 0.64° x 35° @ 800 kHz, 1.1° x 52° @ 455 kHz
- Transducer Maximum Depth:
- Traditional: 800 ft (freshwater)
- ClearVü: 400 ft
- SideVü: 500 ft
- Transducer Cable Length: 25 ft
- Transducer Depth/Speed/Temperature: Depth and Temperature
- Transducer Number of Pins: 12
- Transducer Supported Deadrise/Transom Angles: 0°-70° degree transom (GT56UHD-TM)
- Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm

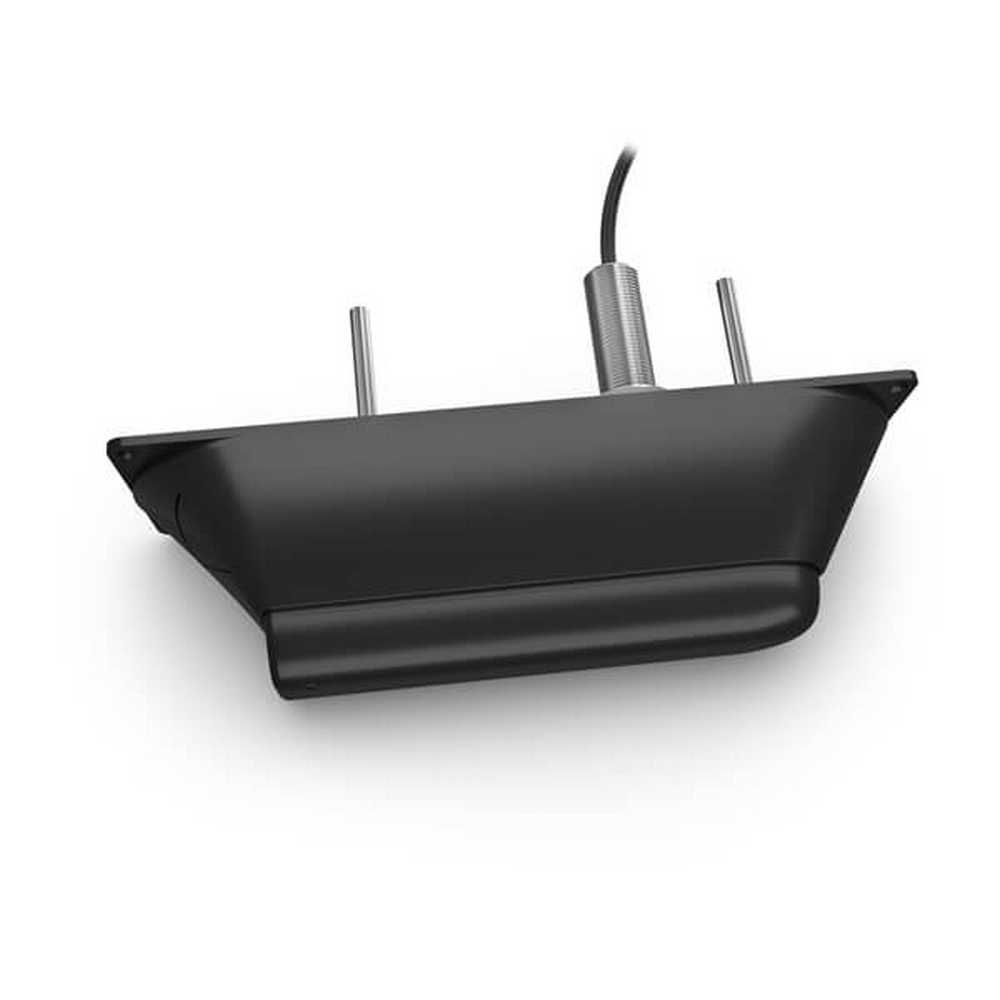

Garmin GT56UHD-TH Transducer (010-02732-10)
Request a quote for latest pricing
Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.
Ultra high-definition clearvü scanning sonar:
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.
High wide chirp traditional sonar:
Experience remarkably clear target separation and definition up to 800’ below your boat.
Multiple scanning sonar frequencies:
Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.
Vivid color palettes:
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Mounting options:
Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.
