- Dimension: 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″)
- Display Size: 4″ diagonal
- Display Resolution: 320 x 240 pixels
- Display Type: Color QVGA display
- Weight: 247 g (8.71 oz)
- Waterproof: IPX7
- Mounting Options: Flat or Flush
- Glass Bonded Display: Yes
- Temperature Range: From 5° to 158°F (from -15° to 70°C)
- NMEA 0183 Compatible: Yes
- Power Consumption: 3 W max
- Compass Safe Distance: 209 mm (8.25″)
- Auto-On: Yes
- Vessel & Marine Parameters: N/A
- User Profiles: Yes
- Backlight: Yes

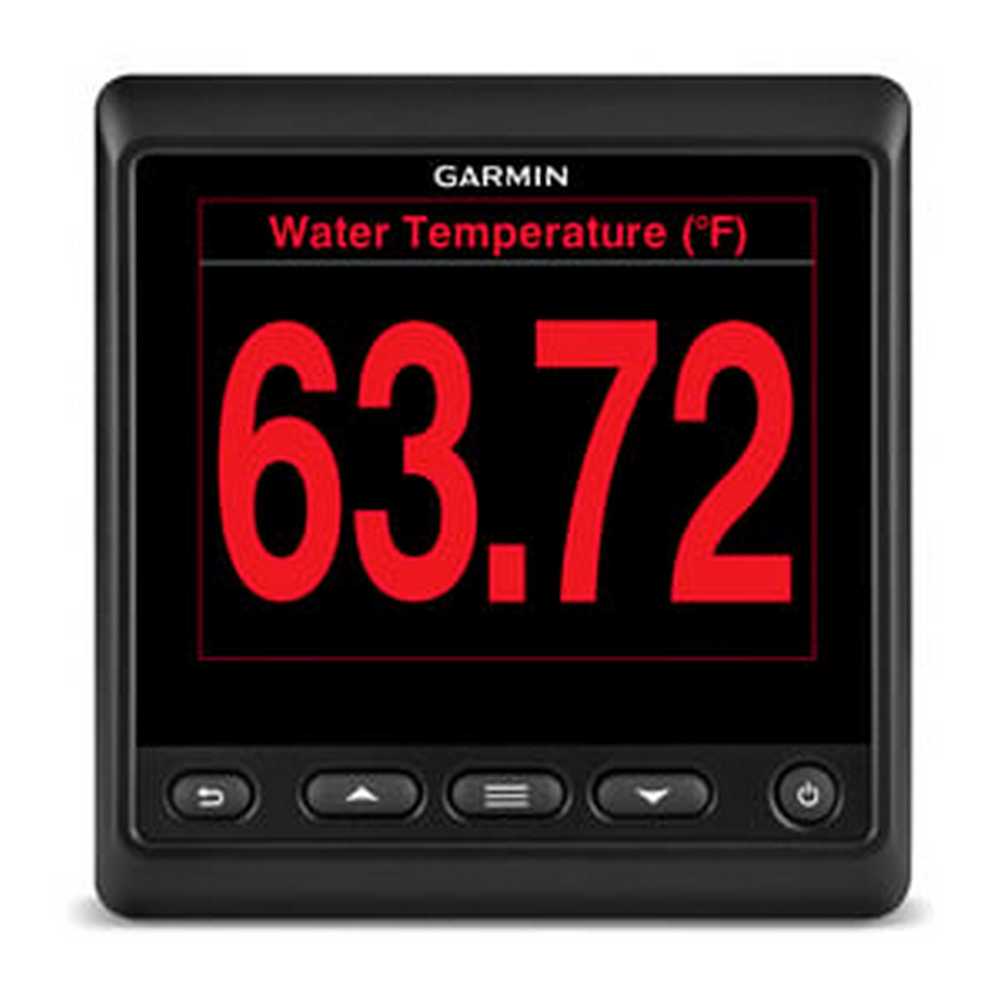

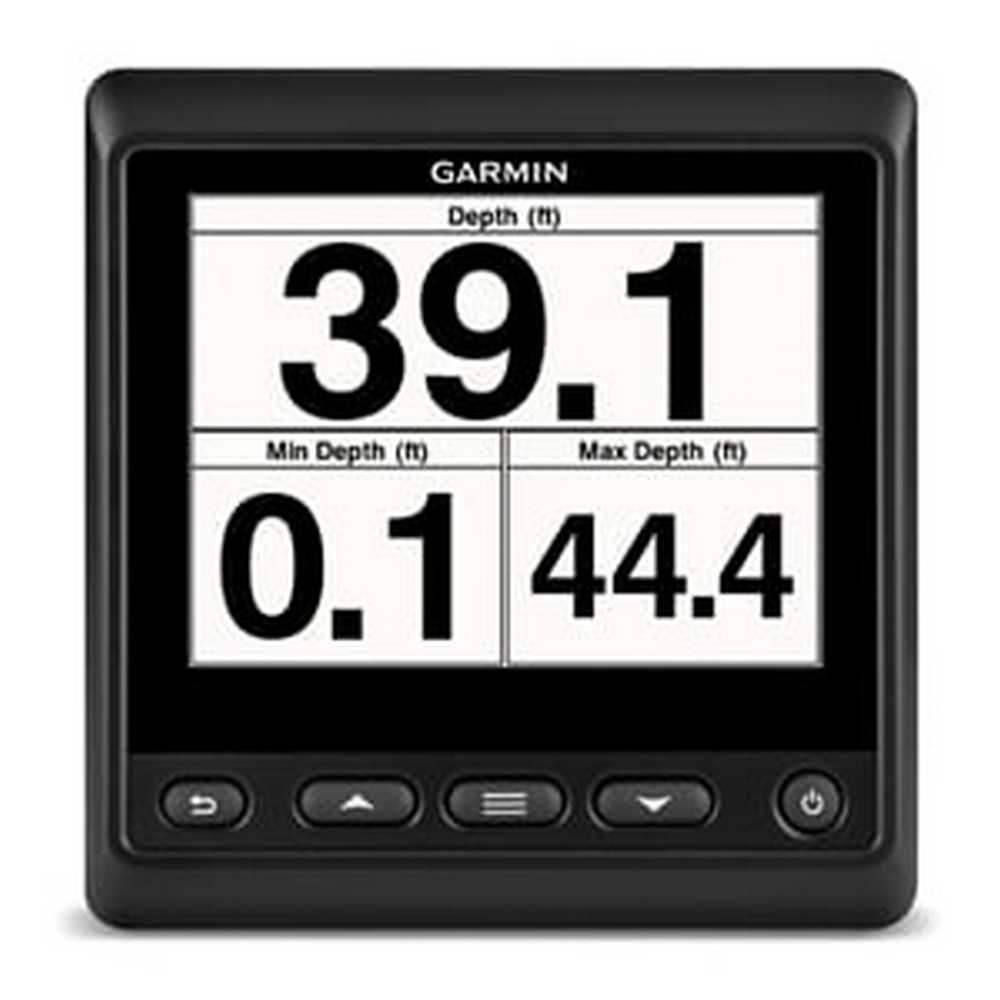

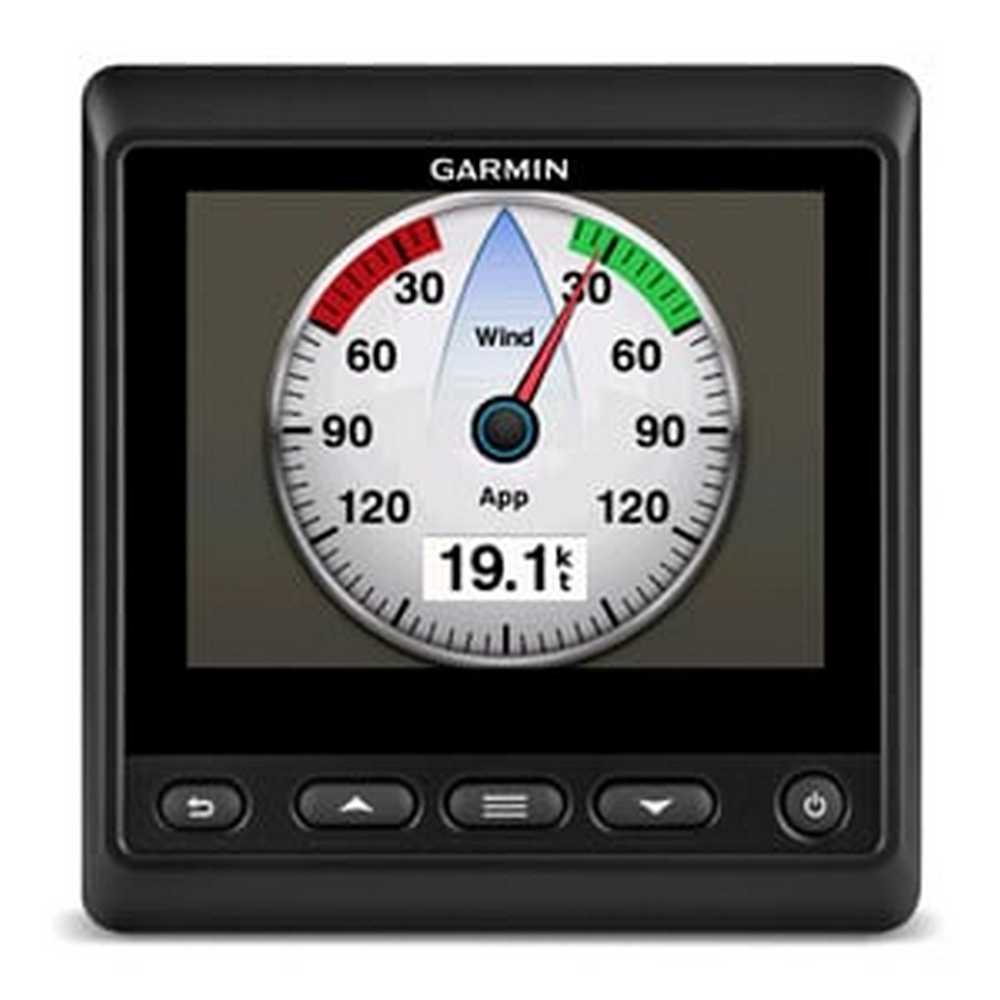

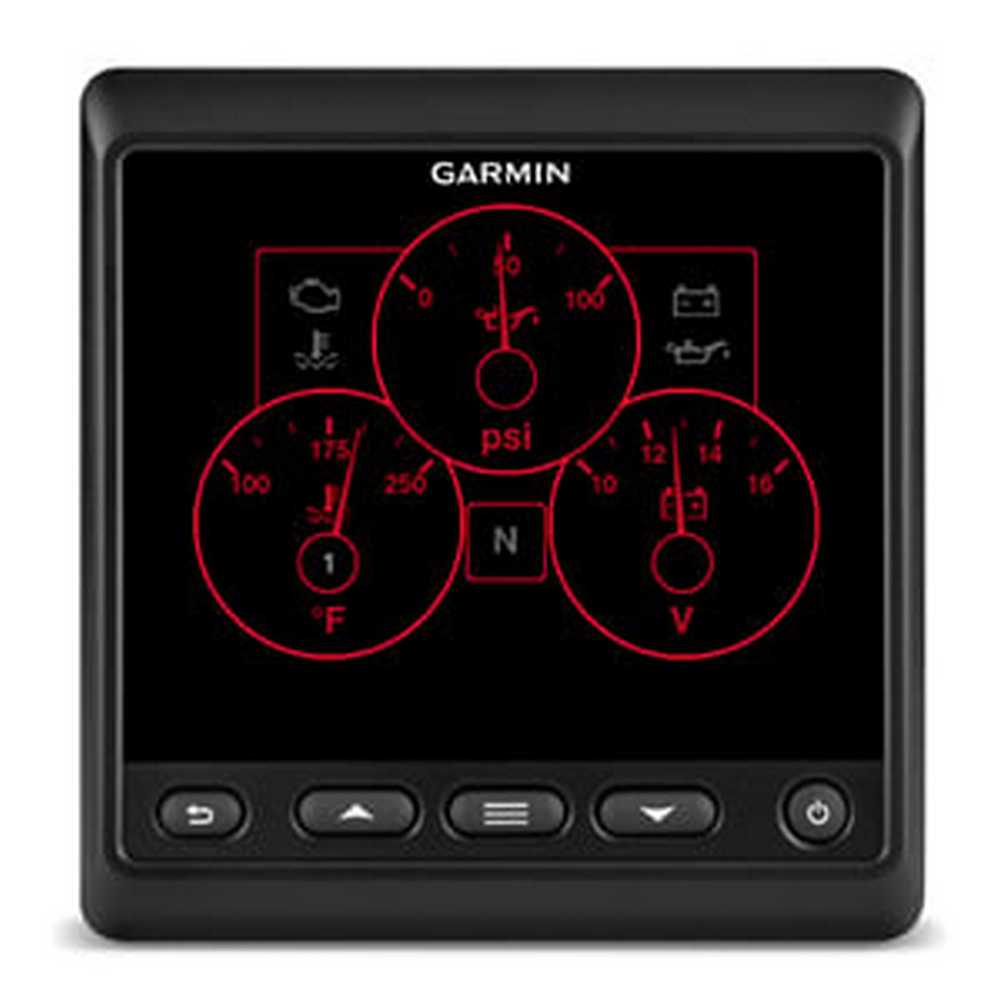

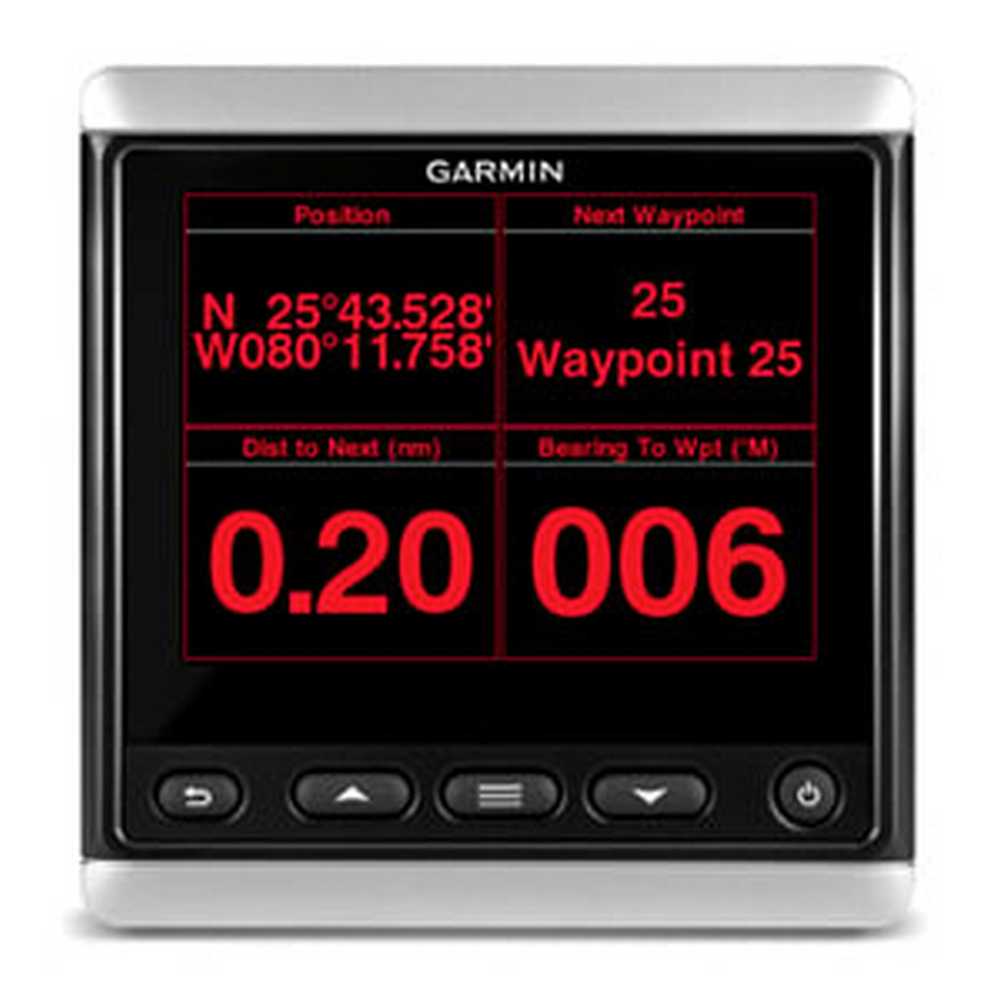

GMI 20 Marine Instrument (010-01140-00)
Request a quote for latest pricing
Perfectly Designed for Power and Sail Vessels
- Marine instrument display clearly shows depth, speed, wind and 100+ marine and vessel parameters
- Large, bright 4” color glass-bonded lens display with anti-glare finish
- Easy to read from a distance and 170 degree viewing angle
- Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes
- Enhanced daylight readability with new high contrast color option
The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4” color display with extra large digits is easy to read at a distance and 170 degree viewing angle.
