- General:
- Dimension: Pedestal: 16.6″ x 14.3″ x 10.7″ (42.1 x 36.4 x 27.1 cm); Full assembly: 15.9″ height x 51.8″ diameter (40.3 cm height x 131.4 cm diameter)
- Weight: Array: 11.4 lb (5.2 kg); Pedestal: 34.7 lb (15.7 kg)
- Waterproof: IPX6
- Max Wind Load: 80kt
- Antenna Length: 48″ (121.92 cm)
- Rotation Speed (RPM): 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
- Beam Width: 1.8° horizontal, 23° vertical
- Max Range: 96 nm
- Minimum Range: 6 meters
- Radar Type: Open-Array
- Electrical Features:
- Power Input: 10-32 V DC
- Transition Power: 120 W
- Radar Features:
- Dual Range Support: Yes
- Radar Overlay Support: Yes
- Dual Radar: Yes
- Autobird: Yes
- Dynamic Auto Gain: Dynamic
- MARPA Target Track: Yes (requires heading sensor, sold separately)
- Echo Trail: Yes
- MotionScope: Yes
- Programmable Antenna Parking: Yes
- Target Size: Yes
- Scan: Yes

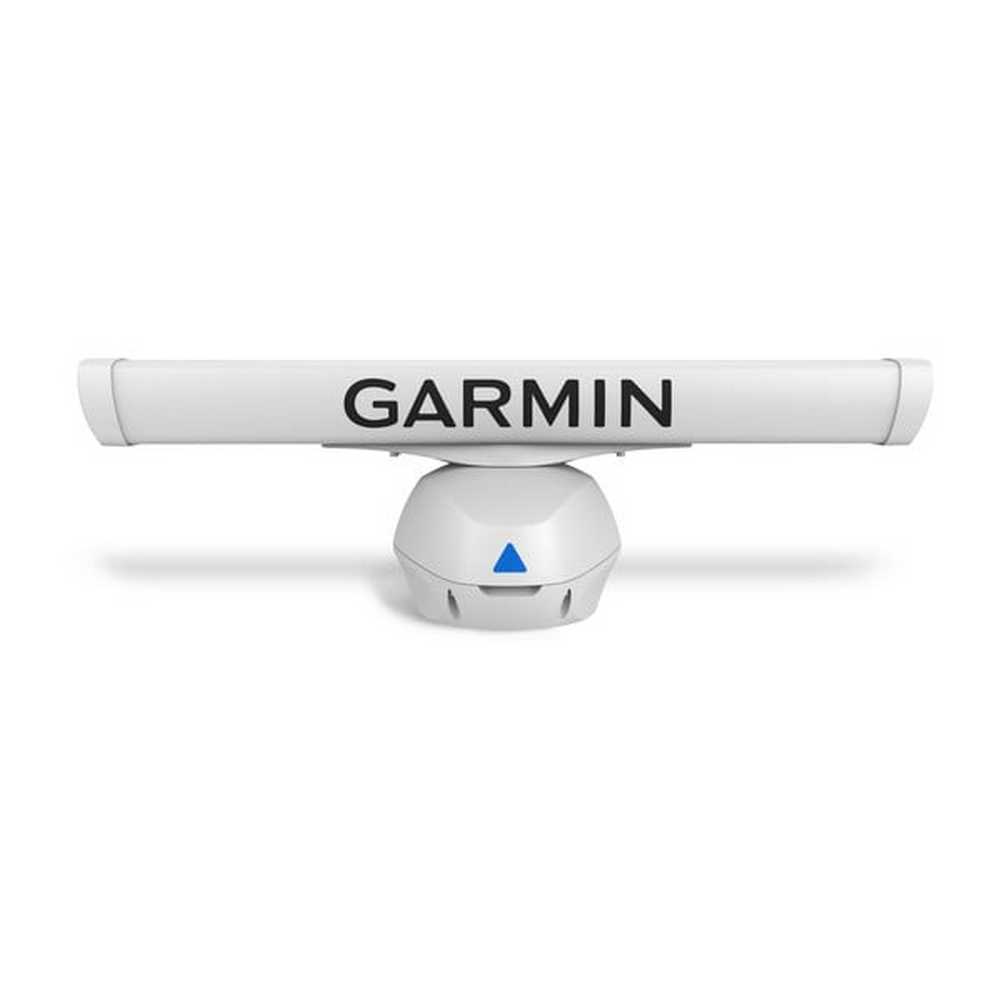

GMR Fantom 124 Open Array Radar (K10-00012-19)
Request a quote for latest pricing
This open-array radar highlights moving targets in color and gives you excellent close- and long-range target detection — even in fog or rain.
