- General:
- Dimension: 25.4″ x 9.8″ (64.5 cm x 24.9 cm)
- Weight: 21 lb (9.5 kg)
- Waterproof: IPX7
- Antenna Length: 23″ (58.42 cm)
- Rotation Speed (RPM): 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
- Beam Width: 3.7° horizontal, 25° vertical
- Max Range: 48 nm
- Minimum Range: 6 meters
- Radar Type: Radome
- Electrical Features:
- Power Input: 10-32 V DC
- Power Consumption: 3 W
- Max Power Consumption (Transmitting, Normal Mode): 25 W
- Transition Power: 40 W
- Radar Features:
- Dual Range Support: Yes
- Radar Overlay Support: Yes
- Dual Radar: Yes
- AutoBird: Yes
- Dynamic Auto Gain: Dynamic
- MARPA Target Track: Yes (requires heading sensor, sold separately)
- Echo Trail: Yes
- MotionScope: Yes

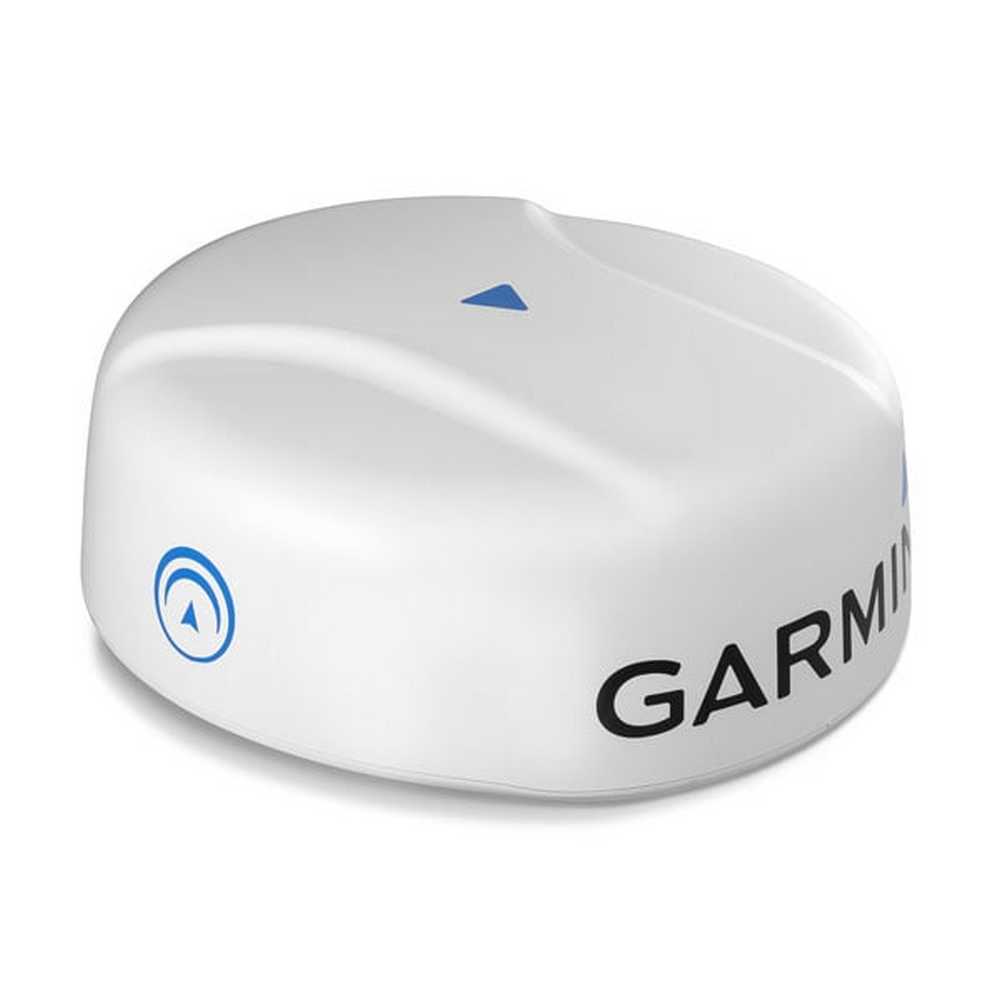

GMR Fantom 24 Dome Radar WIth Motionscope Technology (010-01707-00)
Request a quote for latest pricing
This 24” dome radar highlights moving targets in color and fully integrates with select Garmin chartplotters.
