- General:
- Dimension: 6′ array: 76.25″ x 5″ x 6.75″ (193.6 x 12.7 x 17.1 cm); Pedestal: 20.5″ x 12.75″ x 12.5″ (52 x 32.4 x 31.8 cm)
- Weight: Array: 16.9 lb (7.7 kg); Pedestal: 47.1 lb (21.4 kg)
- Waterproof: IPX6
- Max Wind Load: 80kt
- Antenna Length: 72″ (182.88 cm)
- Rotation Speed (RPM): 24 and 48 rpm
- Beam Width: 1.1° horizontal, 23° vertical
- Max Range: 72 nm
- Minimum Range: 20 meters
- Radar Type: Open-Array
- Electrical Features:
- Power Input: 10-32 V DC
- Transition Power: 12 kW
- Radar Features:
- Dual Range Support: Yes
- Radar Overlay Support: Yes
- Dual Radar: Yes
- AutoBird: Yes
- Dynamic Auto Gain: Dynamic
- MARPA Target Track: Yes (requires heading sensor, sold separately)
- Echo Trail: Yes
- Programmable Antenna Parking: Yes
- Target Size: Pulse Expansion

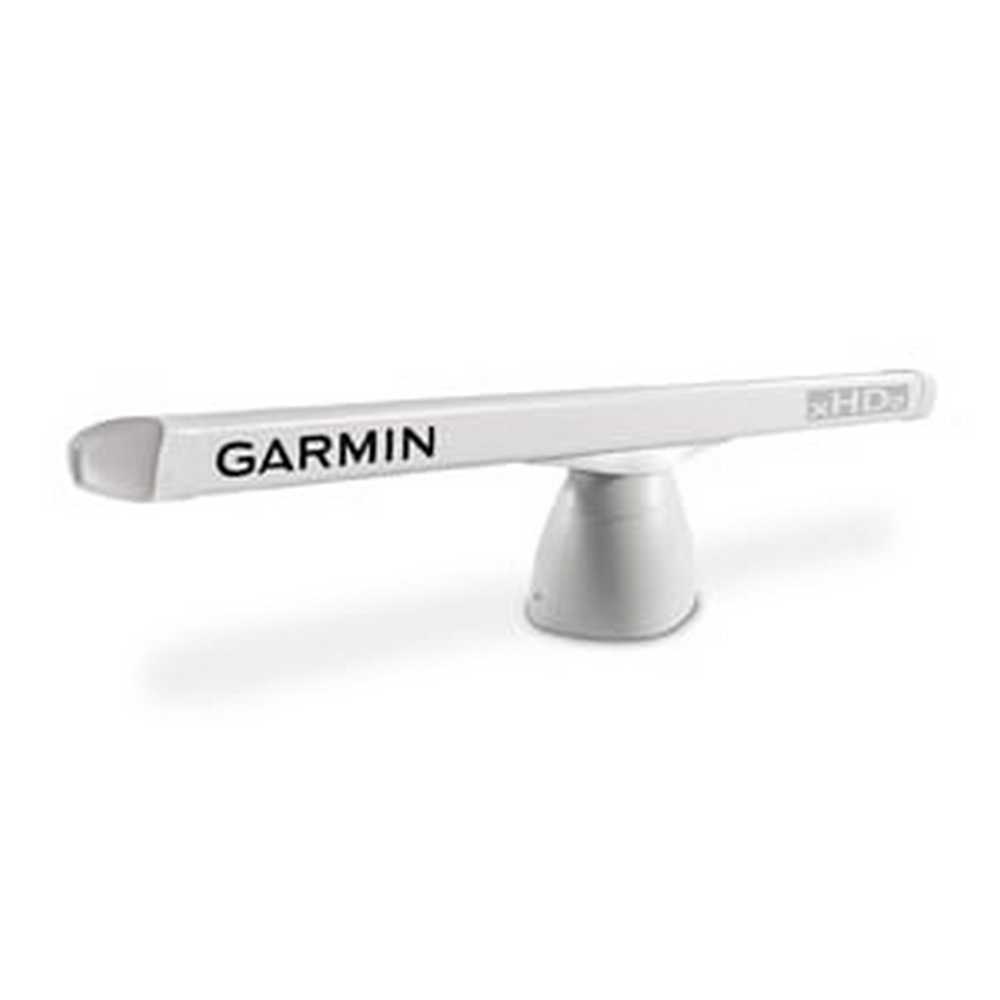

GMR1226 xHD2 Open Array Radar and Pedestal (K10-00012-12)
Request a quote for latest pricing
6’ Open-Array Radar with 12 kW of Power
This high-definition open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited, or no-visibility conditions.
