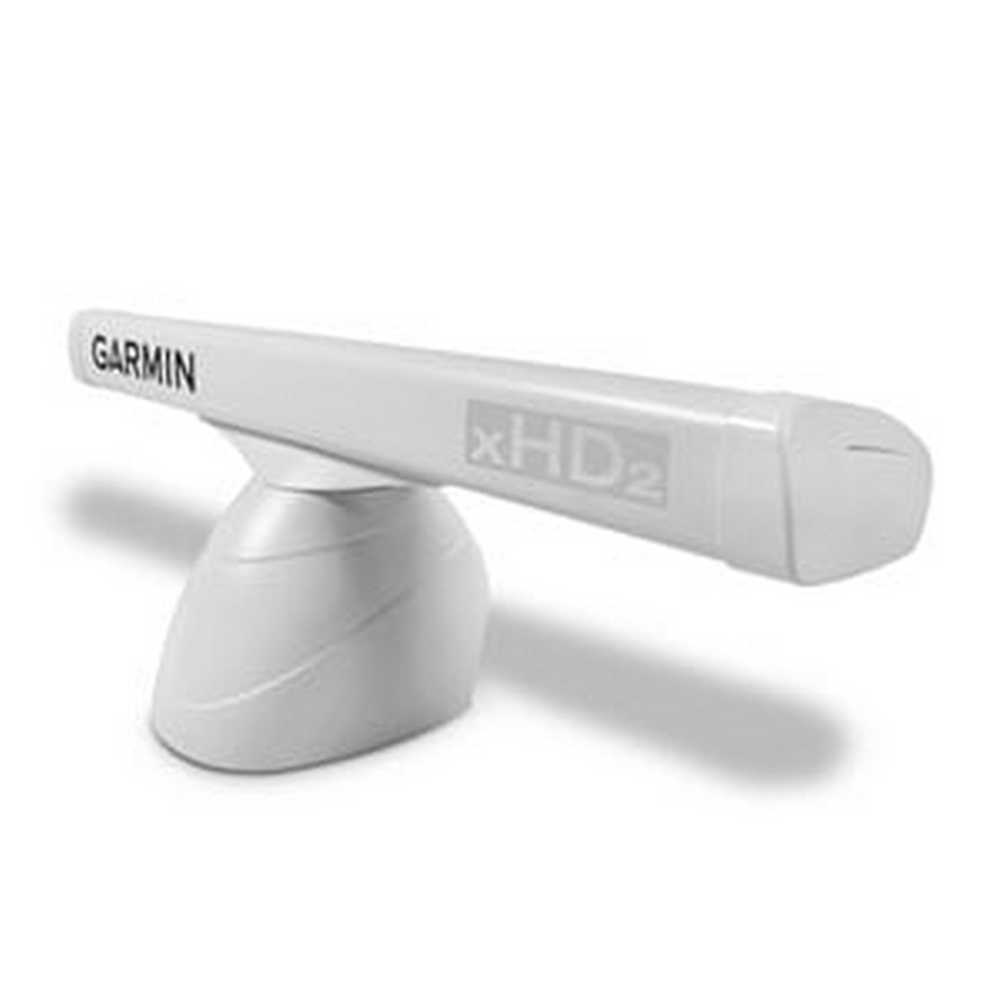

GMR424 xHD2 Open Array Radar and Pedestal (K10-00012-08)

Request a quote for latest pricing

This high-definition open-array radar is perfect for cruising and fishing offshore, overnight, and in foggy, limited, or no-visibility conditions—especially on yachts and sport fishing boats under 40 feet.

Transfer data via AIS channel 87B (161.975MHz) & 88B (162.025MHz)
Dual baud rate: 4800 or 38400
RS-232, 422 Input/Output Port
Simple connection through RS-232, 422
LED display for easy status check-up
Enable to transceive SRM (Safety Related Message)

Frequency: 156.025MHz ~ 162.025MHz, Default channel 88B (162.025MHz), Default channel 87B (161.975MHz)
Channel Spacing: 25kHz
VHF ANT Connector: TNC
GPS ANT Connector: BNC
Antenna Impedance: 50Ω
Frequency Stability Rate: ±10PPM (-20℃ ~ +60℃)
Data Rate: 9600 bps
Power Supply: DC 12V ~ 34V (DC 12V, 1.2A Max.)
Operating Temperature: -15℃ ~ +55℃
Output Power: 2W (33dBm ± 1.5dB)
Modulation: GMSK
Sensitivity: -107dBm
Adjacent Channel: 70dB
Cochannel: 10dB
IMD: 65dB
Blocking: 84dB
