- General:
- Dimension: 181 x 115 x 17 mm (7.12” x 4.53” x .67”)
- Display Size: 150 x 83 mm (6” x 3.27”)
- Display Type: Inverted LCD, monochrome
- Weight: 380 g (13.4 oz)
- Waterproof: IPX7
- Mounting Options: Flush
- Glass Bonded Display: Yes
- Temperature Range: From 5° to 158°F (from -15° to 70°C)
- Electrical Features:
- Power Consumption: 0.36 W (day); 0.4 W (night)
- Instrument Features:
- Auto-On: Yes
- User Profiles: Yes
- Note: For NMEA 0183 compatibility, data must be bridged over NMEA 2000 from another device (no direct NMEA 0183 connection).

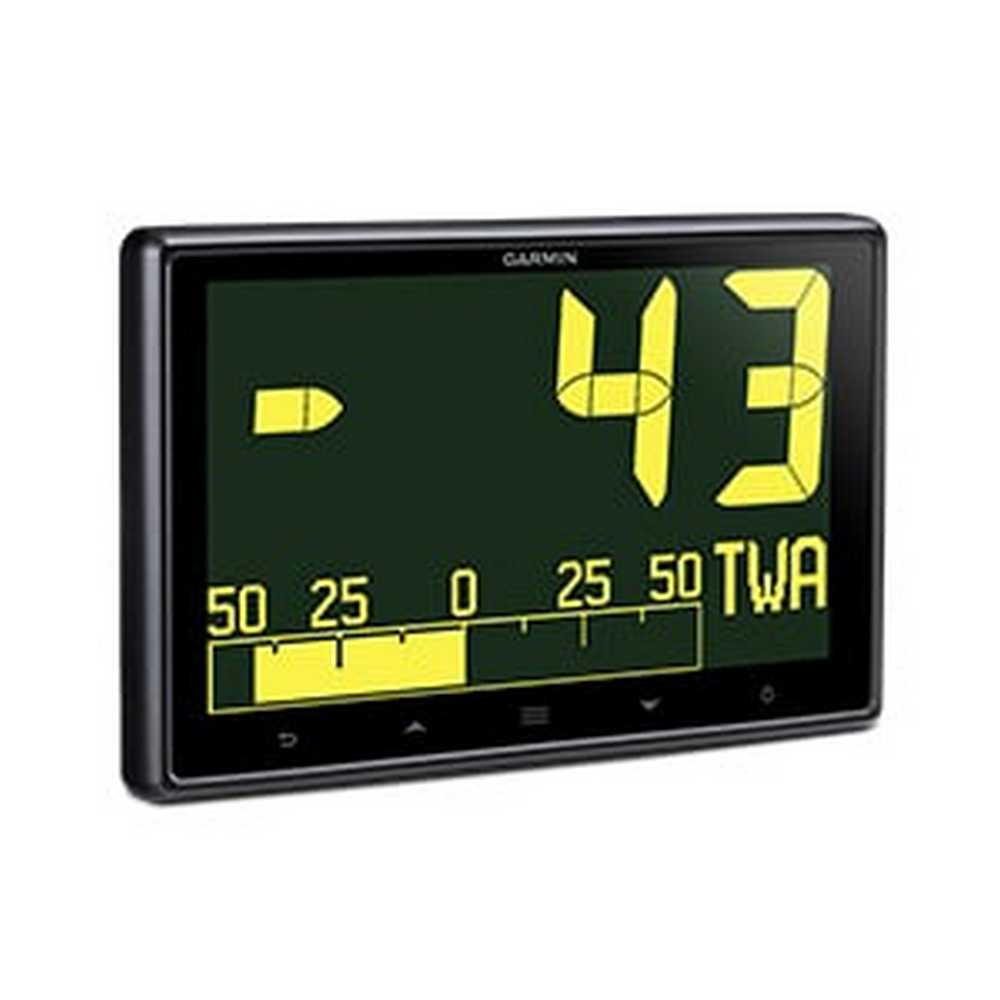

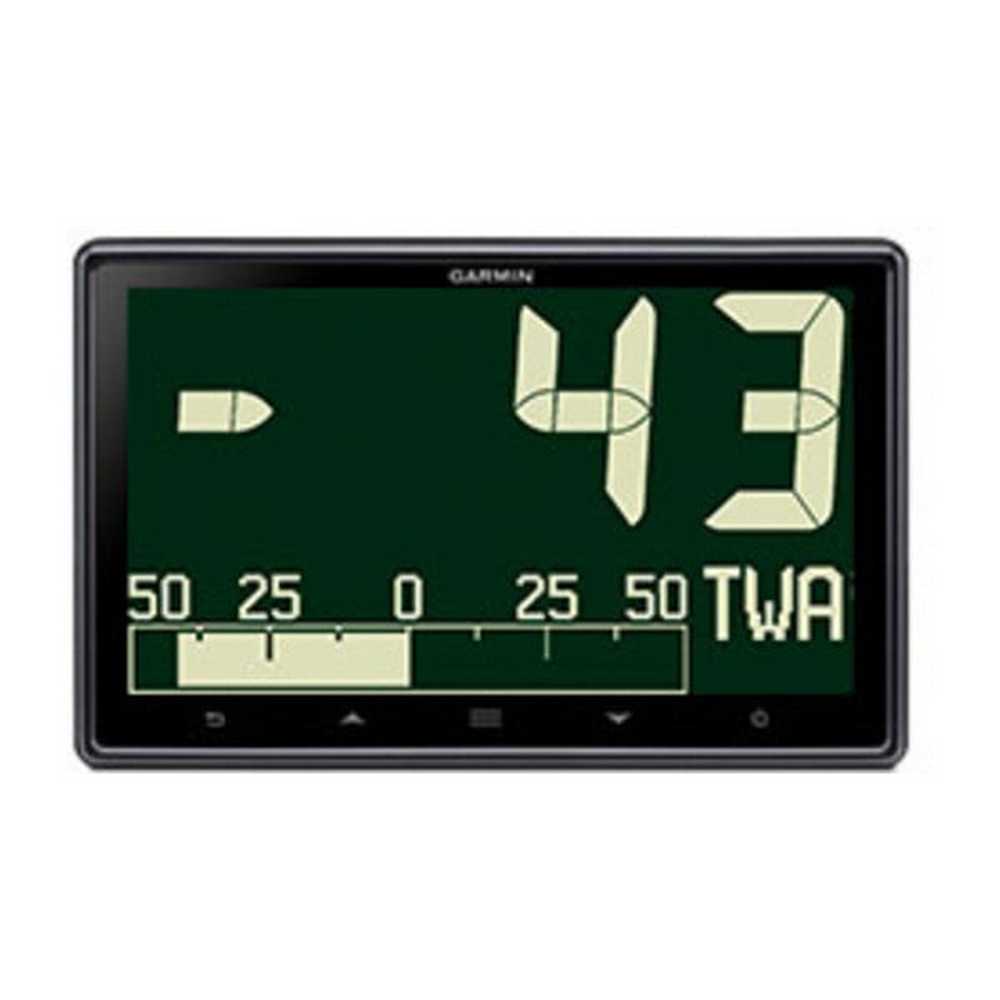

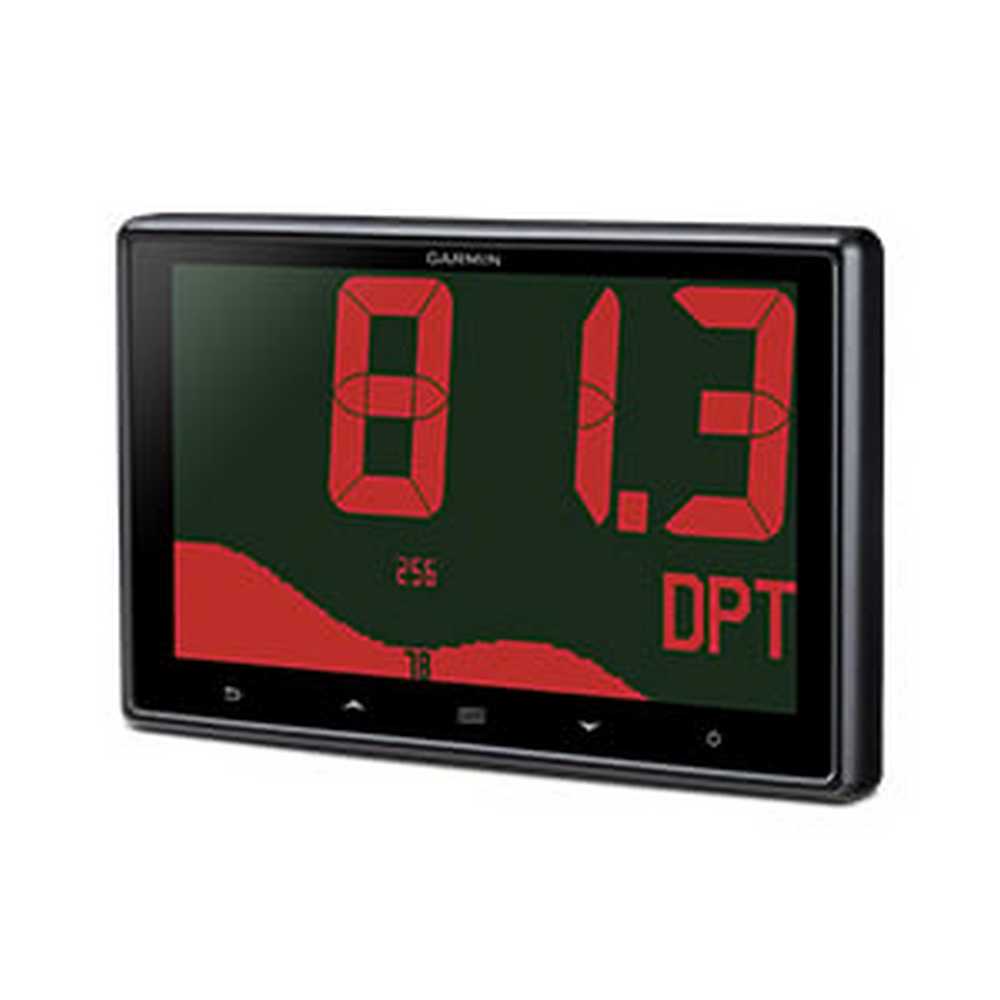

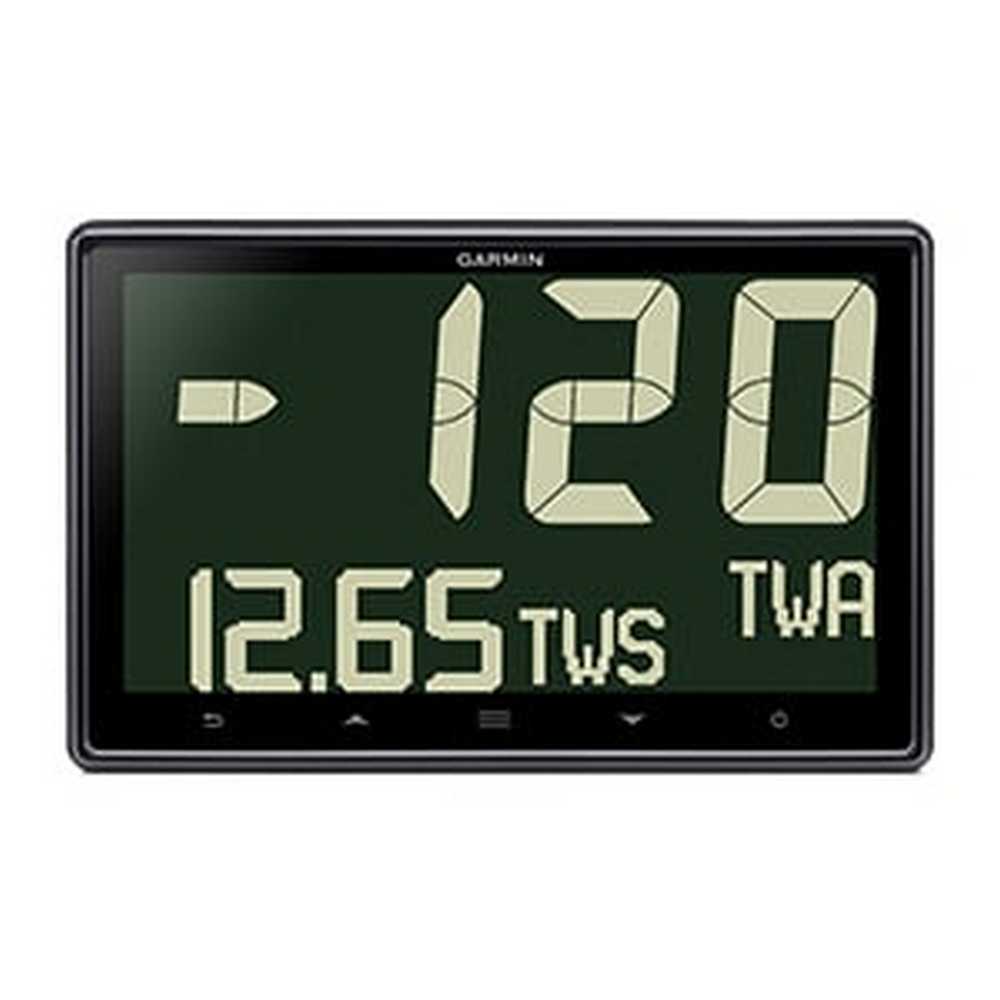

GNX™ 120 7-inch Large Format Marine Instrument (010-01395-00)
Request a quote for latest pricing
- High-precision glass-bonded backlit LCD display avoids fogging
- Bold 2-inch (51 mm) digits are the largest digits in class
- Provides the data necessary to make confident decisions
- Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
- Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices
