- General:
- Dimension: 249 x 153 x 19 mm (9.8” x 6.02” x .75”)
- Display Size: 207 x 116 mm (8.15” x 4.57”)
- Display Type: Inverted LCD, monochrome
- Weight: 820 g (28.9 oz)
- Waterproof: IPX7
- Mounting Options: Flush
- Glass Bonded Display: Yes
- Temperature Range: From 5° to 158°F (from -15° to 70°C)
- Electrical Features:
- Power Consumption: 0.36 W (day); 0.4 W (night)
- Instrument Features:
- Auto-On: Yes
- User Profiles: Yes
- Note: NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)

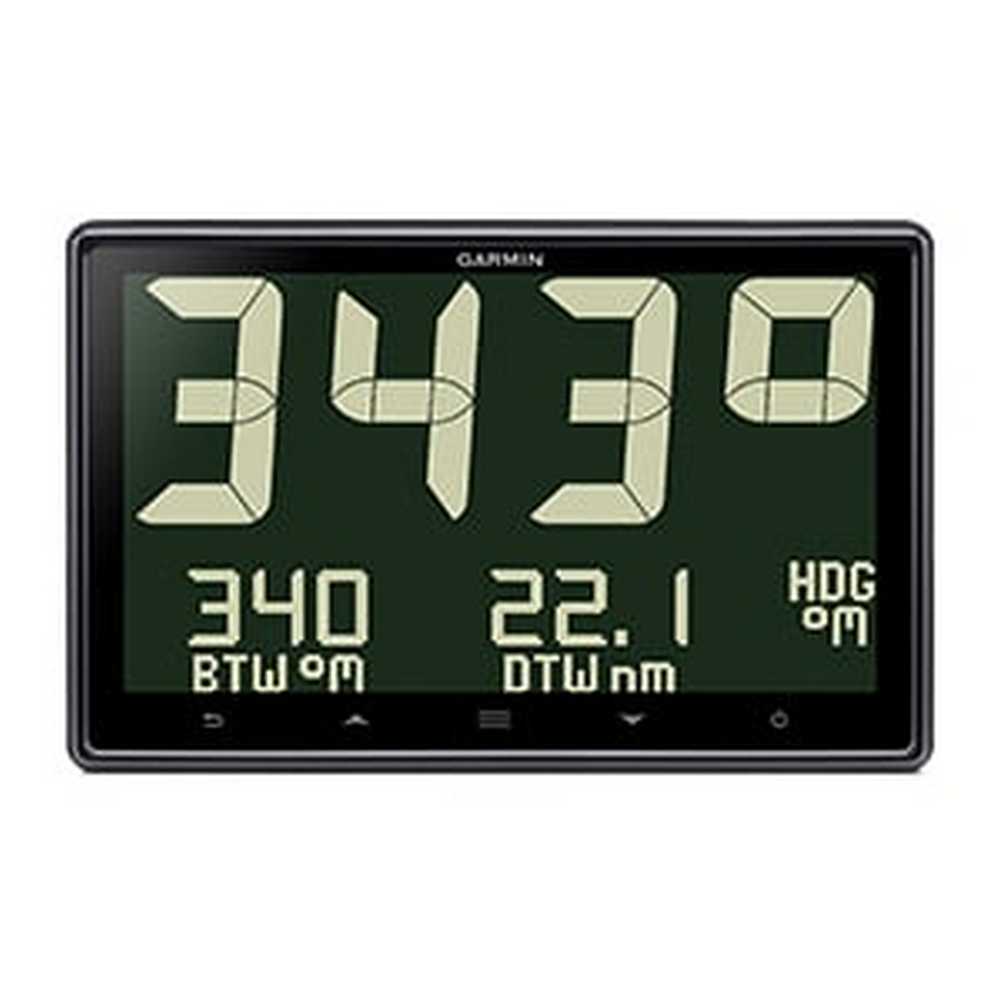

GNX™ 130 10-inch Large Format Marine Instrument ( 010-01396-00)
Request a quote for latest pricing
Easy-to-read With the Largest Digits in its Class.
Features:
- High-precision glass-bonded backlit LCD display avoids fogging.
- Bold 2.75-inch (70 mm) digits are the largest digits in class.
- Provides the data necessary to make confident decisions.
- Displays more than 50 marine and boat parameters for wind, sea, and vessel conditions.
- Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices.
