- Dimensions (D x H): 3 19/32″ x 1 15/16″ (91.6 mm x 49.5 mm)
- Weight: 7.1 oz (201 g)
- Cable Length: 30 ft (9.14 m)
- Temperature Range: -22° to 176° F (-30° to 80° C)
- Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
- Compass-Safe Distance: 0.5″ (12.7 mm)
- Power Source Input: 8-32V, unregulated
- Input Current: 150 mA at 12 Vdc
- Position Accuracy, Typical Marine Use: < 50 cm, CEP 50%; < 1.0 meter, 88%

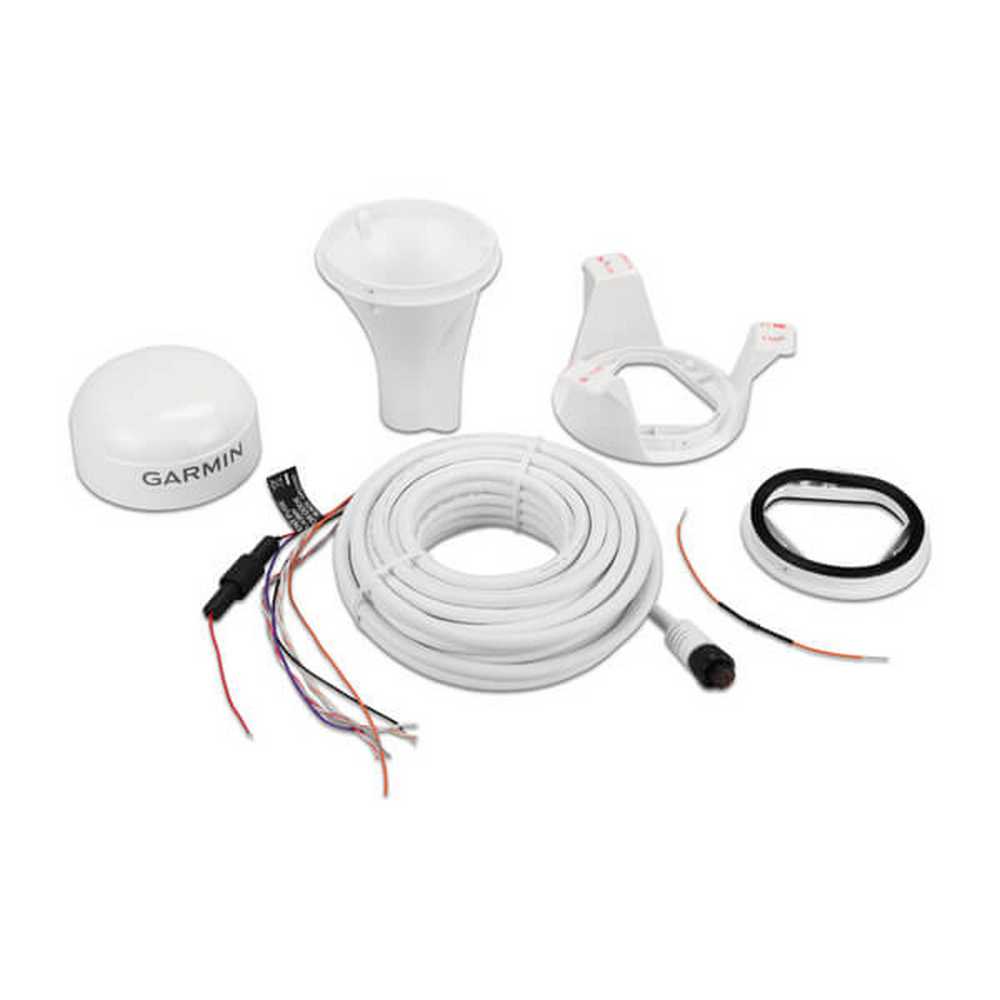

GPS 24xd HVS
Request a quote for latest pricing
Part Number: 010-02316-00
The GPS 24xd HVS position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.
