- Physical & Performance:
- Physical Dimensions: 176.0 mm x 190.0 mm x 66.0 mm (6.93” x 7.48” x 2.60”)
- Display Size: 2.83″ x 5.36″; 6.0″ diagonal (72.0 mm x 136.2 mm; 152.4 mm diagonal)
- Display Resolution: 480 x 800 pixels
- Display Type: WVGA display
- Weight: 816.0 g (1.80 lbs)
- Water Rating: IPX7
- GPS Receiver: GPS/GLONASS/BeiDou, internal
- NMEA 0183/RS422 Compatible: Yes
- Power Consumption: 7.6 W
- Voltage Range: 10V – 36V DC input
- Mounting Options: Bail or flush
- Maps & Memory:
- Preloaded Maps: GPSMAP 585 Plus, APAC (worldwide basemap); GPSMAP 585 Plus, w/g2, SEA (built-in SEA g2 chart)
- Accepts Data Cards: 2 standard SD
- Waypoints: 12,000
- Routes: 200
- Track Log: One 50,000 points active track; 100 saved tracks
- Chartplotter Features:
- Garmin Sonar Compatible: Yes
- Supports AIS: Yes
- Supports DSC: Yes
- Tide Tables: Yes
- Sonar Features & Specifications:
- Transmit Power: 600W (RMS)
- Sonar Frequency: 50/77/200kHz CHIRP (Low, Mid, High)
- ClearVü™: Built-in
- Scanning Sonar Frequency: CHIRP 260/455/800kHz
- Maximum Depth: 2,300 ft freshwater, 1,100 ft saltwater (depth capacity depends on water bottom type and conditions)
- Bottom Lock: Yes
- Water Temperature Log and Graph: Yes
- Split-screen Zoom: Yes
- Fish Symbol ID: Yes
- Sonar Recording: Yes
- Sonar History Rewind: Yes
- Connections:
- Transducer Connector Pin Numbers: 8
- 8-Pin Power/NMEA 0183 Connector: 1
- BNC for External GPS Antenna: 1

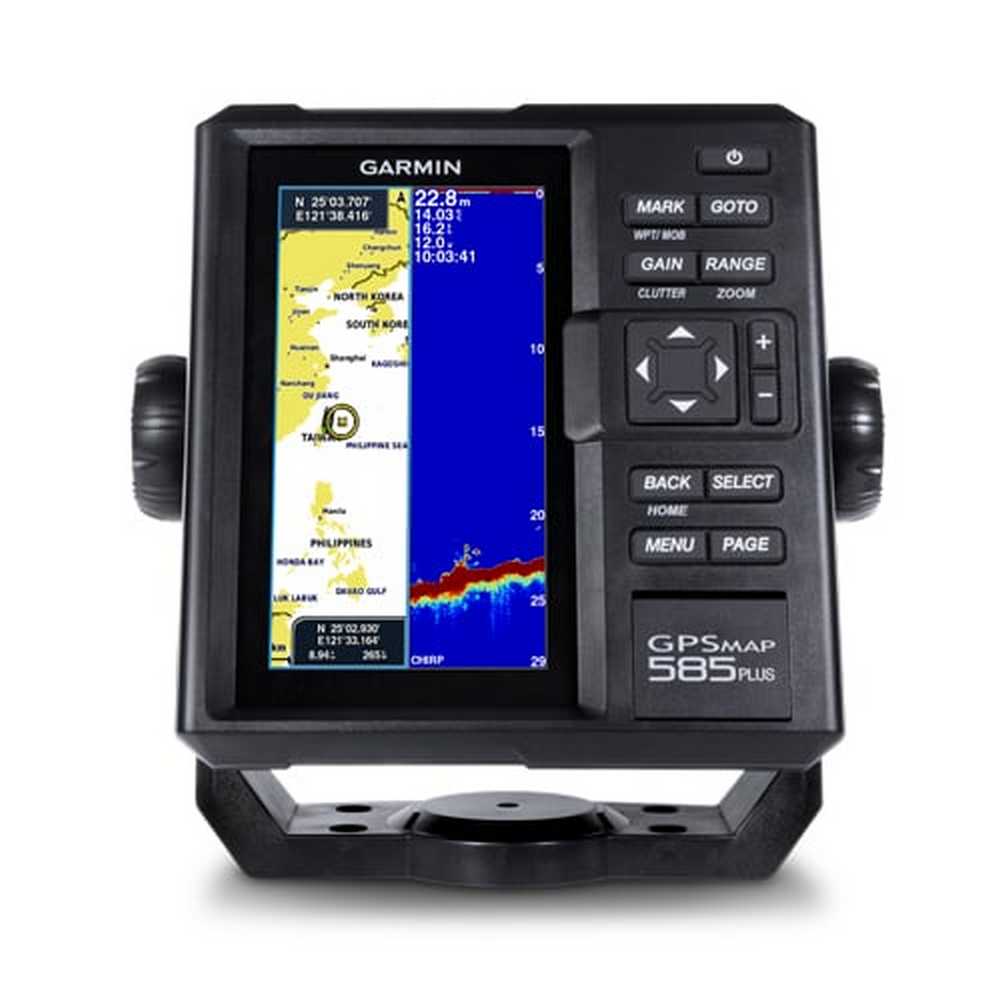

GPSMAP 585 Plus chart plotter and sonar combo
Request a quote for latest pricing
- Multi language support: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Indonesia Bahasa, Malaysia Bahasa, Vietnamese, Burmese, Thai.
- Available in 6-inch WVGA color, portrait mode display. Offers a keyed interface with dedicated buttons.
- CHIRP sonar sends a continuous sweep of frequencies ranging from low to high. CHIRP sonar is able to create crisper fish arches with better target separation.
- Built-in 600 W (RMS) CHIRP traditional sonar and CHIRP ClearVü scanning sonar gives a clearer picture of what’s below the boat as a photographic image with representation of objects, structure, and fish.
- Compatible with GPS, GLONASS, and BeiDou powerful positioning systems which allow quick and easy drops of up to 12,000 accurate waypoints to help you find your way back to your secret fishing hot spots.
- Free, easy-to-use Quickdraw Contours software instantly creates personalized HD fishing maps.
- GPSMAP 585 Plus supports typical NMEA0183 and RS422 communication with 3rd party sensors and accessories.
- Two standard SD™ card slots provide expandable memory for accessory map purchases such as LakeVü HD Ultra maps and BlueChart® g2 Vision® charts.
