- General:
- Dimensions:
- GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)
- LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
- Weight:
- GLS 10 sonar black box: 4.3 lbs (2.0 kg)
- LVS62 transducer with cable: 3.92 lbs (1.78 kg)
- LVS62 transducer without cable: 2.66 lbs (1.21 kg)
- Waterproof: IPX7
- Transducer Beamwidth: 20° x 135°
- Transducer Cable Length: 20 ft
- Transducer Number of Pins: 21
- Temperature Range:
- GLS 10 Black Box Operating: -15°C to 70°C
- LVS62 Transducer Operating: 0°C to 40°C
- Dimensions:
- Sonar Features & Specifications:
- Frequency: 265 – 550 kHz
- Max Depth:
- Freshwater (Down and Forward): 500’ (152.0 m)
- Saltwater (Down and Forward): 350’ (106.0 m)
- Connections:
- Garmin Marine Network Ports: 1 (small connector)
- Electrical Features:
- Power Input: 10-32 V
- Power Usage: 21 W typical, 58 W max
- Transmit Power: 500 W
- Fuse: 7.5 A
- Compass Safe Distance: 7″ (0.18 m)

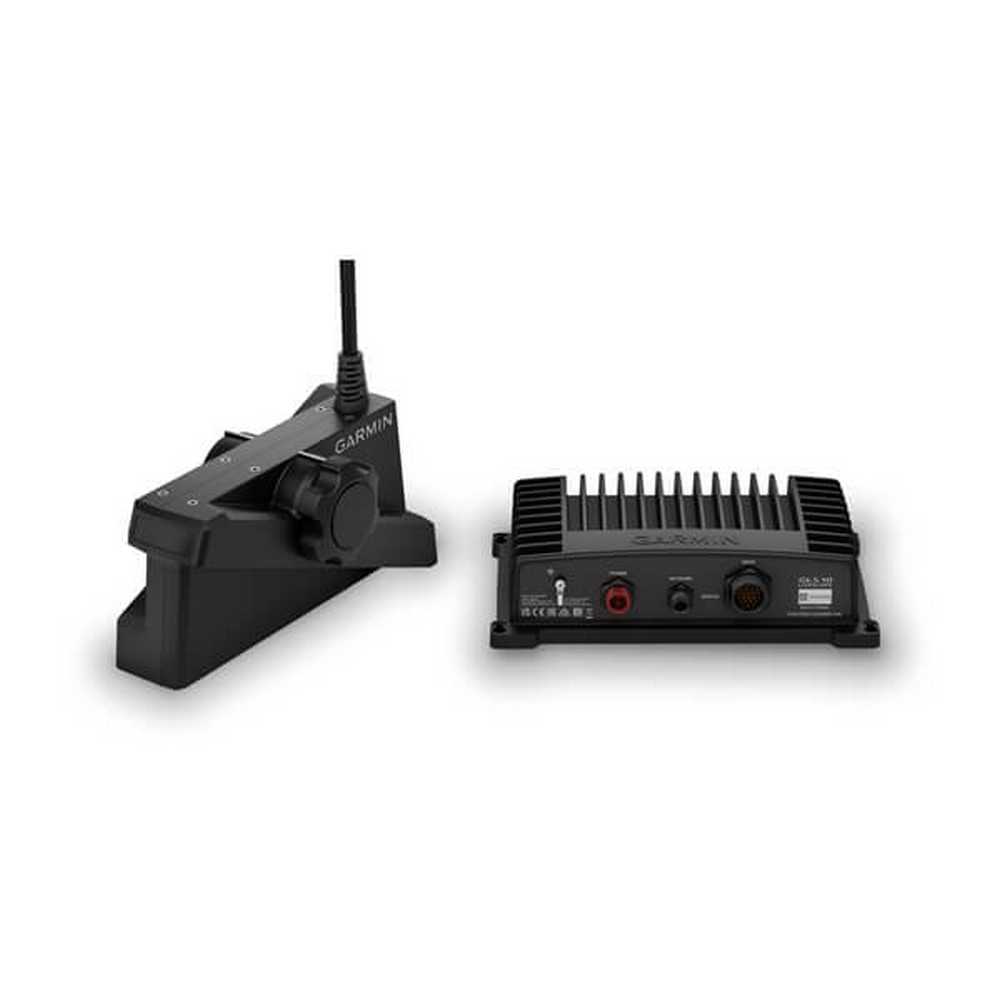

LiveScope XR System Fishfinder Module
Request a quote for latest pricing
- You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.
- Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.
- Find fish circling your boat with clear views close around your hull.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid color palettes.
- Don’t miss a thing with supported Forward, Down, and Perspective modes plus necessary mount.
