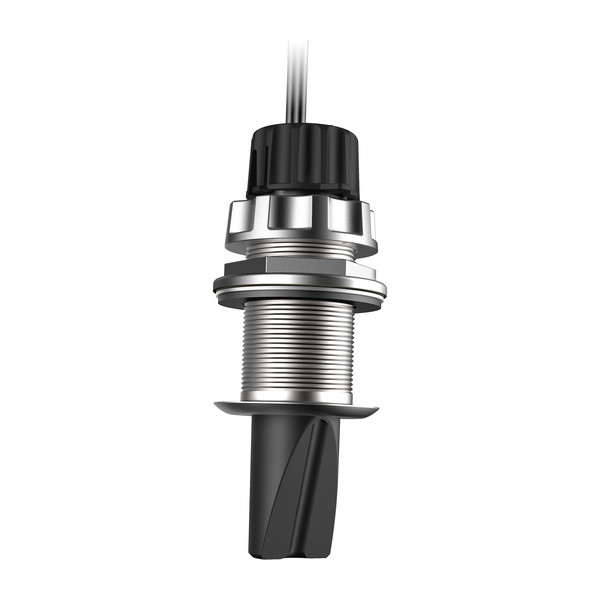

Panoptix PS51-TH Transducer
Request a quote for latest pricing
Part Number: 010-01753-00
Weight:
- Transducer only: 1.54 lb (0.7 kg)
- Thru-hull mounting hardware: 1.76 lb (0.8 kg)
Temperature Range:
- Operating: 32°F to 122°F (0°C to 50°C)
- Non-operating: -40°F to 158°F (-40°C to 70°C)
- Mounting options: Thru-hull
- Power consumption: <1.2A @ 12V
- Voltage range: 10-35 Vdc
- Frequencies supported: 417 kHz
- Maximum range: 8-10x the current depth, up to 300 ft
- LiveVü Forward
- Beam shape: 20° x 90°
- FrontVü
- Beam shape: 20° x 90°
