- Fully supports dual-frequency sonar (50/200 kHz) and dual-beam sonar (77/200 kHz).
- Displays fish targets at higher boat speeds with UltraScroll®.
- Provides real-time display of fish passing through the transducer beam with A-Scope.
- Minimizes clutter and maximizes targets using AutoGain Technology.
- Allows measurement of underwater object depths with an adjustable depth line.

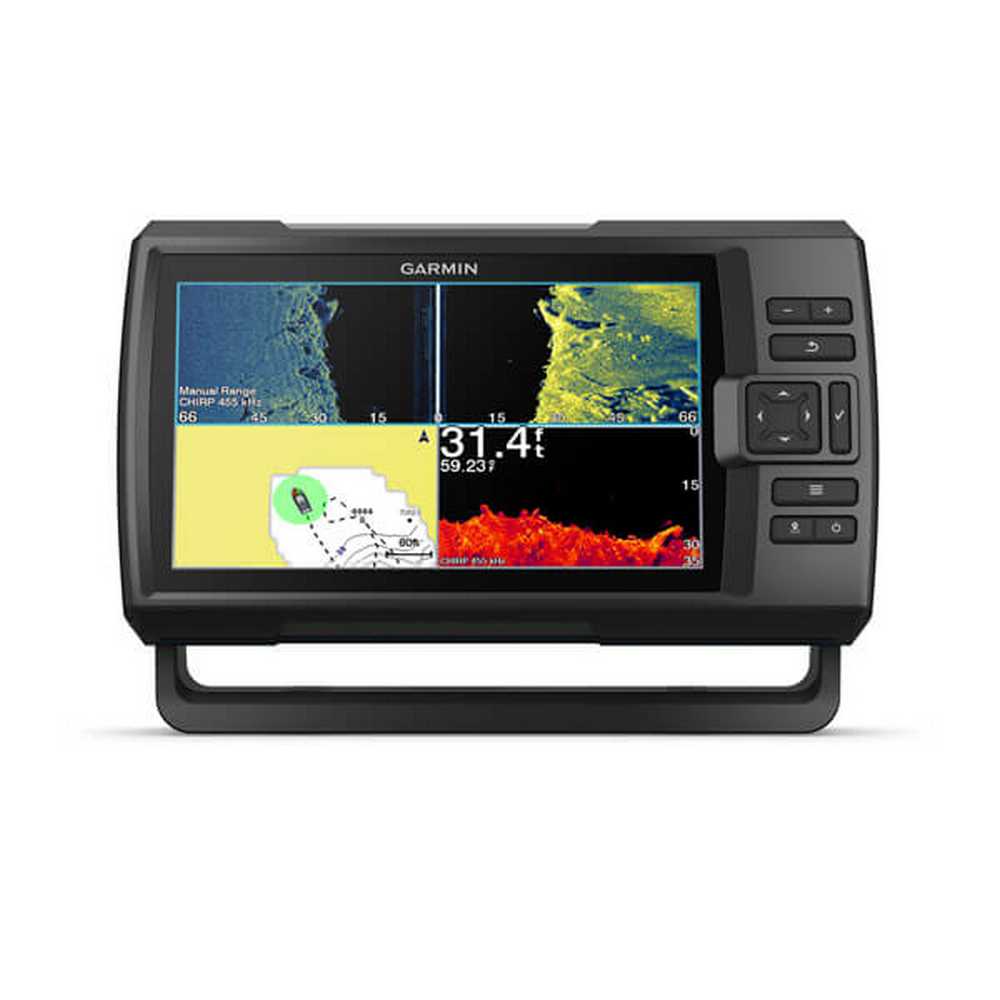

STRIKER Vivid 9sv Fishfinder
Request a quote for latest pricing
Part Number: 010-02554-03
The Choice Is Yours
See fish and structure in maximum detail when you pick your display color, your location, and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.
- Physical Dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
- Display Resolution: 800 x 480 pixels
- Display Type: WVGA color
- Weight: 2.4 lbs (1.1 kg)
- Water Rating: IPX7
- Transmit Power: 500 W (RMS)
- Supported Frequencies: Traditional: 50/77/200 kHz, CHIRP (mid and high), ClearVü and SideVü 260/455/800 kHz
- Water Temperature Log and Graph: Yes
- Fishfinder Features:
- Split-screen zoom: Yes
- UltraScroll®: Yes
- Fish Symbol ID: Yes
- AutoGain Technology: Yes
- Adjustable depth line: Yes
- A-Scope: Yes
- Water temperature sensor included: Yes
- Additional:
- One 4-pin transducer port
- One 4-pin SideVü transducer port
- Quickdraw Contours
- Integrated GPS
- Mark waypoints
- Course over Ground (COG)
- Current draw @ 12V: 0.75A
