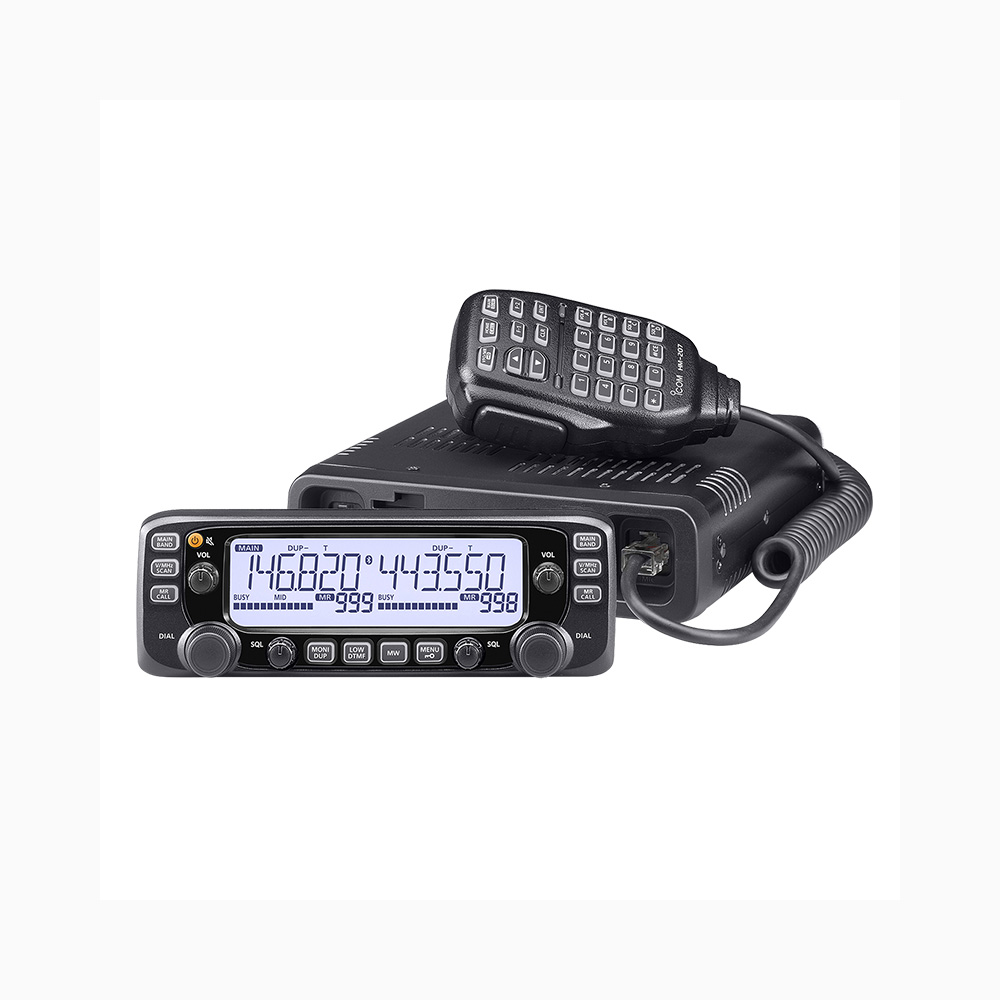

ICOM IC-2730A VHF/UHF DUAL BAND TRANSCEIVER

$470.00

Features:

In stock

Other Features

General Specifications

Frequency coverage (USA Version): Transmit – 144–148, 430–450 MHz; Receive – 118–174, 375–550 MHz
Frequency coverage (Export Version): Transmit – 137–174, 400–470 MHz; Receive – 118–174, 375–550 MHz
No. of memory channels: 1052 channels (including 50 scan edges and 2 Call)
Type of emission: F2D, F3E (FM, FM-N)
Frequency stability: ±2.5 ppm
Power supply requirement: 13.8 V DC ±15%
Current drain (Tx): 13 A
Current drain (Rx): 1.8 A/1.2 A (Max. audio/Stand-by)
Antenna impedance: 50 Ω (SO-239)
Operating temperature range: −10°C to +60°C; 14°F to +140°F
Dimensions (Main unit): 150×40×151 mm; 5.91×1.57×5.94 in
Dimensions (Controller): 150×50×27.2 mm; 5.91×1.97×1.07 in
Weight (Main unit): 1.2 kg; 2.65 lb
Weight (Controller): 140 g; 4.94 oz

Transmitter

Receiver

Intermediate frequencies: A band – 38.85 MHz/450 kHz; B band – 46.35 MHz/450 kHz
Sensitivity (at 12 dB SINAD): Less than 0.18 μV
Selectivity: More than 60 dB/55 dB (W/N)
Spurious response rejection: A band – More than 60 dB/55 dB (V/U); B band – More than 60 dB/60 dB (V/U)
Audio output power: More than 2 W (10% dist. 8 Ω)
External speaker connector: 2 conductor 3.5 mm/8 Ω
