- HF/50/144/440 MHz Multimode
- RF Direct Sampling System
- Real-Time Spectrum Scope and Waterfall Display
- Large Touch Screen Color Display
- Compact and Lightweight Design
- BP-272 Li-ion Battery Pack or 13.8 V DC External Power Supply
- Maximum Output Power: 5 W (BP-272), 10 W (13.8 V DC)
- WLAN/Bluetooth® Technologies
- GPS Functions
- microSD Card Slot
- Micro USB Connector
- D-STAR Functions
- Programmable Speaker Microphone
- What is D-STAR? Digital Smart Technology for Amateur Radio, an open protocol for digital communications established by JARL (Japan Amateur Radio League).

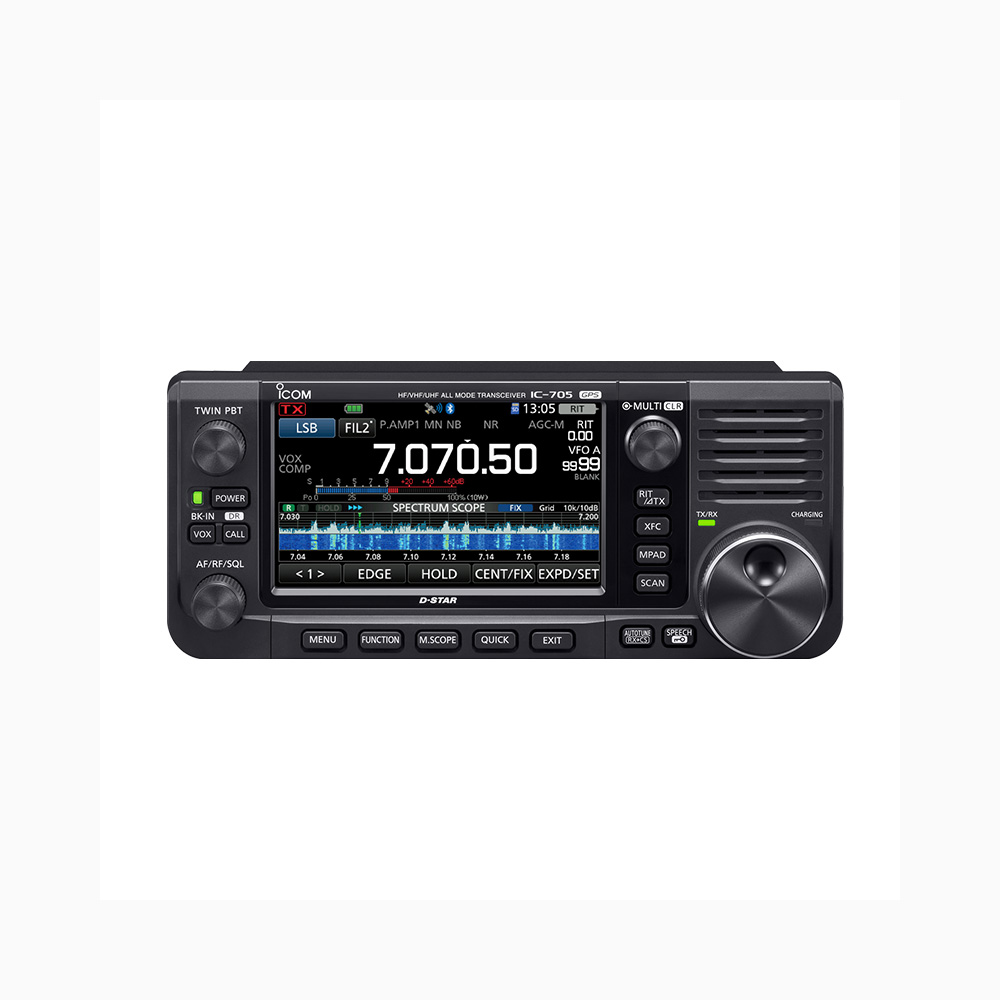

ICOM IC-705 HF/50/144/430 MHz All Mode Portable Transceiver
Request a quote for latest pricing
- A new hybrid radio with base station performance and functions in a compact, lightweight portable size
- Ideal for SOTA, POTA, or other “On the Air” locations
- The IC-705 is your “GO TO” rig for portable operations
- Frequency Coverage (MHz): RX: 0.030–199.999*, 400.000–470.000*; TX: 1.800–1.999, 3.500–3.999, and more.
- Mode: USB, LSB, CW, RTTY, AM, DV, FM, WFM (Rx only)
- Memory Channels: 500 channels (100 groups), 25 scan edges, 4 call channels (2 channels × 2 bands)
- Antenna Connector: BNC connector (50Ω)
- Power Supply Requirement: 13.8 V DC ±15% (external), 7.4 V DC (BP-272)
- Operating Temperature: –10°C to +60°C; +14°F to +140°F
- Frequency Stability: Less than ±0.5 ppm
- Dimensions: 200×83.5×82 mm; 7.9×3.3×3.2 in
- Weight: 1.1 kg; 2.4 lb (including BP-272)
- Output Power: 10 W (13.8 V DC), 5 W (7.4 V DC)
- Receiver System: RF Direct Sampling (0.030 to 24.999 MHz), Down Conversion IF Sampling (25 MHz and above)
- Audio Output Power: Internal SP: More than 530 mW (12 Ω load), External SP: More than 200 mW (8 Ω load)
- HM-243 Speaker-microphone
- BP-272 Battery Pack
- OPC-2421 DC Power Cable
