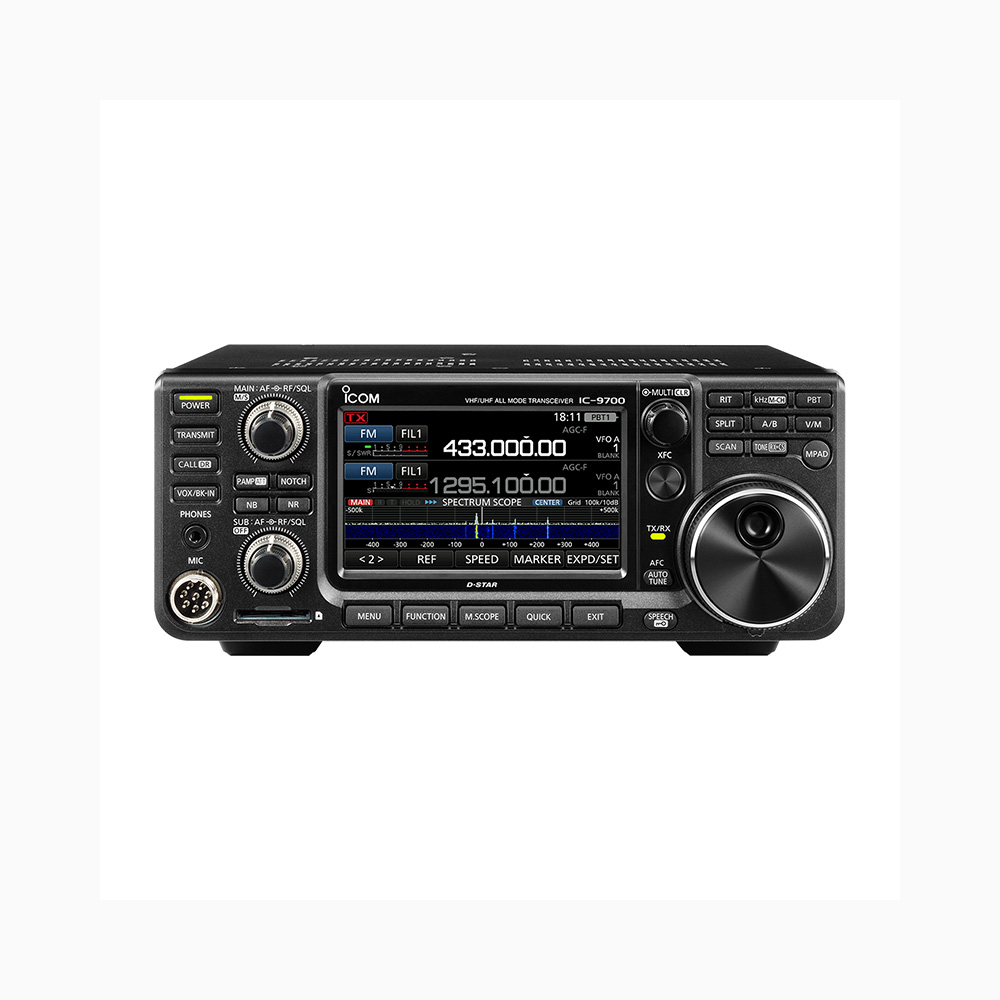

ICOM IC-9700 VHF/UHF Transceiver

Request a quote for latest pricing

Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.

Band Management
In addition to band specific memory channels, the IC-9700 allows band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power, and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction, and others can be tweaked by band with a dynamic Notch and Filter setup by band/mode.

Smoother FT8 mode operation with constantly evolving firmware
144, 430/440, and 1200 MHz all-mode transceiver including satellite, DV, and DD modes
The Icom’s digital expertise
Real-time spectrum scope and waterfall display
Intuitive touch screen display
One-touch FT8 mode preset
Independent receiver, full duplex operation
Audio scope function
Newly designed power amplifier
D-STAR operation friendly functions
Built-in DV gateway functions
Almost identical user interface to the IC-7300
Comprehensive menus for satellite operation
Send, receive, and display pictures

Other Functions:

Loud and clear audio
Compatible with the RS-BA1 Version 2 and CI-V commands
Built-in server function
Digital twin PBT
CW functions: Full break-in, CW memory keyer, CW reverse, CW auto-tuning
SD card slot
TX/RX audio recording
Screen capture …and more

Frequency coverage: 144.000–148.000 MHz, 430.000–450.000 MHz, 1240.000–1300.000 MHz
Mode: SSB, CW, RTTY, AM, FM, DV, DD
Number of memory channels:

Simplex: 297 (99 channels × 3 bands)
Program scan edges: 18 (6 channels × 3 bands)
CALL channel: 6 (2 channels × 3 bands)
Satellite: 99
DR function: 2500

Antenna connectors: 144 MHz: SO-239, 430/440 and 1200 MHz: Type-N
Power supply requirement: 13.8 V DC ±15% (Negative ground)
Power consumption:

Tx: Less than 18 A (High power)
Rx: 1.2 A typical (Standby), Less than 1.8 A (Maximum audio)

Operating temperature range: −10 °C to +60 °C; 14 °F to 140 °F
Frequency stability: Less than ±0.5 ppm
Frequency resolution: 1 Hz
Dimensions: 240 × 94 × 238 mm (9.4 × 3.7 × 9.4 in)
Weight: Approximately 4.7 kg (10.4 lb)
Transmitter:

Output power:

SSB/CW/RTTY/FM/DV/DD:
144 MHz: 0.5–100 W
430/440 MHz: 0.5–75 W
1200 MHz: 0.1–10 W
AM:
144 MHz: 0.125–25 W
430/440 MHz: 0.125–18.75 W
1200 MHz: 0.025–2.5 W

Modulation system: Digital PSN, Low Power, Reactance, GMSK
Spurious emissions: Harmonics:

144 MHz: Less than –63 dB
430/440 MHz: Less than –61.8 dB
1200 MHz: Less than −53 dB

Out-of-band emission:

144 MHz: Less than −60 dB
430/440 MHz: Less than −60 dB
1200 MHz: Less than −50 dB

Carrier suppression: More than 50 dB
Unwanted sideband: More than 50 dB
Microphone impedance: 600Ω

Receiver:

Receiver system: 144, 430/440 MHz RF Direct Sampling; 1200 MHz Down Conversion IF Sampling
Sensitivity:

SSB/CW: Less than 0.11 μV
AM: Less than 1.0 μV
FM: Less than 0.18 μV
DV: Less than 0.35 μV
DD: Less than 1.59 μV (1200 MHz only)

Selectivity:

SSB: 2.4 kHz/-3 dB, Less than 3.6 kHz/-60 dB
CW: 500 Hz/-3 dB, Less than 700 Hz/-60 dB
AM: 6 kHz/-3 dB, Less than 15 kHz/-60 dB
FM: 12 kHz/-6 dB, Less than 20 kHz/-60 dB

Audio output power: More than 2.0 W (1 kHz, 10% distortion) into an 8Ω load

Ingress protection: IP54

HM-219 hand microphone
DC power cable

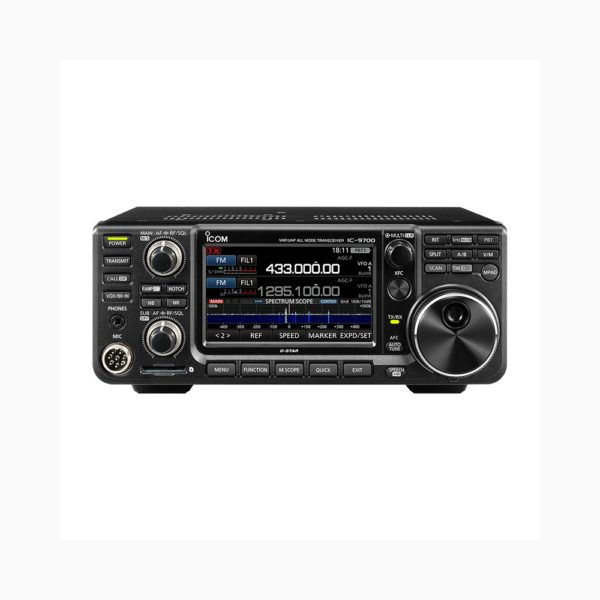

ICOM IC-9700 VHF/UHF Transceiver

Related products

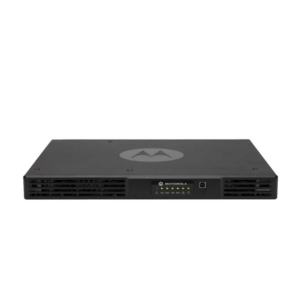

SLR5300 Repeater

IC-V80 VHF FM TRANSCEIVERS

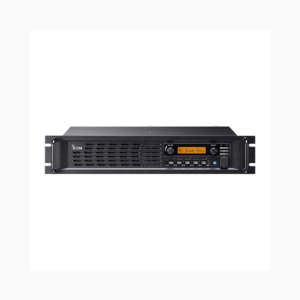

IC-FR6000 Repeater
