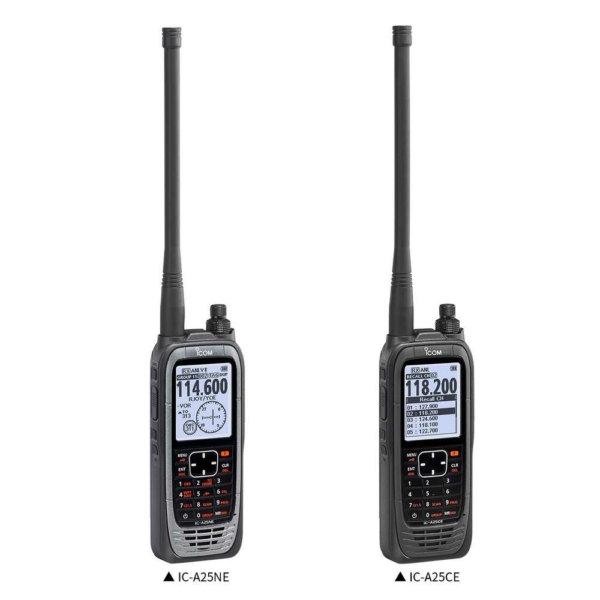

ICOM IC-A25CE VHF Air Band Transceiver

ICOM

Request a quote for latest pricing

  • IP57 dust-protection and waterproof construction
  • Operate with six AA size alkaline batteries with the BP-289 battery case
  • BNC antenna
  • 121.5 MHz emergency key
  • Weather channels
  • Priority watch
  • VFO scan, memory channel scan, priority scan
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function
  • Internal VOX capability
  • 300 memory channels (in 15 memory groups) with 12 character names
  • 8.33 kHz channel spacing
Request A Quote
  • 6 Watts High RF Output Power: For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) / 1.8 W typical (carrier) compared to the IC-A24E (5/1.5 W PEP/carrier).
  • Easy-to-Use Interface: Often used functions are assigned to the keypad, allowing direct access to the desired function. The enlarged flat sheet keypad offers smooth and swift operation.
  • 2.3 Inch Large High Visibility LCD: The 2.3-inch large, high contrast, and high visibility LCD displays user-friendly, graphic screens and ensures good readability under direct sunlight. The operating frequency in large characters can be recognized at a glance. The night mode option enables easy viewing in low light conditions.
  • “Flip-Flop” Channel Recall: The IC-A25NE/CE stores the last 10 channels used. You can easily recall those channels by using the directional keys, the channel knob, and the 10-keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, change order) the stored recall channels.
  • Built-in Bluetooth® for Hands-Free Operation (for IC-A25NE): A third-party wireless Bluetooth® headset, like a 3M™ Peltor™ WS™ 5*, provides convenient hands-free operation. The optional VS-3 Bluetooth® headset enables use of the side tone function. *Compatibility not guaranteed.
  • Intelligent Battery with Detailed Battery Status: The supplied BP-288, 2350 mAh typical intelligent battery pack provides up to 10.5 hours* of operating time. The battery status screen shows the condition of the battery pack, which is helpful for optimum charging and battery health maintenance.

Other Features:

  • IP57 dust-protection and waterproof construction
  • Operate with six AA size alkaline batteries with the BP-289 battery case
  • BNC antenna
  • 121.5 MHz emergency key
  • Weather channels
  • Priority watch
  • VFO scan, memory channel scan, priority scan
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function
  • Internal VOX capability
  • 300 memory channels (in 15 memory groups) with 12 character names
  • 8.33 kHz channel spacing
  • Frequency Range: TX: 118.000–136.992 MHz, RX: 118.000–136.992 MHz
  • Number of Memory Channels: 300 channels / 15 groups
  • Channel Spacing: 25 / 8.33 kHz
  • Power Supply Requirement: 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
  • Current Drain: Tx High: Less than 1.8 A, RX Max. audio/Standby: Less than 500 mA
  • Antenna Impedance: 50 Ω
  • Operating Temperature Range: −20 °C to +55 °C
  • Dimensions (W × H × D): 58.9 × 148.4 × 31.8 mm
  • Weight: 340 g (with BP-288)
  • Output Power (at 7.2 V DC): 6.0/1.8 W (PEP/carrier)
  • Audio Harmonic Distortion: Less than 10% (at 85% modulation)
  • Frequency Stability: ±1 ppm
  • Intermediate Frequencies: 46.35 MHz/450 kHz (1st/2nd)
  • Sensitivity: NAV (6 dB S/N): Less than 0 dBμ, COM (12 dB SINAD): Less than 0 dBμ (with CCITT filter)
  • Adjacent Channel Rejection: More than 60 dB
  • Spurious Response: More than 70 dB
  • Hum and Noise: More than 40 dB (at 90% modulation)
  • Audio Output Power: External speaker: 530 mW typical (AM 8 Ω/60% Mod at 10% distortion), Internal speaker: 1200 mW typical (AM 8 Ω/60% Mod at 10% distortion)
  • Ext. Speaker Connector: 3-conductor 3.5 (d) mm (1/8ʺ) / 8 Ω
  • Water Resistance: IP57 (Dust-protection and Waterproof* protection)
  • Weight: 340 g (with BP-288)
  • Transceiver Unit
  • BP-288 Li-Ion Battery Pack
  • BC-224 Charger
  • BC-123SE AC Adaptor
  • MB-133 Belt-Clip
  • FA-B02AR Antenna
  • Manual
