New Generation Entry Level Mobile Utilizing the Latest Design Platform

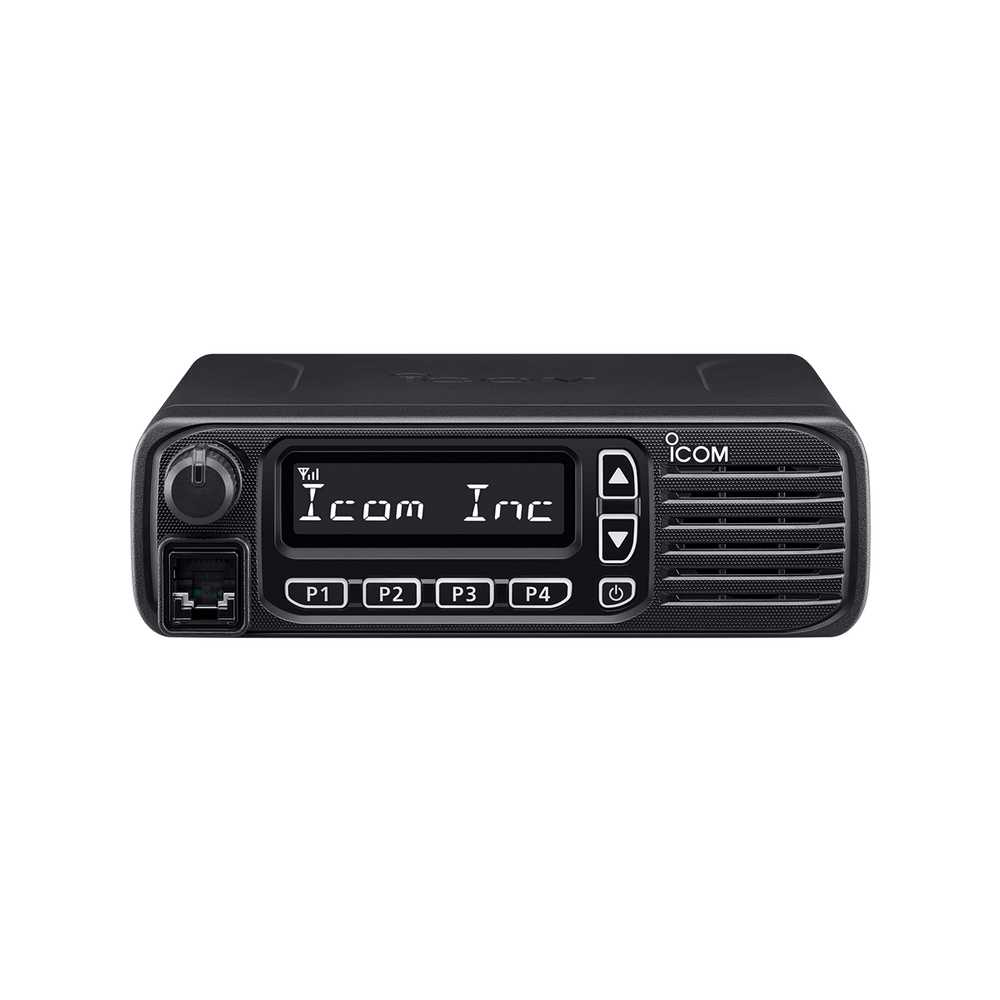

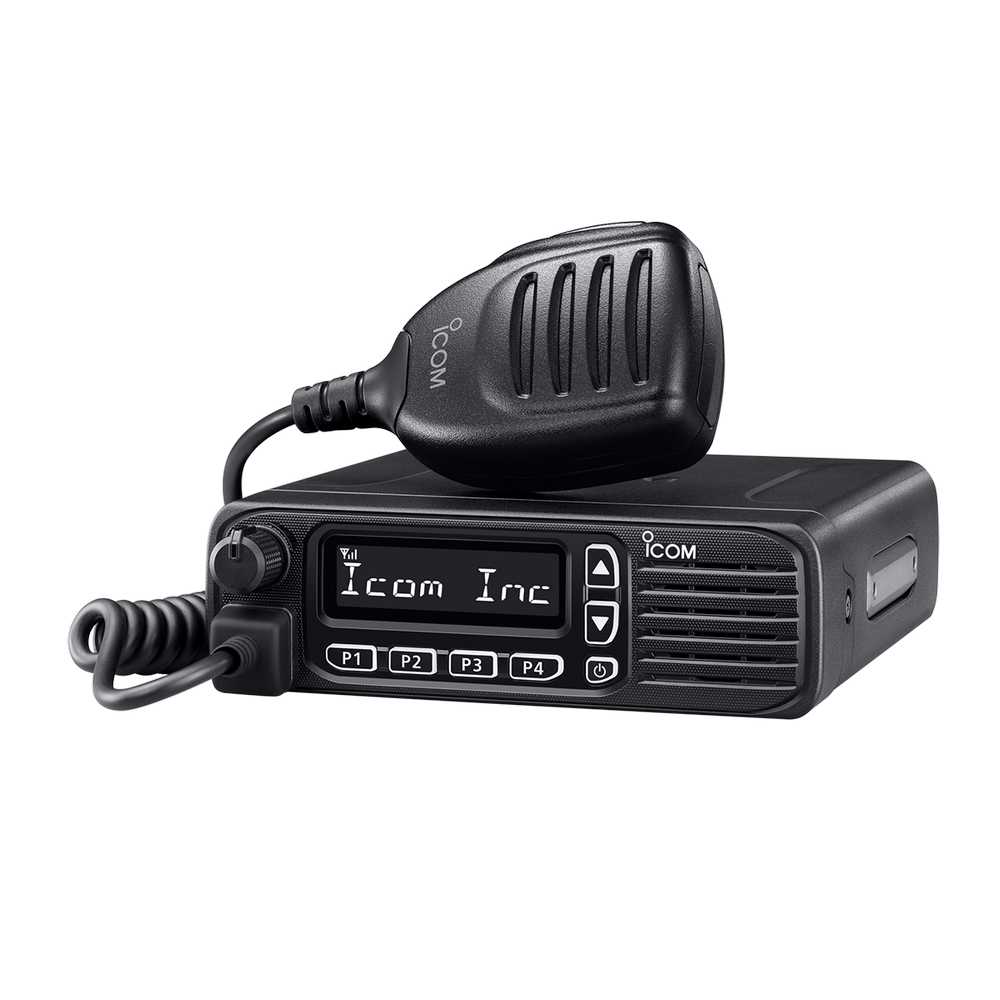

Improved visibility with High Contrast and Wide Viewing Angle Black Background LCDThe IC-F5130D/F6130D series is a simple single-body IDAS™ mobile radio utilizing the latest Icom design platform and improved visibility with a high contrast and wide viewing angle black background LCD.
Input / Output Interface for External Devices with Optional D-SUB Accessory CableThe ACC connector cable can connect various external equipment to the transceiver. It is possible to operate external equipment via the transceiver or operate the transceiver from the external equipment. Data transfer over the air such as GPS location, barcode, or telemetry data is available. Remote control by transceiver can improve the efficiency of operations.
Dual Mode Operation – IDAS™ Digital Mode and Analog FM ModeThe IC-F5130D series supports Analog mode, IDAS™ digital multi-site conventional mode, and IDAS™ digital single-site trunking mode. It is possible to migrate from Analog to Digital in accordance with end-user requirements.
Safe and Secure Functions for Transceiver OperatorsWith the IC-F5130D series, it is possible to confirm the safety of the transceiver operator. If there is no transceiver operation, the Lone Worker function sounds an alert and prompts operation. Furthermore, if the operation is still not performed, the transmission can be initiated forcibly to check the sound in the surrounding area and the status of the operator. Power ON Password and Digital Voice Scrambler are also available in the IC-F5130D series to protect confidential communication.
- 136–174, 400–520 MHz versions
- RF Output power 50 W/45 W for USA and EXP, 25 W for EXP
- 128 Channels / 8 Zones
- High contrast and wide viewing angle black background LCD
- Eight-character alphanumeric display
- 4 W (typical) front-mounted speaker
- MIL-STD-810 G shock, vibration, temperature, and more
- DTMF autodial memories capability
- Microphone hanger action programmable
- Four programmable buttons
- GPS position display and Auto-Timed GPS send (External GPS required)
- NXDN™ conventional
- NXDN™ Type-D single-site trunking
- NXDN™ simulcast
- NXDN™ multi-site conventional over IP network
Analog mode
Digital Functions (Voice and Data)- PTT ID and ANI
- Over-the-Air Alias (OAA) displays the caller’s name without programming
- Individual, Group, and All call
- Late entry for Group call
- Status call and Polling call
- Short data messages
- Call alert
- Radio check (RX only)
- Call log
- Talk back timer
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
- BIIS PTT ID transmission
- Digital voice scrambler
- Emergency call and Lone worker
- Remote monitor (RX)
- Radio Kill, Stun, and Revive (RX)
- Power on Password
- Up to 17 scan lists programmable
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
- Optional OPC-1939 installation image
- GPS receiver connection with optional ACC cable
- Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming
