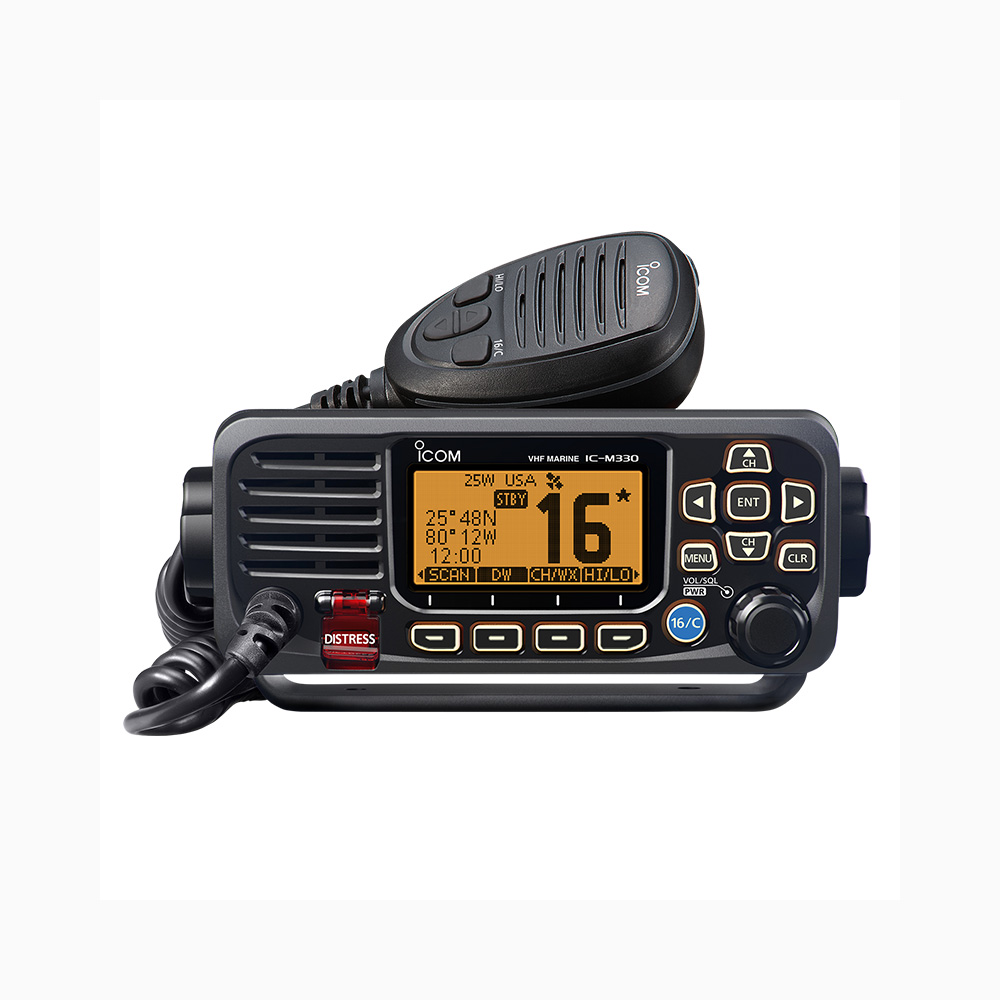

icom ic-m330 without gps receiver marine comms vhf fixed mount 1

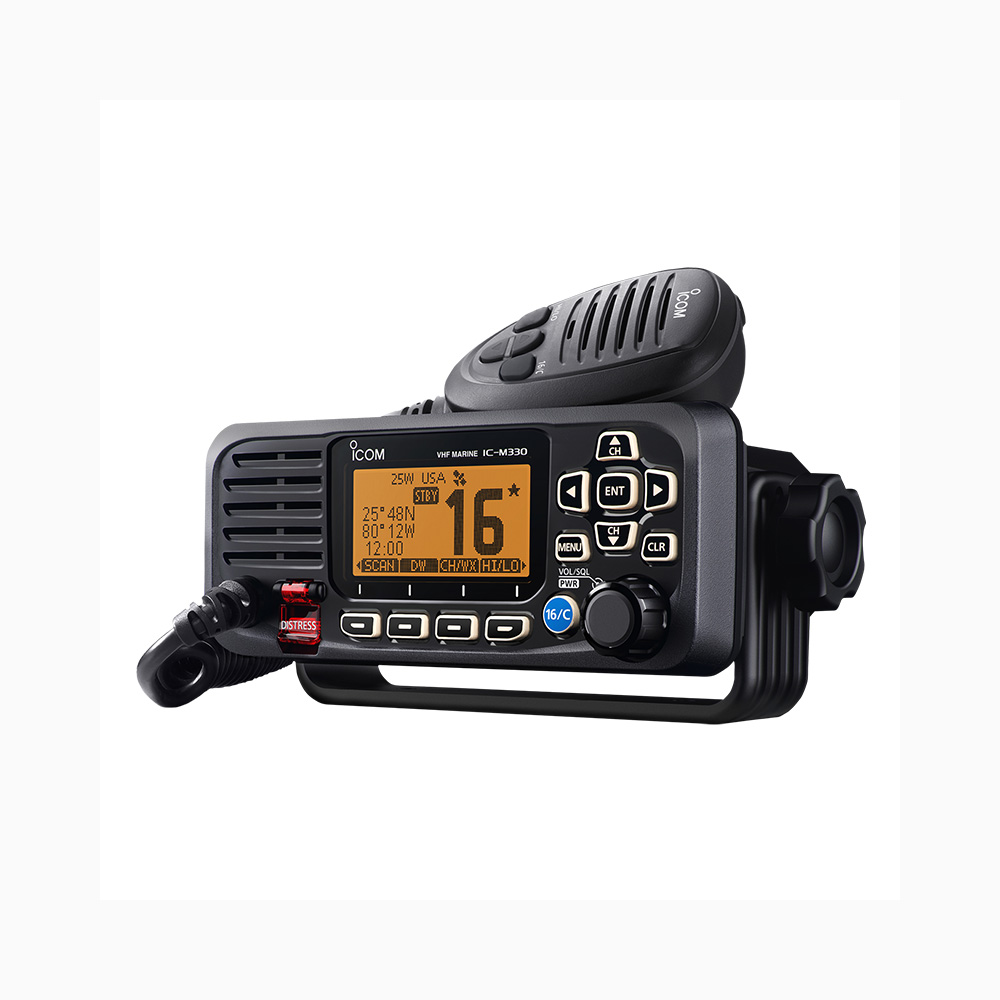

icom ic-m330 without gps receiver marine comms vhf fixed mount 2

IC-M330 (Without GPS Receiver)

ICOM

$220.00

  • Dynamic, clear audio from bass to treble
  • Built-in Class D DSC
  • Uncompromised receiver performance (Selectivity and IMD: more than 70 dB)
  • Intuitive user interface
  • Easy-to-read full dot-matrix display
  • IPX7 submersible (1 m depth for 30 minutes)
  • Ultra compact body (35 % smaller than the IC-M424G)
  • Dualwatch and Tri-watch functions
  • Instant access to Ch 16 and Call channel
  • Tag Scan and Favourite Channel functions
  • AquaQuake™
  • Priority Scan function
  • Display and keypad backlighting
  • External speaker connection
  • Black or white colour version
  • Supports 4-digit channels

In stock

Categories: , Brand:
  • Ultra Compact Body, Flexible Installation: The IC-M330/G has a palm-sized compact body (W×H×D; 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in). The radio can be installed in limited space.
  • New Speaker Delivers Dynamic, Clear Audio: A new speaker design delivers dynamic and clear sound over a wide bass and treble range. The IC-M330/G provides distortion-free clear audio even at full volume.
  • Built-in Class D DSC: The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls.
  • Class Leading Receiver Performance: The radio provides reliable communication in RF busy environments like a marina. (Selectivity and IMD: more than 70 dB)
  • Intuitive Operation with Icom Marine User Interface: A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one-push function access.
  • Made in Japan Quality and Reliability: All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality are tradition.
  • And More:
    • IPX7 submersible (1 m depth of water for 30 minutes)
    • AquaQuake™ prevents audio degradation from a water-logged speaker
    • Common NMEA interface for external GPS/NAV connection
    • MA-500TR Class B AIS transponder compatible
    • Tag scan and favorite channel functions
    • Dual/tri-watch function for monitoring CH16 and/or call channel
    • Priority scan function
    • Display and keypad backlighting
    • External speaker connection
    • Weather channel with weather alert
    • Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
    • 3-digit or 4-digit channel display selectable
  • Frequency range:
    • TX: 156.025–161.600 MHz
    • RX: 156.050–163.275 MHz
    • CH70: 156.525 MHz
  • Usable channels: USA, CAN, INT, WX channels
  • Type of emission: 16K0G3E (FM), 16K0G2B (DSC)
  • Power supply requirement: 13.8V DC nominal (11.7-15.9 V DC)
  • Current drain (at 13.8 V DC):
    • TX 25 W output: 5 A
    • RX AF max.: 1 A
  • Operating temperature range: -20°C to +60°C; -4°F to +140°F
  • Antenna impedance: 50 Ω (SO-239)
  • Dimensions (W×H×D) (projections not included): 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in
  • Weight (approx.): 730 g; 1.6 lb
  • NMEA formats:
    • In: RMC, GGA, GNS, GLL, VTG
    • Out: DSC, DSE, RMC, GSA, GSV
  • Output power (at 13.8 V DC): 25 W, 1 W
  • Max. frequency deviation: ±5 kHz
  • Frequency tolerance: ±5 ppm
  • Spurious emissions: Less than -70 dBc (High) / Less than -56 dBc (Low)
  • Sensitivity: Main: -13 dBμ typ. (12 dB SINAD) / DSC: -5 dBμ emf typ. (1% BER)
  • Squelch sensitivity: Less than -10 dBμ
  • Adjacent channel selectivity: Main: More than 70 dB / DSC: More than 73 dBμ emf (1% BER)
  • Spurious response: Main: More than 70 dB / DSC: More than 73 dBμ emf (1% BER)
  • Intermodulation: Main: More than 70 dB / DSC: More than 68 dBμ emf (1% BER)
  • Hum and noise: More than 40 dB
  • Audio output power: More than 2 W (Internal SP), More than 4.5 W (External SP)
  • Compatible with: IC-M88 VHF Marine Transceiver, IC-F7010, IC-F4400D
  • HM-235B/W hand microphone
  • DC power cable
  • Mounting bracket kit
