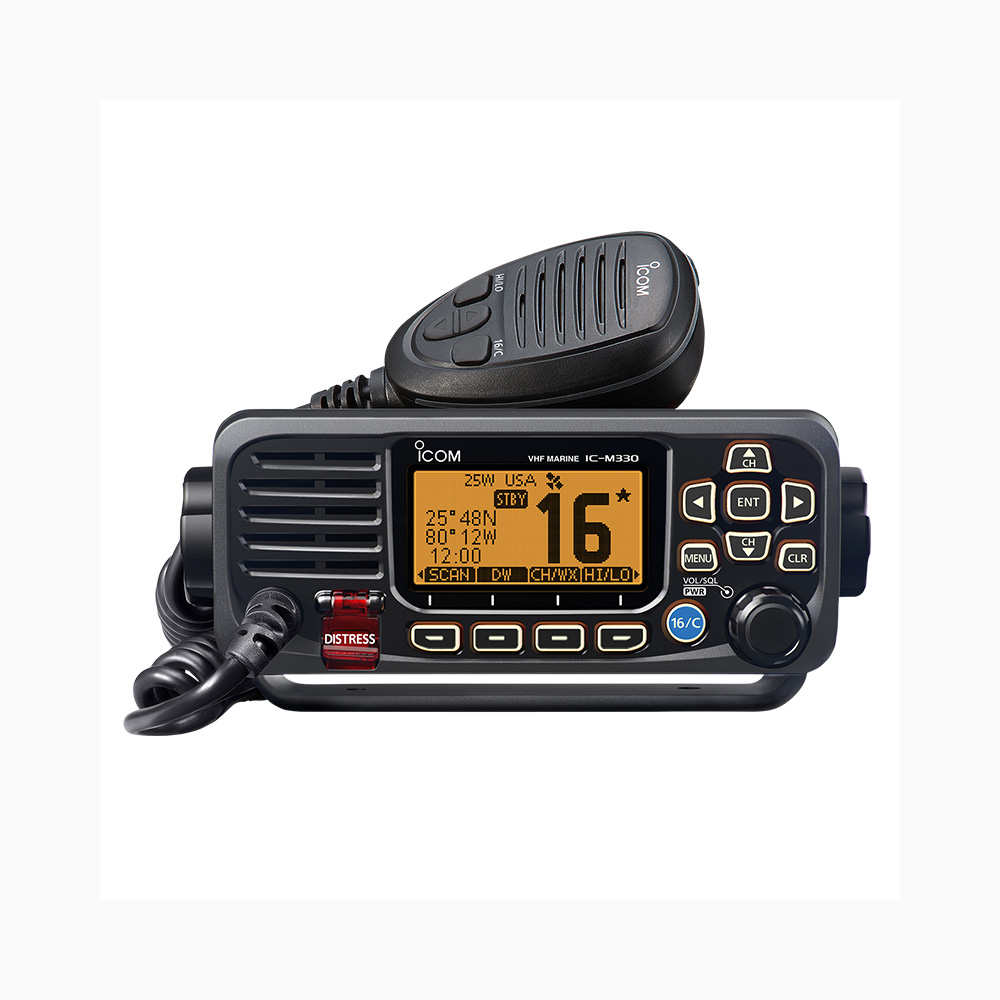

IC-M330G VHF MARINE TRANSCEIVERS (With GPS Receiver)

Request a quote for latest pricing

Dynamic, clear audio from bass to treble
Built-in Class D DSC
Uncompromised receiver performance (Selectivity and IMD: more than 70 dB)
Intuitive user interface
Easy-to-read full dot-matrix display
IPX7 submersible (1 m depth for 30 minutes)
Ultra compact body (35% smaller than the IC-M424G)
Dualwatch and Tri-watch functions
Instant access to Ch 16 and Call channel
Tag Scan and Favourite Channel functions
AquaQuake™
Priority Scan function
Display and keypad backlighting
External speaker connection
Black or white colour version
Supports 4-digit channels

IC-M330G (With GPS Receiver): The IC-M330G has a palm-sized compact body (W×H×D; 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in). The radio can be installed in limited space.
New speaker delivers dynamic, clear audio: A new speaker design delivers dynamic and clear sound over a wide bass and treble range. The IC-M330G provides a distortion-free clear audio even at full volume.
Built-in Class D DSC: The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls.
Class-leading receiver performance: The radio provides reliable communication in RF busy environments like a marina. (Selectivity and IMD: more than 70 dB)
Intuitive operation with Icom Marine User Interface: A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one-push function access.
GPS receiver built-in (IC-M330G): A built-in GPS receiver provides your location, bearing, and speed by using information from GPS, GLONASS, and SBAS. The acquired position information can be used for DSC calls.
Made in Japan quality and reliability: All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality are tradition.
And more:
- IPX7 submersible (1 m depth of water for 30 minutes)
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Common NMEA interface for external GPS/NAV connection
- MA-500TR Class B AIS transponder compatible
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- External speaker connection
- Weather channel with weather alert
- Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
- 3-digit or 4-digit channel display selectable

Frequency range:
- TX: 156.025–161.600 MHz
- RX: 156.050–163.275 MHz
- CH70: 156.525 MHz
Usable channels: USA, CAN, INT, WX channels
Type of emission: 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement: 13.8 V DC nominal (11.7–15.9 V DC)
Current drain:
- TX 25 W output: 5.0 A
- RX AF max.: 1.0 A
Operating temperature range: -20°C to +60°C; -4°F to +140°F
Antenna impedance: 50 Ω (SO-239)
Dimensions (W×H×D): 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in (projections not included)
Weight (approx.): 730 g; 1.6 lb
NMEA formats:
- In: RMC, GGA, GNS, GLL, VTG
- Out: DSC, DSE, RMC, GSA, GSV
Transmitter:
- Output power: 25 W, 1 W
- Max. frequency deviation: ±5 kHz
- Frequency tolerance: ±5 ppm
- Spurious emissions: Less than -70 dBc (High), Less than -56 dBc (Low)
Receiver:
- Sensitivity: Main: -13 dBμ typ. (12 dB SINAD), DSC: -5 dBμ emf typ. (1% BER)
- Squelch sensitivity: Less than -10 dBμ
- Adjacent channel selectivity: Main: More than 70 dB, DSC: More than 73 dBμ emf (1% BER)
- Spurious response: Main: More than 70 dB, DSC: More than 73 dBμ emf (1% BER)
- Intermodulation: Main: More than 70 dB, DSC: More than 68 dBμ emf (1% BER)
- Hum and noise: More than 40 dB
- Audio output power: Internal: More than 2 W (4 Ω, 10% distortion), External: More than 4.5 W
