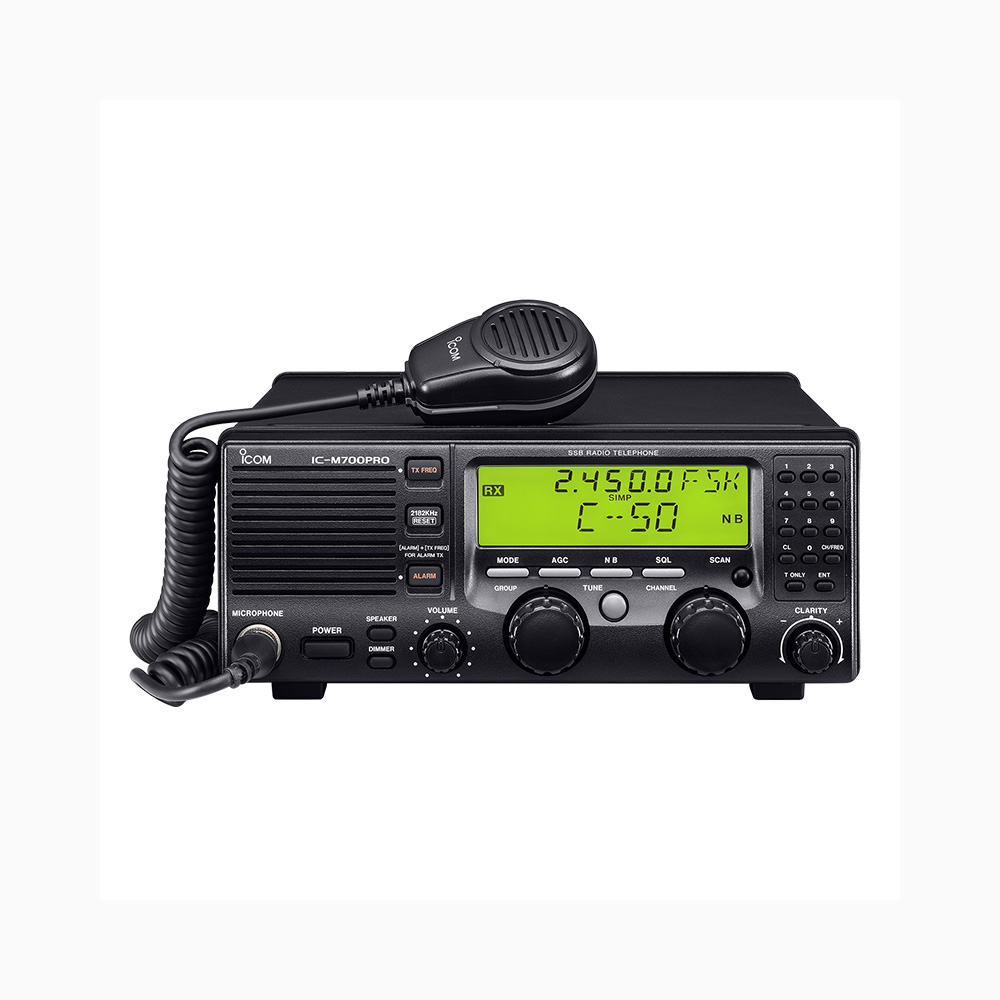

IC-M700PRO SSB Marine Radio Telephone

Request a quote for latest pricing

A favorite among SSB marine radio operators
Quick channel selection with two large knobs
150 W (60 W (PEP) above the 24 MHz band) full duty operation
Rugged construction for withstanding harsh use
Large, easy-to-read green LCD
Automatic antenna tuner, the AT-140, is available to match the transceiver to your antenna
Numerous operating modes* available: USB, AM, CW, FSK and AFSK
Wide band, general coverage receive—0.5 to 29.9999 MHz
Channel/frequency knob allows the user to tune specific frequencies around the memory channel
NMEA plus 2 DIN connectors are available for external equipment connection, such as a linear amplifier, FSK terminal, E-mail modem, etc.
NMEA0183 interface included

Simplified Operation: Quick and easy channel selection with large, independent Group and Channel knobs. Each panel button has a single function. The display provides at-a-glance channel or frequency and operating status.
Data Operation Capability: The 150 W (PEP) transmitter ensures long-distance communication and supports demanding operations like RTTY or e-mail. *60 W (PEP) above 24 MHz bands.
Other Features:
- Optional automatic antenna tuner (AT-140/AT-130) matches the radio to your antenna.
- Wideband general coverage receive from 0.5 to 29.9999 MHz.
- Channel knob allows fine-tuning specific frequencies around memory channels.
- Two DIN connectors for external equipment like linear amplifiers, FSK terminals, or e-mail modems.
- Built-in 2-tone alarm (optional depending on version).
- Includes NMEA 0183 interface.

Frequency Range:
- TX: 1.6–2.9999 MHz, 4.0–4.9999 MHz, 6.0–6.9999 MHz, 8.0–8.9000 MHz, 12.0–13.9999 MHz, 16.0–17.9999 MHz, 18.0–19.9999 MHz, 22.0–22.9999 MHz, 25.0–27.5000 MHz
- RX: 0.5–29.9999 MHz
Power Supply Requirement: 13.6 V DC ±15% (negative ground)
Dimensions (W×H×D): 291.4 × 116.4 × 315 mm (11.47 × 4.58 × 12.4 in)
Weight: 7.8 kg (17.2 lb)
Current Drain:
- Transmit (High): 30 A at max. power
- Max. Audio Output: 2.5 A
Sensitivity (at 10 dB S/N; 1.8–29.999 MHz):
- J3E, J2B, R3E, A1A: 0.35 μV typ.
- H3E: 2.2 μV typ.
Selectivity:
- J3E, R3E, J2B, A1A: 2.3 kHz/−6 dB, 4.2 kHz/−60 dB
Audio Output Power: 4 W (10% distortion, 4 Ω load)
RF Output Power (PEP):
- 150/60/20 W (below 24 MHz)
- 60/20 W (above 24 MHz)
