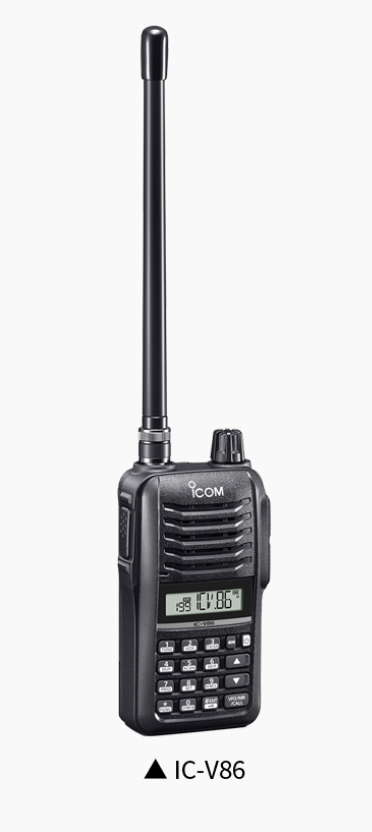

IC-V86 / IC-U86 VHF/UHF TRANSCEIVERS

ICOM

$165.00

  • 7W output power
  • 1500 mW audio output
SKU: N/A Categories: , Brand:
  • 7 W Output Power and 1500 mW Audio
  • 1500 mW Powerful Audio and 1.5 Times* Higher Sound Pressure
  • The combination of the optional HM-222HLWP and the IC-V86/U86* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.* For the transceiver with a “U” mark on the serial number label.
  • Dust-Protection, Water Resistance and a Tough Body
  • 19 hours of Long Lasting Battery Life
  • No PC Programming Necessary, Settings Changeable from the Radio
  • Durable BNC Type Antenna Connector
  • Made in Japan Quality and Reliability
Other Features
  • Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
  • Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
  • Integrated VOX function
  • 200 memory channels, 1 Call channel and 6 scan edges
  • Built-in CTCSS and DTCS encoder/decoder
  • Priority, program, memory, skip and tone scanning
  • Frequency Range (TX/RX guaranteed range):
    • IC-V86: TX: 144–148 MHz, RX: 136–174 MHz
    • IC-U86: TX: 430–450 MHz, RX: 400–472 MHz
  • Type of Emissions: F2D, F3E (FM, FM-N)
  • Number of Channels: 207 channels (200 memory channels, 1 call channel, and 6 scan edges)
  • Antenna Impedance: 50Ω
  • Power Supply Requirement: 7.5V DC
  • Operating Temperature Range: –20˚C to +60˚C (–4°F to +140°F)
  • Frequency Stability: ±2.5 ppm (–20˚C to +60˚C)
  • Dimensions (W×H×D): 58.6 × 112 × 30.5 mm (with BP-298)
  • Weight (Approximate):
    • IC-V86: 300 g (with BP-298, FA-B57V)
    • IC-U86: 290 g (with BP-298, FA-B57U)
  • Ingress Protection Standard: IP54 (Dust-protection, water resistance)
  • BP-298/BP-264, battery pack*
  • BC-240, Desktop charger
  • BC-242, AC adapter
  • MB-124, belt clip
  • Antenna*
* May differ, depending on transceiver version
