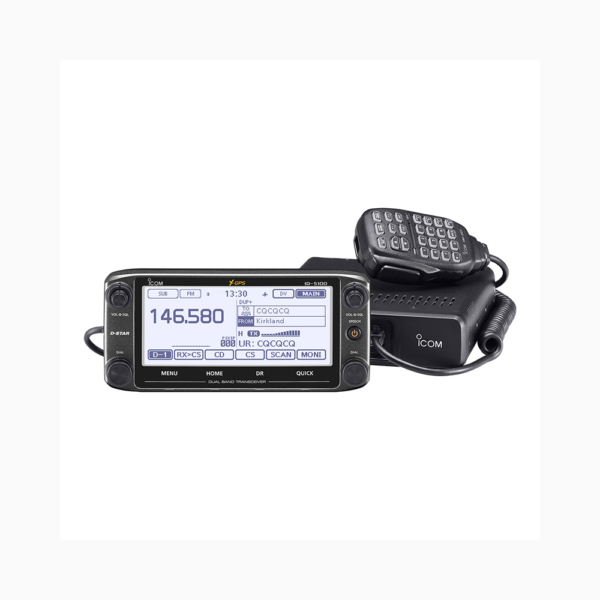

ICOM ID-5100A VHF/UHF Dual Band D-STAR Transceiver

• Intuitive Touch Screen Operation
• DV/DV Dualwatch
• DV/FM Repeater List Function
• Dplus Reflector Linking
• SD Card Slot for Voice and Data Storage
• VS-3 Bluetooth® Headset
• RS-MS1A Android™ Application (Free download application from Google Play™)
• DV Fast Data Mode*

• Enhanced D-PRS functions with object, position, items, and weather formats
• Convenient memory contents management using CSV format
• Speech function announces operating frequency, mode, and received callsign (DV mode)
• Independent main, volume, and SQL knobs for A/B bands
• AM airband dualwatch
• CS-5100, programming software (Download from the Icom Website)
• 50W output power on both VHF and UHF bands
• Weather channel with weather alert function (USA version only)
• Auto repeater function (USA version only)
• 1500 (50 groups) Repeater list entries
• 300 call sign memories
• 300 GPS memories
• Split tone functions in the analog mode

• Frequency coverage: USA Version Transmit – 144–148, 430–450 MHz; Receiver – 118–174, 375–550 MHz
• Frequency coverage: EXP Version Transmit – 137–174, 400–470 MHz; Receiver – 118–174, 375–550 MHz
• Type of emission: F2D, F3E, F7W
• Mode: DV, FM, FM-N, AM (RX only), AM-N (RX only)
• Operating temperature range: −10°C to +60°C; +14°F to +140°F
• Frequency stability: ±2.5 ppm (−10°C to +60°C on the basis of 25°C)
• Digital TX speed: 4.8 kbps
• Voice coding speed: 2.4 kbps
• Antenna impedance: 50 Ω (SO-239)
• Memory channels: 1000 regular channels, 4 call channels, 50 program scan edges, and 1200 repeater memories
• Power supply requirements: 13.8 V DC ±15%
• Dimensions (main unit): 150×40×172.6 mm (5.91×1.57×6.8 in)
• Dimensions (controller): 182.2×81.5×24.7 mm (7.17×3.21×0.97 in)
• Weight (main unit): 1.3 kg; 2.87 lb
• Weight (controller): 260 g; 9.17 oz

• Output power: 50 W, 15 W, 5 W
• Modulation system: FM reactance modulation, GMSK reactance modulation
• Max. frequency deviation: ±5.0 kHz/±2.5 kHz (FM/FM-N)
• Spurious emissions: Less than −60 dBc
• Microphone impedance: 600 Ω (8-pin modular jack)

• Sensitivity (FM/FM-N): Less than 0.18 μV
• Sensitivity (DV): Less than 0.28 μV
• Selectivity: FM – More than 60 dB; FM-N – More than 55 dB; DV – More than 50 dB
• Spurious and image rejections: A band – More than 60/55 dB (VHF/UHF); B band – More than 60/60 dB (VHF/UHF)
• Audio output power: More than 2.0 W (with 8Ω load, 10% distortion)

• Hand microphone, HM-207
• DC power cable, OPC-1132
• Controller cable, OPC-837 (3.5 m; 11.4 ft)
• Controller bracket, MBA-2*
• Microphone hanger
• Spare fuse

* Not supplied or may differ, depending on version
