- 36 NM Range Observation with 4 kW Output Radome Scanner
- Simplified ARPA (Automatic Radar Plotting Aids) Function
- DSC (Digital Selective Calling) Information Function
- AIS (Automatic Identification System) Overlay Function
- Wide Viewing Angle Colour TFT LCD
- Multi-Lingual Intuitive User Interface
- Optional Video Output Unit
- TLL (Target Latitude Longitude) Function
- True Trail Function
- 10.2–42 V wide DC input to prevent over voltage damage
- Two user-programmable alarm zones
- Waypoint indication
- Designed, engineered, and made in Japan

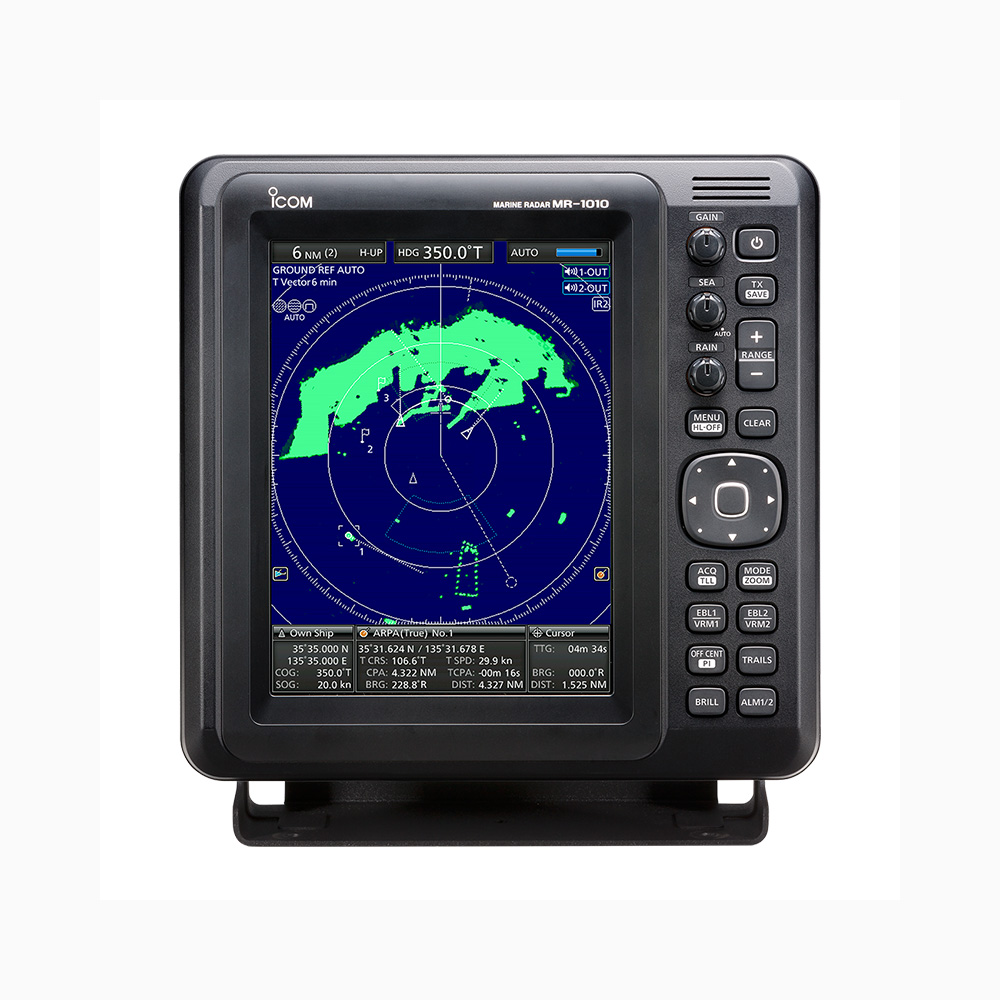

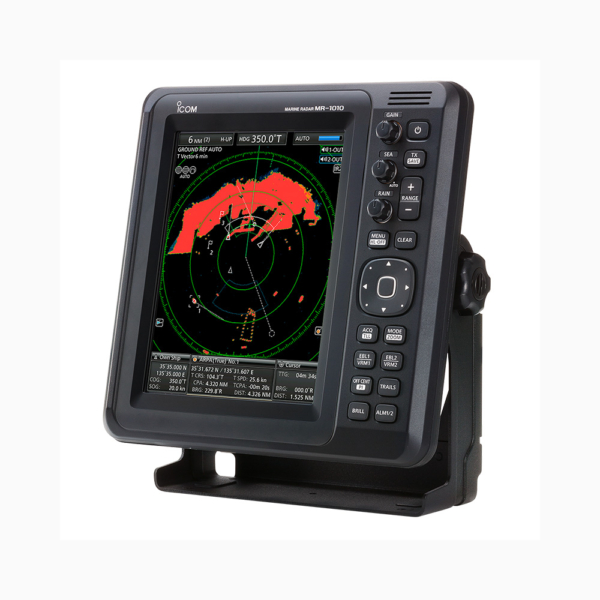

MR-1010RII MARINE RADAR
Request a quote for latest pricing
Features:
- 36 NM Range Observation with 4 kW Output Radome Scanner
- Simplified ARPA (Automatic Radar Plotting Aids) Function
- DSC (Digital Selective Calling) Information Function
- AIS (Automatic Identification System) Overlay Function
- Wide Viewing Angle Colour TFT LCD
- Multi-Lingual Intuitive User Interface
- Optional Video Output Unit
- TLL (Target Latitude Longitude) Function
- True Trail Function
- 10.2–42 V wide DC input to prevent over voltage damage
- Two user-programmable alarm zones
- Waypoint indication
- Designed, engineered, and made in Japan
Display Unit:
- Display Type: 10.4-inch Color TFT LCD
- Resolution: 480 × 640 dots
- Minimum Range: 25 m (82 ft)
- Maximum Range: 36 NM
- Range Scales (NM): 1/8 to 36
- Range Scales (km): 1/4 to 48
- Preheat Time: 90 seconds
- Power Supply: 10.2–42 V DC
- Power Consumption: 55 W
- Usable Temperature Range: −15°C to +55°C
- Input Format: NMEA 0183, N+1, AUX, IEC61162-2
- Output Format: NMEA 0183
Scanner:
- Type: 60 cm (2 ft) radome scanner
- Rotation Speed: 24, 36 rpm
- Horizontal Beamwidth: 4°
- Vertical Beamwidth: 22°
- Sidelobe: −22 dB
- Usable Temperature Range: −25°C to +70°C
- Usable Humidity: Less than 95% at 40°C
- Frequency: 9410 MHz ±30 MHz
- Modulation: P0N
- Peak Output Power: 4 kW
- Pulse Width/Rate: 80 ns/2160 Hz to 900 ns/720 Hz
- Modulator: FET switching
- Intermediate Frequency: 60 MHz (EUR), 250 MHz (EXP)
- IF Bandwidth: 10 MHz / 3 MHz (EUR), 15 MHz / 3 MHz (EXP)
- Tuning: Auto/manual selectable
- System Cable: 15 m (49.2 ft)
IP Rating:
- Display Unit: IPX4 (Water resistance)
- Scanner Unit: IPX6 (Jet water protection)
- Scanner Unit
- System Cable (15 m)
