- Multi-function Display: Affordable dual display connection with up to four displays in a system. Connects two MFDs simultaneously, sharing modules and data. Supports installation up to 20m away from the MPU. When connecting two MarineCommanders via a data cable, up to four displays can be used.
- Slim and Waterproof: The MFD is slim (69.2mm) and lightweight, with IPX7 submersible construction for water protection. Connects to the MPU using a single cable.
- Daylight Viewable MFD: 12.1-inch display with 800×600 resolution and 900 cd/m2 brightness for clear visibility even in direct sunlight. Features selectable color palettes for day and night modes.
- Simple Operation: Offers a user-friendly interface with minimal buttons and a rotary knob. Supports customizable layouts split into up to four panes.
- USB Flash Drive Connection: Includes a USB slot for backing up and importing waypoint, track, and route information.
- C-MAP™ MAX Compatible: Compatible with C-MAP™ MAX charts by JEPPESEN in SD card format (charts not supplied by Icom). Provides features like guardian alarm, route-check, and port database for safe navigation.
- Engine Monitoring: Displays data from sensors (engine/environment/positioning) via an NMEA 2000 interface. Data can be shown on the status bar or data bar.
- Video Camera Monitoring: Supports up to four video input ports for surveillance cameras, allowing monitoring on the display.
- Other Features:
- External display connector for analog RGB output
- Multiple language support (English, French, Spanish)
- External NMEA2000 connection for various metrics (engine, fuel, temperature, wind, etc.)
- Memo function stores comments with picture data and position information (requires USB flash drive).

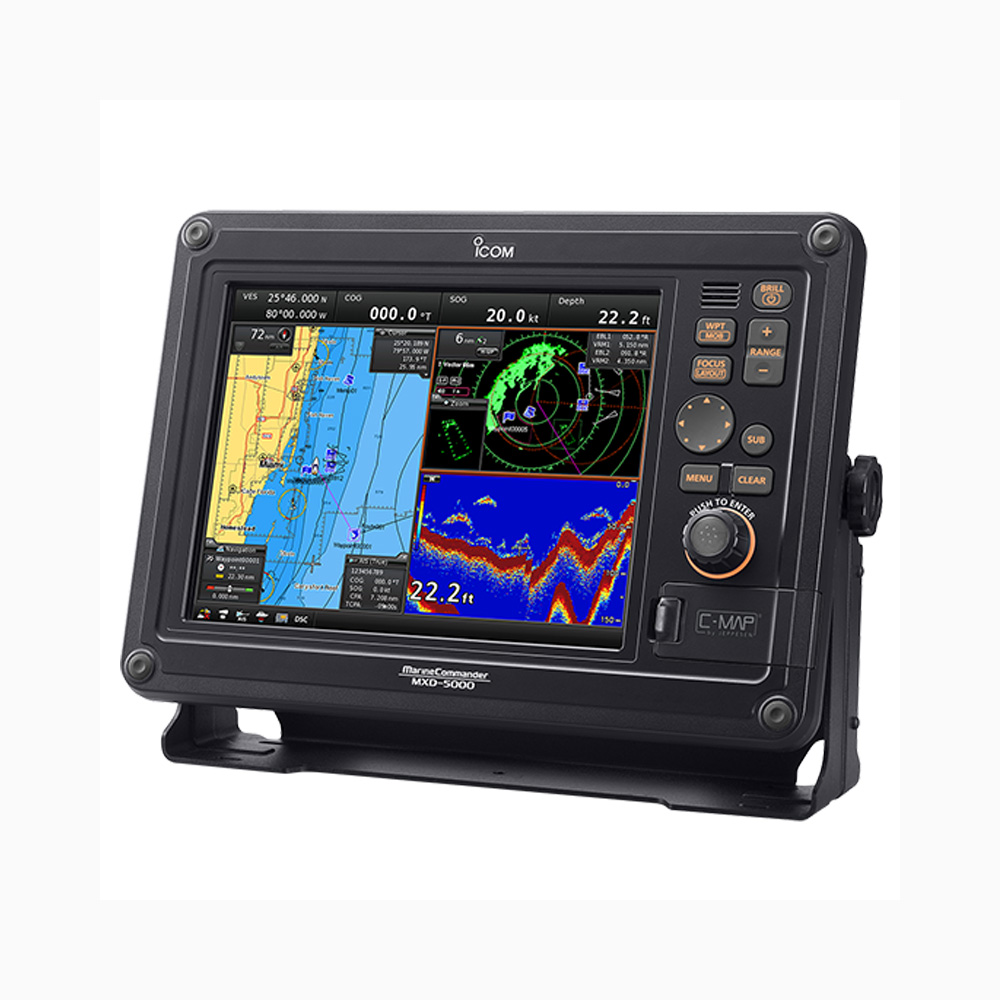

MXD-5000 Multi-function Display (MFD)
Request a quote for latest pricing
Features
- Affordable dual display connection. Up to four displays in a system.
- Slim and waterproof
- Daylight viewable MFD
- Simple operation
- USB flash drive connection
- C-MAP MAX compatible
- Engine monitoring
- Video camera monitoring
- The external display connector (analog RGB) allows you to output to an external display
- Multiple language display (English/French/Spanish)
- External NMEA2000 connection (engine, fuel, engine temperature, wind, GPS, compass, STW)
- Memo function allows you to store a comment with picture data* and position information.
- Model: MXD-5000
- Display Type: 12.1 inch TFT
- Screen Size: 246×184.5 mm
- Screen Resolution: SVGA 800×600 dots
- Screen Brightness: 900 cd/m2 (Max.)
- Contrast Ratio: 500
- Viewing Angle:
- Vertical: Top 50° to Bottom 70°
- Horizontal: Left 70° to Right 70°
- Power Supply: 30V DC (supplied from MXP-5000)
- Dimensions:
- Without Bracket: 386×274×69.2 mm; 15.2×10.79×2.72 in
- With Bracket: 404×299×102 mm; 15.91×11.77×4.02 in
- Weight:
- Without Bracket: 3.6 kg; 7.9 lb
- With Bracket: 4.1 kg; 9.0 lb
- Usable Temperature Range: −20°C to +60°C; −4°F to +140°F
- Waterproofing: IPX7
- Cable Length: 5 m; 16.4 ft
- Optional Extension Cable: EX-3187 (5 m; 16.4 ft)
