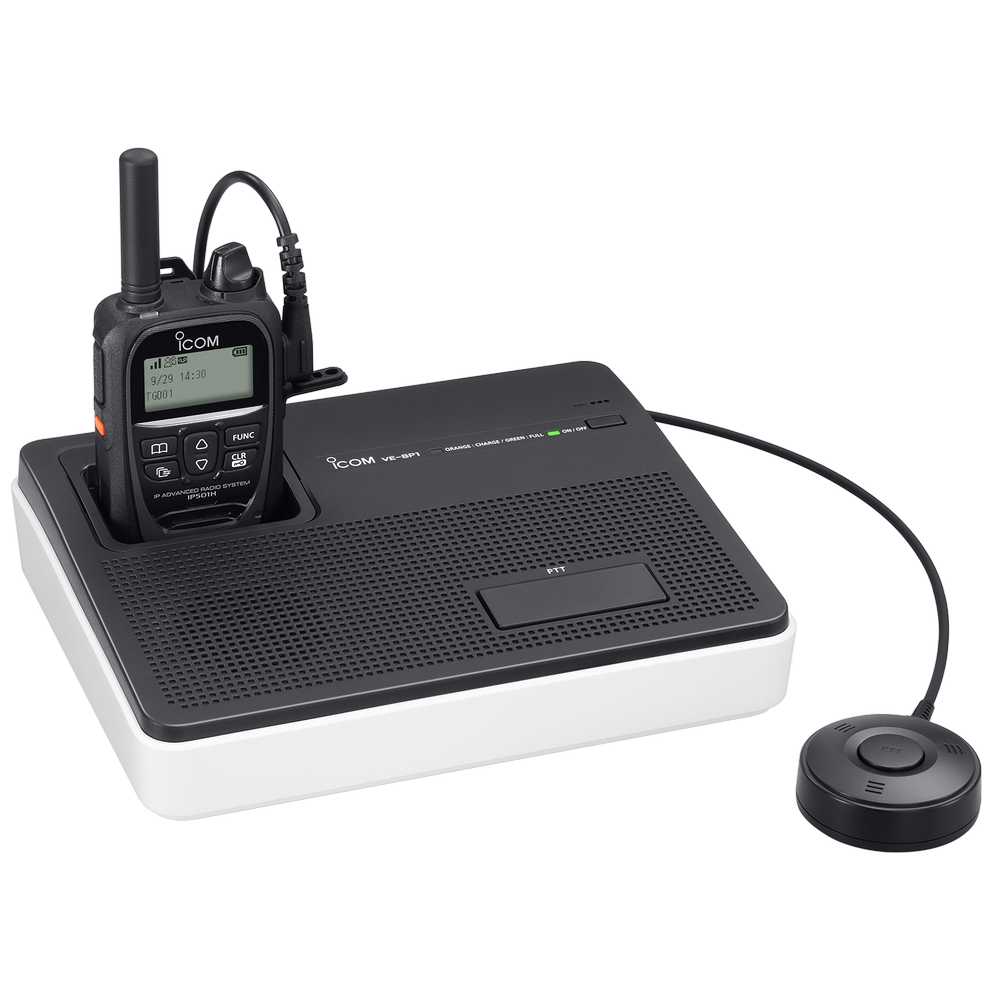

VE-SP1 Speakerphone Unit

• Multi-Site Voice Conference: Enables efficient meetings as if all participants were in the same room, regardless of location.
  • For Head and Branch Offices: Facilitates efficient meetings for staff across multiple locations.
  • For Staff Rooms at Event Sites: Enables quick information sharing among staff at different locations for swifter and better service.
  • For Information Sharing in Disasters: Reports from stricken areas can be heard at headquarters, ensuring up-to-date emergency situation awareness.
• Variety of Operation Places: Operates with an AC adapter, 8 LR6 (AA) batteries, or power from the IP transceiver, allowing usage where no AC outlet is available.
• Wide Coverage and Easy Access: Utilizes existing LTE (4G) and 3G networks for wide area and instantaneous communication. Coverage depends on country and service provider.
• Compact, Lightweight, and Portable: Weighs approximately 595 grams (1.3 pounds) and is designed for easy portability and rugged use, making it ideal for meetings anywhere.
• Large Audio Output for Conferences: 1100 mW audio output, with both internal and external microphones (3-meter cable). Optional external speaker provides louder output, suitable for large conferences.
• IP Transceiver Charging: Simultaneously charges the IP transceiver when used with an AC adapter.

• Power Supply Voltage: 12–16 V DC, 8 LR6 (AA) alkaline batteries
• Dimensions (W×H×D): 216.8 × 52.8 × 173.3 mm; 8.5 × 2.1 × 6.8 in
• Weight: Approximately 595 g; 1.3 lb (excluding batteries)
• Max. Current Drain: Less than 1 A
• Operating Temperature: –10 to +60°C; +14°F to +140°F. When used with AC adapter: +10 to +40°C; +50°F to +104°F
• Audio Output: 1.1 W (8 Ω load, 10% distortion)
• Compatible Transceivers: IP501H, IP503H, IP503H Lite

• OPC-2397 Cable for transceiver connection
• BC-242 AC adapter (with USA, EUR, UK, and AUS input plugs)
• SM-1 External microphone (with PTT switch, 3-meter cable)

*The IP transceiver is not supplied.
