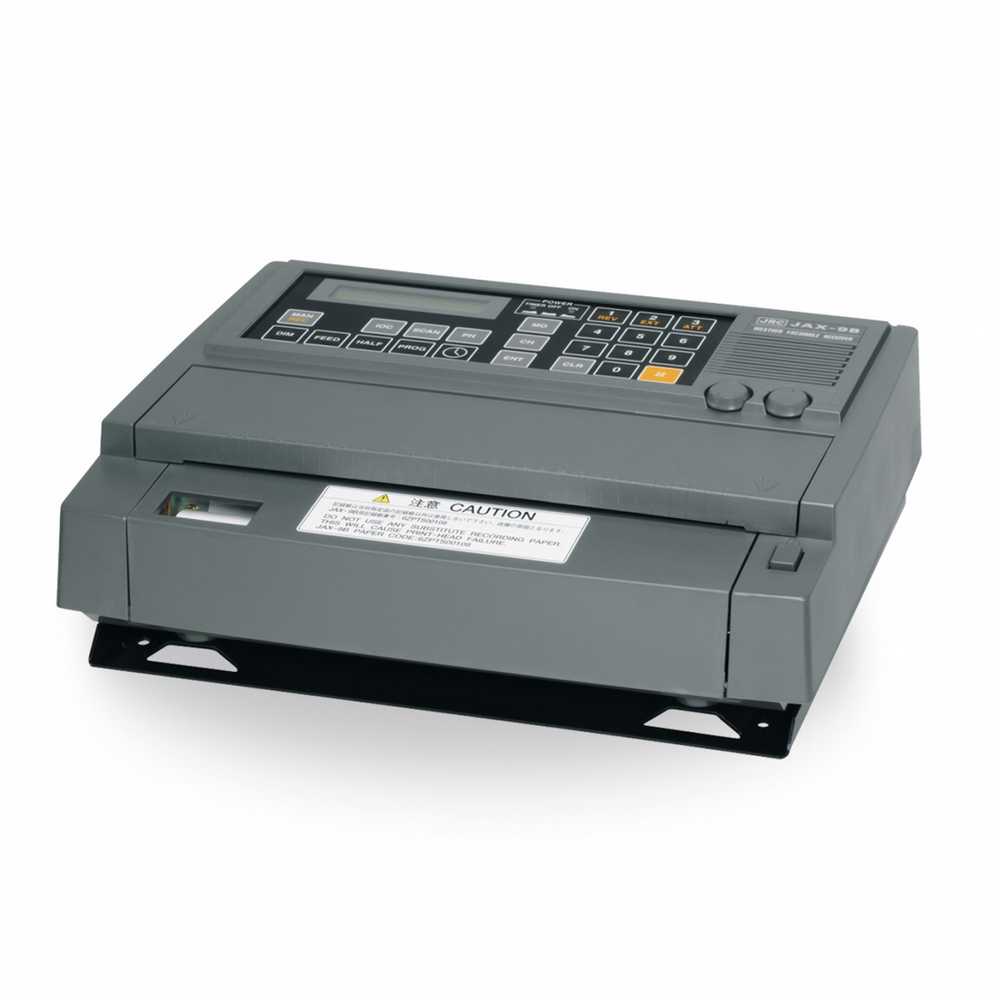

jax-9b1

JAX-9B

JRC

Request a quote for latest pricing

Very compact and lightweight solution

  • Fine half-tone recording
  • Flexible operation and recording system
  • Synthesized receiver
  • Printout of frequencies and program lists
Request A Quote
Categories: , , Brand:
  • The JAX-9B weather facsimile receiver is compact and lightweight, offering enhanced features for flexible operation.
  • Records fax broadcasts on thermal recording paper using a thermal head with fewer moving parts.
  • Automatic frequency selection for optimized receiving in four modes: automatic, manual, forced, and timer programme.
  • Allows for remote-controlled operations such as start-up, setting parameters, receiving images, feeding paper, and stopping operations.
  • Manual recording includes settings for IOC, scanning speed, and halftone recording.
  • Forced recording provides functionality outside automatic or manual modes, with instantaneous phase matching.
  • Timer programme recording allows start/stop scheduling, station frequency selection, and halftone control.
  • Built-in synthesized receiver for flexible frequency settings via a ten-key pad, with up to 90 preset frequencies.
  • Fine half-tone recording with 16 gradation levels for high-resolution maps and images.
  • Printout of frequencies and programme lists for up to 90 memory channels and 15 programme channels.
  • Enhanced interfacing for displaying and saving received images on a PC, with remote maintenance support.
  • Compact and lightweight design enables flexible installation in confined spaces.
  • Model: JAX-9B
  • Recording System: Solid state thermal head
  • Recording Paper: Thermo-sensitive
  • Effective Recording Width: 256mm (10″)
  • IOC: 576 or 288
  • Scanning Speed: 60, 90, 120, 240 SPM
  • Scanner Resolution: 8 dots/mm
  • Scanning Line Density: Approx. 7 lines/mm, 3.5 lines/mm
  • Phase Matching: Automatic and manual
  • Halftone Recording: 16 steps by dither pattern
  • Negative/Positive Recording: Manual
  • External Receiver Connection: 0dBm, 600Ω
  • Operation Modes: Automatic, manual, forced, timer programme
  • Timer Programme Channels: 15
  • Self Test Function: Recording and panel test
  • Automatic Time Correction: Input via GPS data
  • Power Supply: DC 12/24/32V, 70VA or less
  • Frequency Range: 2.0000 to 24.9999 MHz
  • Frequency Memory: Up to 90 channels
  • Sensitivity: 2µV (+6dBµ) or less
  • Ambient Temperature: -15ºC to +55ºC (operation), 0ºC to +40ºC (performance)
  • Ambient Humidity: 93% (40ºC) or less, recording at 80% or less
