- Compact Sized Display Unit: 6.5″ TFT LCD.
- No Paper: Optional external printer available.
- High Accuracy and Reliability: Ensures precise measurements.
- Memory for Depth Data: Stores data for the last 24 hours for playback of past sounding information.
- IMO Standards Compliance: Meets IMO MSC.74(69) Annex 4 requirements.

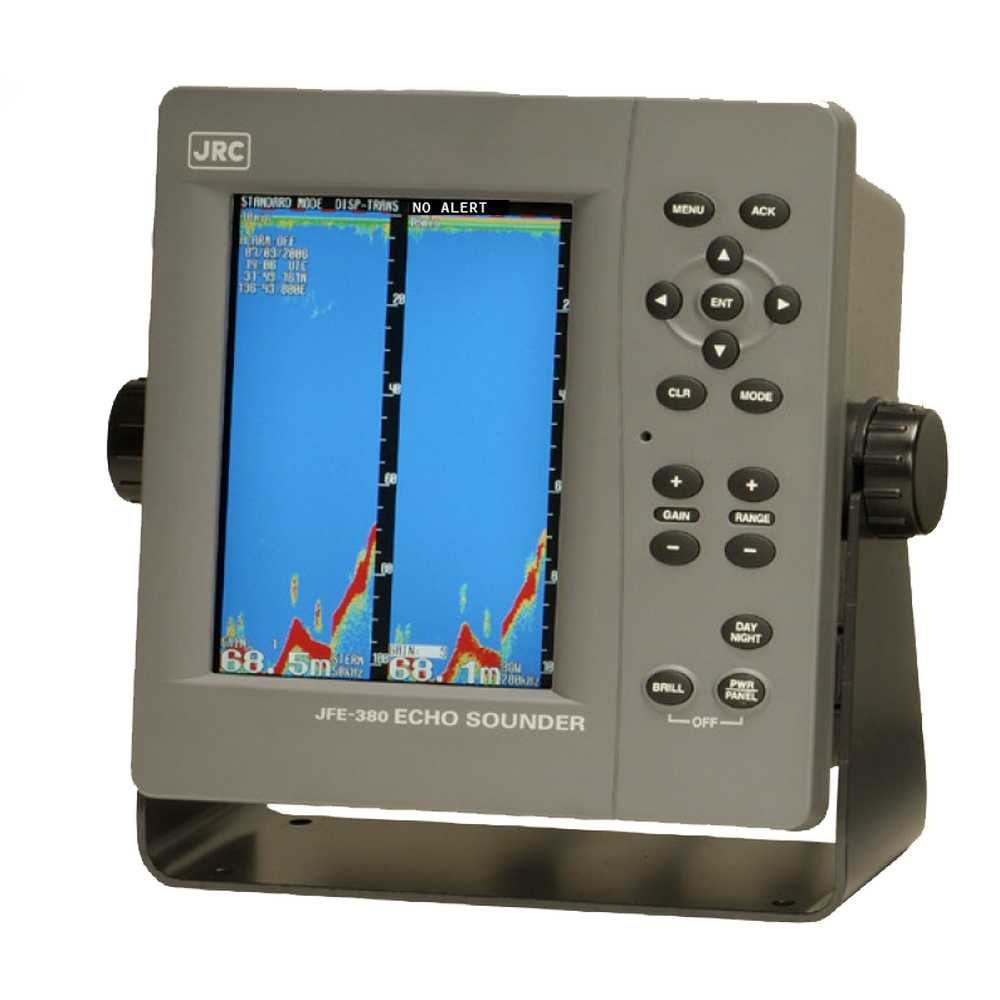

JFE-380 Echo Sounder
Request a quote for latest pricing
Features
- Compact sized display unit (6.5″ TFT LCD)
- No paper (Optional: External printer is available)
- High accuracy and high reliability
- Depth data for last 24 hours in memory to play back the past sounding information
- Meets IMO standards MSC.74(69) Annex 4
- Display: 6.5″ Color TFT LCD (640×480 pixels).
- Frequency: 200kHz / 50kHz.
- Echo Color: 8 colors or 8-level monochrome.
- Digital Depth: 4 digits (0.1m).
- Range: 10, 20, 50, 100, 200, 500, 800m.
- Depth Accuracy: ±2.5%.
- Minimum Sounding Depth: 1.0m (200kHz), 2m (50kHz).
- Draft Adjust: 50m in 0.1m steps.
- TX Pulse Repetition Rate:
- 171 PRR (10, 20, 50m).
- 86 PRR (100, 200m).
- 43 PRR (500, 800m).
- Presentation Mode: Standard, History, Docking.
- Time Range of Echo Display: 5, 10, 20, 30 minutes.
- Auto Function: Gain, Range.
- Alarm Function: Depth, Power fail, System error.
- Preview Function: 24 hours.
- Transducer:
- 200kHz: UT-200ND.
- 50kHz: UT-50MD.
- Power Supply:
- 100-115/200-230VAC ±15%, 50Hz/60Hz ±5%.
- 24VDC (only for power fail monitoring).
- Power Consumption: Less than 20W.
- Waterproofing:
- Display Unit: IPX5 (jet proof).
- Connection Box: IPX2 (drip proof).
- Display Unit: NJA-98 (1 unit, 3.5kg).
- Interface Box: NQD-2120 (1 unit, 3.5kg).
- TX/RX Cable: CFQ-9129 (1 unit, 10m).
- Power Supply Cable: CFQ-9130 (1 unit, 10m).
- Communication Cable: CFQ-9135 (1 unit, 10m).
- Matching Box (Primary): AW-154F (1 unit, 4kg).
- Transducer Mounting (Primary): NKF-341 (1 unit, 22kg, with cable 20m).
