jhs-207

JHS-207

JRC

Request a quote for latest pricing

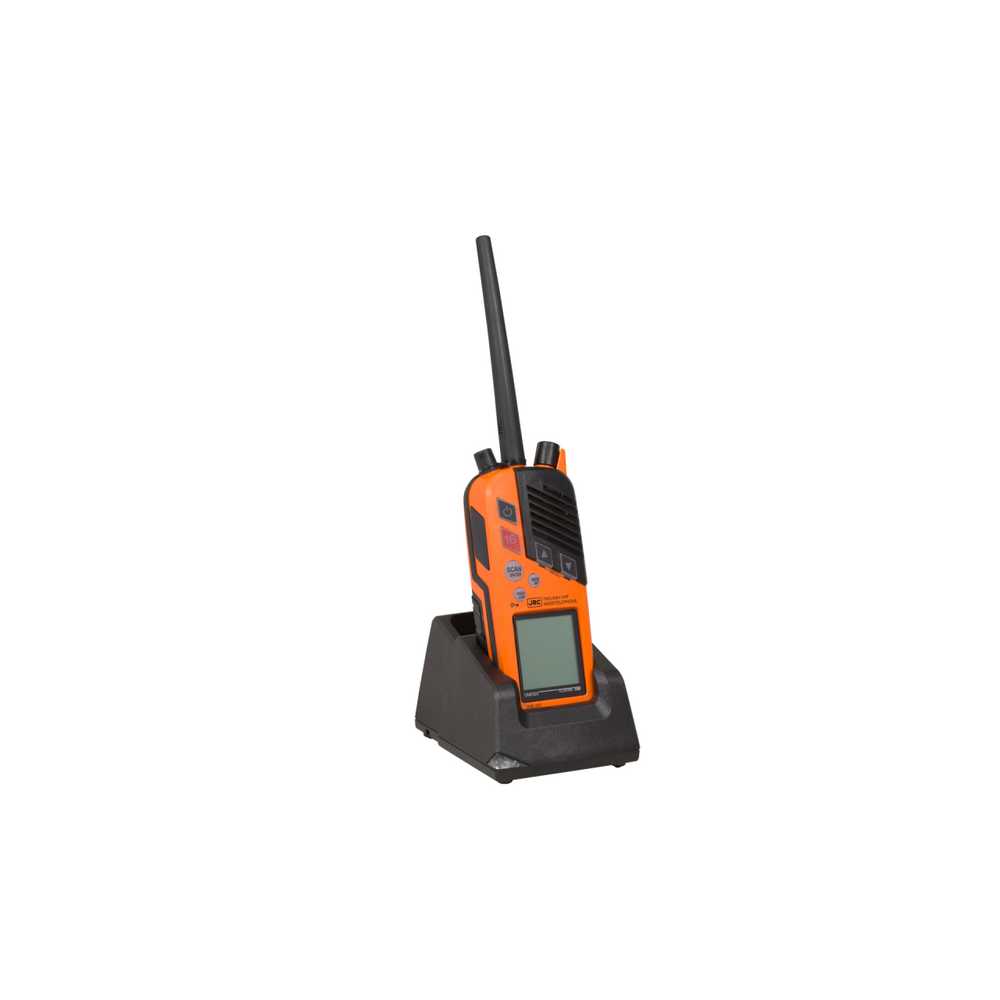

Two-way vhf radiotelephone jhs-207

Floating gmdss two-way vhf radiotelephone:

  • Excellent sound quality under all conditions
  • Intuitive and easy-to-use design, lightweight and compact
  • Depending on the installed battery, automatically switch to emergency mode and regular mode
  • Large-capacity battery pack enables long-time operation of 12 hours
  • Up to 57 channels can be used in regular mode
Request A Quote
Categories: , , , Brand:
  • Innovative Two-in-One Design: The JHS-207 provides access to both standard GMDSS channels and all maritime VHF channels. Its floating design meets GMDSS mounting requirements.
  • Intuitive Design: Compact, lightweight design (0.3 kg including battery) prevents fatigue during prolonged use. Features a small two-positioning charger for easy installation and access to display while charging.
  • Floating Capability: Watertight socket ensures the radio floats without a buoyancy cover. Waterproof accessories are also available.
  • Emergency Mode: Automatic preset emergency mode activates when connected to an emergency battery, reducing manual adjustments and allowing quick access to emergency features.
  • Long Battery Life: Large-capacity battery enables up to 12 hours of operation, ensuring reliable performance during extended use.
  • Full VHF Channels: Supports up to 57 channels, equivalent to marine VHF radiotelephone channels in regular mode.
  • Noise Cancelling: Excellent microphone noise cancellation enhances usability in noisy environments. Supports IP67 speaker microphones and headsets with PTT modules.
  • Technical:
    • Frequency Range: 154.000–157.425 MHz (emergency battery); 154.000–161.875 MHz (rechargeable battery)
    • Channel Spacing: 25 kHz
    • Operating Temperature Range: -20 to +55 ℃
    • Battery Operating Time: 12 hours (emergency battery); 12 hours (rechargeable battery, medium power)
    • Size: 64 mm x 63 mm x 40 mm (Depth with belt clip: 47 mm)
    • Operating Channels: 21 channels (emergency battery); up to 57 channels (rechargeable battery)
    • Mass: Approx. 0.3 kg
  • Receiver:
    • Maximum Usable Sensitivity: < 1 µV at 20 dB SINAD
    • Adjacent Channel Selectivity: > 70 dB
    • Blocking: > 90 dB
    • Spurious Response: > 70 dB
    • Harmonic Distortion: < 5%
    • Intermodulation Rejection: > 68 dB
    • Channel Monitoring: DW (emergency battery); DW/TW/Scan (rechargeable battery)
  • Transmitter:
    • Output Power: Lo: 1 W, Hi: 2 W (emergency battery); Lo: 1 W, Mid: 2 W (default), Hi: 4 W (rechargeable battery)
    • Harmonics and Spurious: < 0.25 µW
    • Frequency Error: Within ±1.5 kHz
    • Adjacent Channel Power: < -70 dBc
  • Approval Standards:
    • EMC/Environmental: IEC 60945 / ETSI EN 301 843-2
    • VHF: IEC 61097-12 / ETSI EN 300 225 (emergency battery); ETSI EN 301 178 (rechargeable battery)
  • Charger:
    • Operating Power Source: 100–240 VAC (with power supply)
    • Mounting: Wall and table mountable
    • Size: 92 mm x 74.5 mm x 114.2 mm
  • Battery:
    • Chemical System: Lithium/Iron Disulfide (emergency battery); Lithium Polymer (rechargeable battery)
    • Voltage: 6 V Nominal (emergency battery); 7.4 V Nominal (rechargeable battery)
    • Capacity: 3000 mAh (emergency battery); 1550 mAh (rechargeable battery)
  • Standard Components:
    • Two-way VHF radiotelephone (Model: JHS-207)
    • Emergency battery (non-chargeable) (Model: NBB-789)
    • Rechargeable battery (Model: NBB-748)
    • Battery charger (Model: NJD101037)
    • Power supply (Model: NJD101038)
    • Instruction manual
